Analog Multimeter, AC/DC
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 3.600 Ft | — |
| 3–4 pcs | 3.420 Ft | 5% (−180 Ft/unit) |
| 5–10 pcs | 3.240 Ft | 10% (−360 Ft/unit) |
| 11+ pcs | 3.060 Ft | 15% (−540 Ft/unit) |

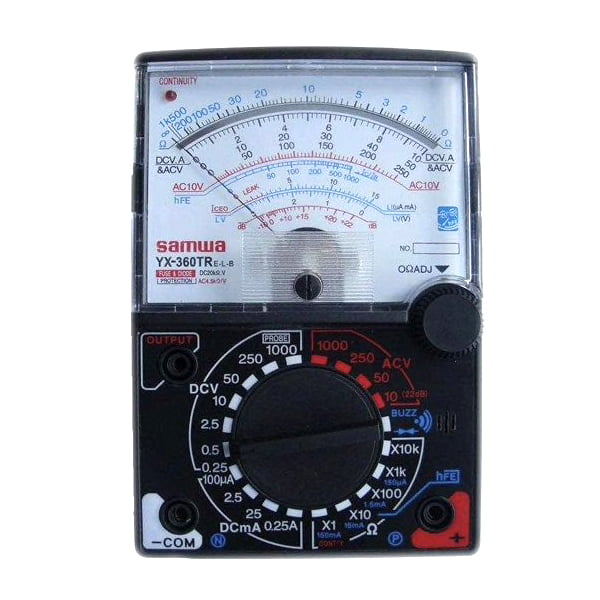

Universal Analog Multimeter for Precise Electrical Measurements
The SAMWA YX-360TR analog multimeter is the ideal compact tool for electricians, technicians, and electronics enthusiasts. It features an analog needle display for quick readings, overload protection, and multiple measurement functions for voltage, current, and resistance. Delivered complete with test leads and an English user manual.
What you get with this product
- Quick visual reading with an analog needle display, ideal for tracking real-time voltage variations
- Measure both AC and DC voltage, direct current, and resistance without changing devices
- Compact pocket size of only 148x100x35mm, take it with you wherever you work

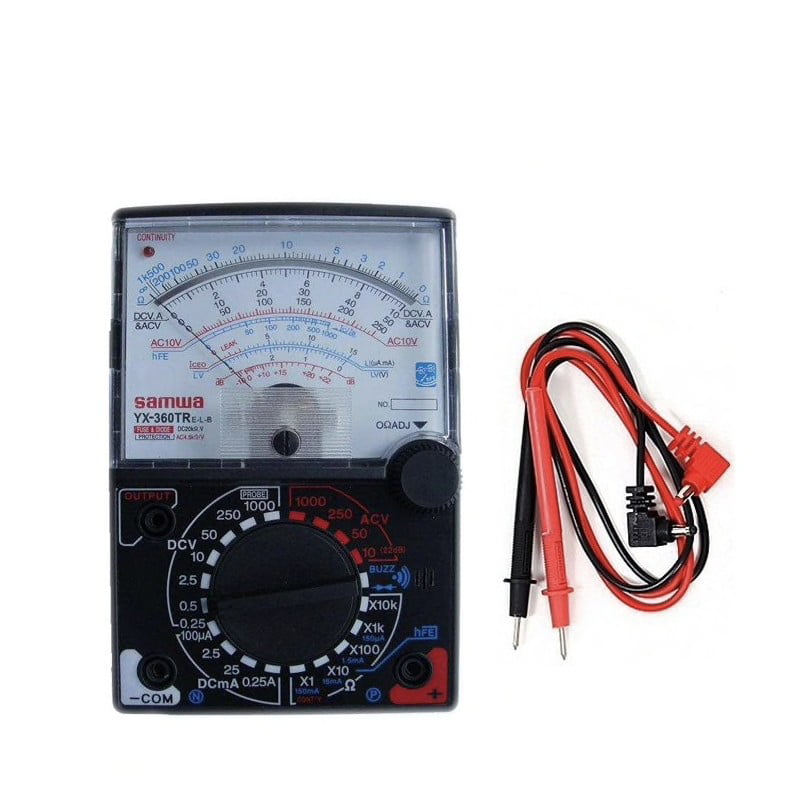

- Complete kit included: professional test leads and instruction manual, ready to use immediately
- Reliable analog display without batteries for voltage measurements, saving you money in the long run
- Robust construction with a durable casing and overload protection for intensive use
How it works and how to install
The multimeter works by connecting the red and black test leads to the device's terminals and to the circuit to be measured. You select the desired function by rotating the central switch to the required measurement range: DCV for direct current voltage, ACV for alternating current voltage, DCA for direct current, or OHM for resistance. The indicator needle on the analog dial immediately displays the measured value on the corresponding scale. No installation required, it's ready to use out of the box.
Frequently asked questions
Does it need batteries for all measurements?
No, AC and DC voltage measurements do not require batteries. Batteries are only needed for resistance measurement and transistor testing.
Can it measure 220V outlet voltage?
Yes, the ACV range goes up to 1000V, so you can safely measure 220V outlet voltage on the corresponding scale.
Is it suitable for electronics beginners?
Yes, the analog display is easy to read and helps understand voltage variations, and the included manual explains the use of each function.
Technical specifications
| Model | SAMWA YX-360TR |
| Display type | Analog with needle |
| DC Voltage | 100mV - 1000V, accuracy ±4% |
| AC Voltage | 10V - 1000V, accuracy ±5% |
| DC Current | 50µA - 250mA, accuracy ±4% |
| Resistance | 2kΩ - 20MΩ, accuracy ±4% |
| Transistor testing | hFE 0-1000 with TR connector |
| Decibels | -10dB to +62dB |
| Power supply | 2x 1.5V R6 batteries + 1x 9V (optional) |
| Dimensions | 148 x 100 x 35 mm |
| Weight | Approximately 200g |

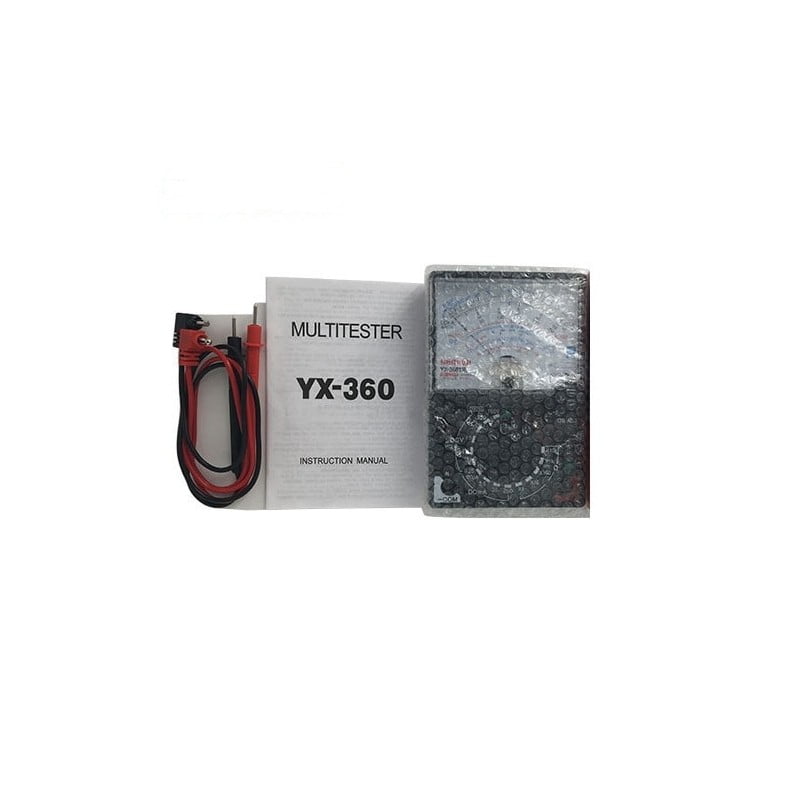

| Package contents | Multimeter, test leads, manual |
Warranty and support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. You have the right to return within 30 days of purchase if the product does not meet expectations. Fast delivery by national courier throughout Romania.
