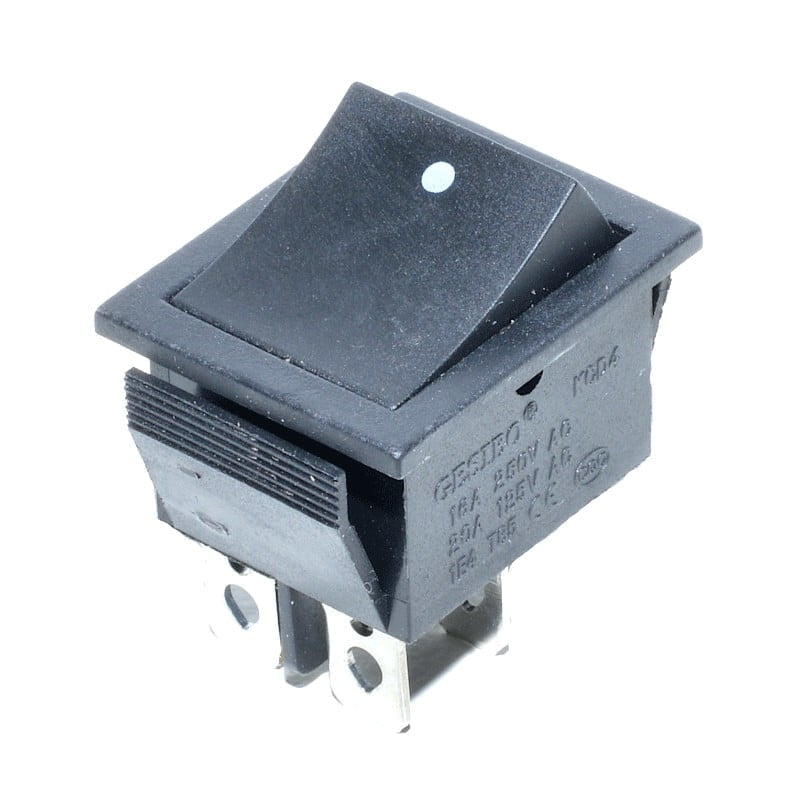

ON/OFF Rocker Switch 16A-250V KCD4
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 500 Ft | — |
| 3–4 pcs | 475 Ft | 5% (−25 Ft/unit) |
| 5–10 pcs | 450 Ft | 10% (−50 Ft/unit) |
| 11+ pcs | 425 Ft | 15% (−75 Ft/unit) |
Momentary ON/OFF Switch for Industrial and Domestic Applications
This KCD4 push-button switch with 4 contacts and automatic return is the professional solution for controlling electrical circuits at 16A and 250V AC. Designed for durability and safety, it integrates quickly into control panels, machine tools, water pumps, or other electrical equipment requiring momentary operation.
What you get with this product
- Safe control at loads up to 16A — supports electric motors, pumps, and professional tools without overheating
- Automatic return to initial position — ideal for applications where momentary action is needed, without manual holding
- Quick panel-mount installation — standard dimensions 31x25mm, stable fastening in maximum 2 minutes
- Robust construction from plastic and metal contacts — withstands intensive use in industrial environments and workshops
- Maximum versatility — works perfectly at 125V or 250V AC, compatible with automotive, marine, and household equipment
- Clear and firm contact when pressed — mechanism tested for thousands of cycles, without play or false actuation
How it works and how to install it
The switch operates by pressing the button, making electrical contact between the 4 metal terminals, then automatically returns to the OFF position when you release pressure. For installation, make a rectangular hole of 31x25mm in your panel, insert the switch, and secure it with the included side clips. Connect the wires to the metal terminals according to your electrical diagram, observing the 16A at 250V AC capacity. No special tools are needed — a screwdriver and a precise cutout are sufficient.
Frequently asked questions
Can I use this switch for a 2000W motor at 220V?
Yes, a 2000W motor draws approximately 9A at 220V, so the 16A switch will support it without problems. Make sure you use appropriate cables for the respective current.
What exactly does automatic return mean?
It means that the button activates the circuit only as long as you press it. When you release the pressure, the button mechanically returns to the OFF position, and the circuit automatically breaks.
Can it be mounted on a metal panel or only plastic?
It can be mounted on any type of panel — plastic, metal, wood, or fiber — as long as the panel thickness allows the side clips to be fastened, typically between 1-5mm.
Technical Specifications
| Model | KCD4 Black with return |
| Contact type | ON/OFF with automatic return (I-0) |
| Number of contacts | 4 metal terminals |
| Rated voltage | 125V AC / 250V AC |
| Maximum current | 20A at 125V, 16A at 250V |
| Overall dimensions | 31 x 25 x 32 mm |
| Body material | Durable plastic and metal contacts |
| Actuation type | Momentary push button |
| Recommended amperage | 16A |
Warranty and support
The product benefits from a 24-month warranty according to current Romanian legislation. You have the right to return the product within 30 days of receipt, without justification. Delivery is made quickly by national courier, with confirmation via SMS or email.
