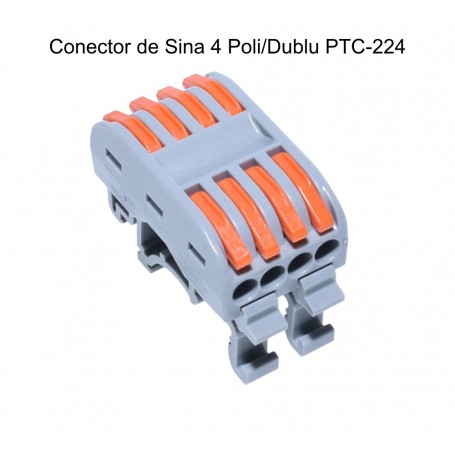

4-Pole/Double PCT-224 Rail Connector
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 500 Ft | — |
| 3–4 pcs | 475 Ft | 5% (−25 Ft/unit) |
| 5–10 pcs | 450 Ft | 10% (−50 Ft/unit) |
| 11+ pcs | 425 Ft | 15% (−75 Ft/unit) |

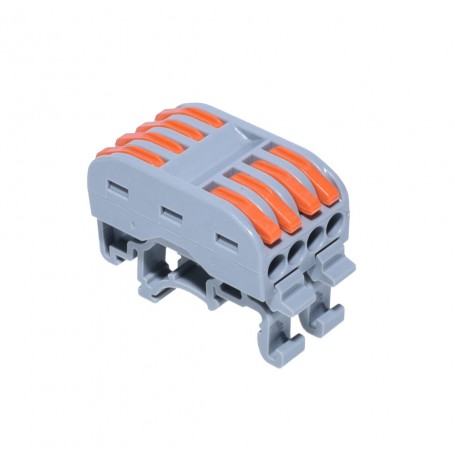

Dual 4-pole DIN Rail Connector for Professional Installations
This PCT-224 dual 4-pole connector radically simplifies cable connection in the electrical panel, eliminating the need for soldering or improvised solutions. Mounted directly on the DIN rail, it allows for secure and quick connections for cables between 0.2-4mm, making it the professional solution for domestic and industrial installations. Silver-plated brass contacts ensure excellent conductivity and long-term corrosion resistance.
What you get with this product
- Tool-free connection — press the orange lever, insert the cable, and the fastening is instant and secure
- Direct DIN rail mounting — attaches in seconds to standard panel rails, without screws or adapters
- Quick voltage check — dedicated slot for tester, eliminates guesswork during troubleshooting
- Flexible configuration — you can connect multiple connectors side by side to build a customized terminal block
- Dual connections on the same connector — connect 4 input and 4 output cables simultaneously, saving space in the panel
- Temperature safety — flame-retardant plastic and silver-plated brass contacts withstand 600V and 32A without degradation
How it works and how to install it

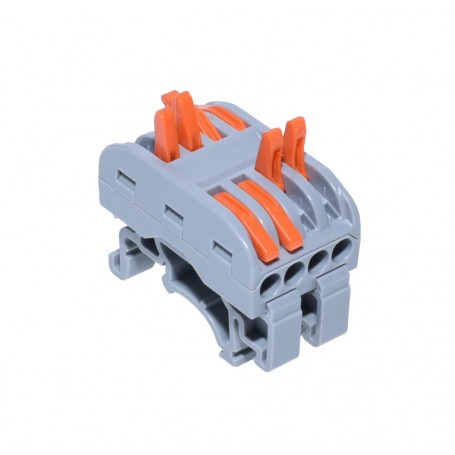

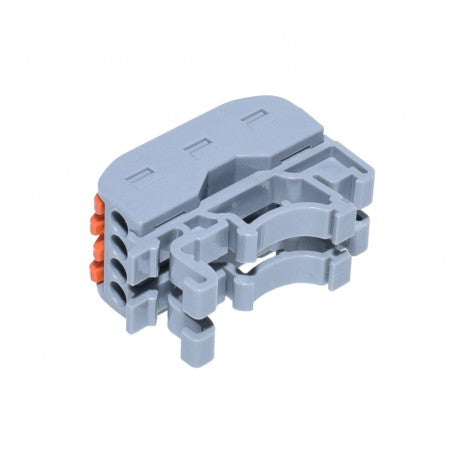

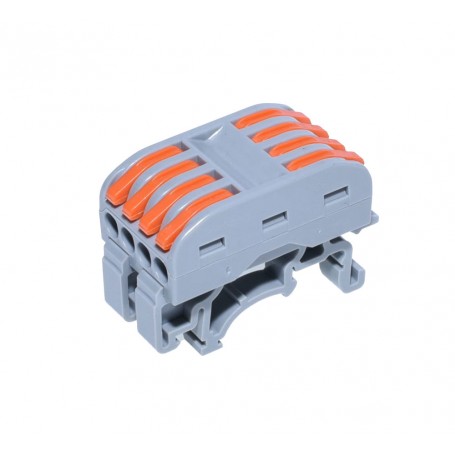

The connector clips directly onto the standard DIN rail in the electrical panel — the fastening is mechanical, without screws. To connect the cables, lift the orange lever, insert the stripped cable into the corresponding hole, then lower the lever, which applies controlled pressure and locks the cable. The spring mechanism guarantees permanent contact, even in vibrating conditions. You can test for voltage by inserting a tester tip into the side control slot, without disconnecting the cables.
Frequently asked questions
Can it be used for solid wire, not just stranded?
Yes, the PCT-224 connector works with both stranded and rigid solid conductors, in the 0.2-4mm diameter range.
How difficult is it to remove a cable after it has been connected?
Simple: lift the orange lever again, and the cable comes out freely, without damage. You can reconnect dozens of times without wear.
Does the connector heat up at the maximum load of 32A?
No, the silver-plated brass contacts have minimal electrical resistance. When used correctly within parameters, the temperature remains within normal limits.
Technical specifications
| Model | PCT-224 |
| Number of contacts | 4 input poles + 4 output poles (dual) |
| Maximum voltage | 600V |
| Maximum current | 32A |
| Accepted cable cross-section | 0.2-4mm |
| Housing material | Flame-retardant ABS |
| Contact material | Silver-plated brass |
| Mounting | Standard DIN rail |
| EAN | 0781499707280 |
Warranty and support
The product benefits from a 24-month warranty according to Romanian legislation. 30-day return policy. Fast delivery by courier with email and SMS confirmation.
