Motor Start Capacitor 10uF/450V AC
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 1.000 Ft | — |
| 3–4 pcs | 950 Ft | 5% (−50 Ft/unit) |
| 5–10 pcs | 900 Ft | 10% (−100 Ft/unit) |
| 11+ pcs | 850 Ft | 15% (−150 Ft/unit) |
10uF/450V Motor Start Capacitor for Home and Industrial Equipment
This start capacitor ensures optimal operation of electric motors in your home or industrial appliances. Compatible with air conditioners, compressors, water pumps, and fans, it offers long-term reliability at an affordable price. Compact dimensions and quick installation via male spade terminals.
What you get with this product
- Immediately restart faulty equipment — replace the worn capacitor in a maximum of 10 minutes, without calling a technician
- Wide compatibility with most electric motors — works with air conditioners, refrigerators, compressors, water pumps, and fans
- Guaranteed durability with self-healing polypropylene dielectric — withstands overvoltages and temperatures up to 85°C
- Secure installation with 4 male spade terminals and mounting screw — stable mounting on any type of metal or plastic support
- ISO 9001 quality certification and UL 94 V-2 flammability class — safe component for use in any environment
- Save money and time — at a quarter of the cost of a new motor or a service intervention
How it works and how to install it
The capacitor stores electrical energy and releases it quickly to provide the necessary impulse for starting the electric motor. Installation is done by connecting the 4 male spade terminals to the motor terminals, observing the polarity indicated in the appliance's electrical diagram. The included screw with nut allows the capacitor to be fixed to the original support or any other stable surface. No special tools are needed — just a screwdriver for connections and a wrench for fastening.
Frequently asked questions
How do I know if the old capacitor is faulty?
Common signs include: the motor doesn't start, a buzzing sound, a swollen capacitor, or visible leaks on the casing. Testing with a multimeter confirms the defect.
Can I use this capacitor with any household electric motor?
Yes, if the motor requires a 10uF capacitor and operates at 230V AC. Check the motor label or the old capacitor for exact specifications.
What does a 5% capacitance tolerance mean?
It means that the actual value can vary between 9.5uF and 10.5uF, a normal variation in the industry that does not affect motor operation.
Technical specifications
| Model | CBB60-P10 |
| Capacitance | 10uF |
| Capacitance tolerance | ±5% |
| Rated voltage | 450V AC |
| Maximum operating voltage | 400V/450V/500V AC (gradual operation) |
| Frequency | 50-60Hz |

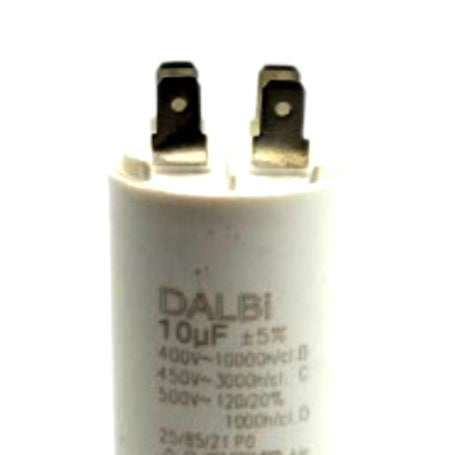

| Contact type | 4 male spade terminals |
| Operating temperature | -40°C ~ +85°C |
| Dielectric | Self-healing SH polypropylene |
| Dissipation factor | ≤0.002 (1KHz, 20°C) |
| Insulation resistance | ≥3000S |
| Terminal-to-terminal voltage resistance | 2 x Rated voltage |
| Terminal-to-case voltage resistance | Minimum 2000V AC (1 min) |
| Flammability class | UL 94 V-2, 750°C (RTI) |
| Certification | ISO 9001:2008 |
| Shape | Cylindrical |
| Casing material | Plastic |
| Mounting | Screw with nut included |
| EAN | 0781 |
