Relay 12V-AC, Electromagnetic, 11 Pin, With socket
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

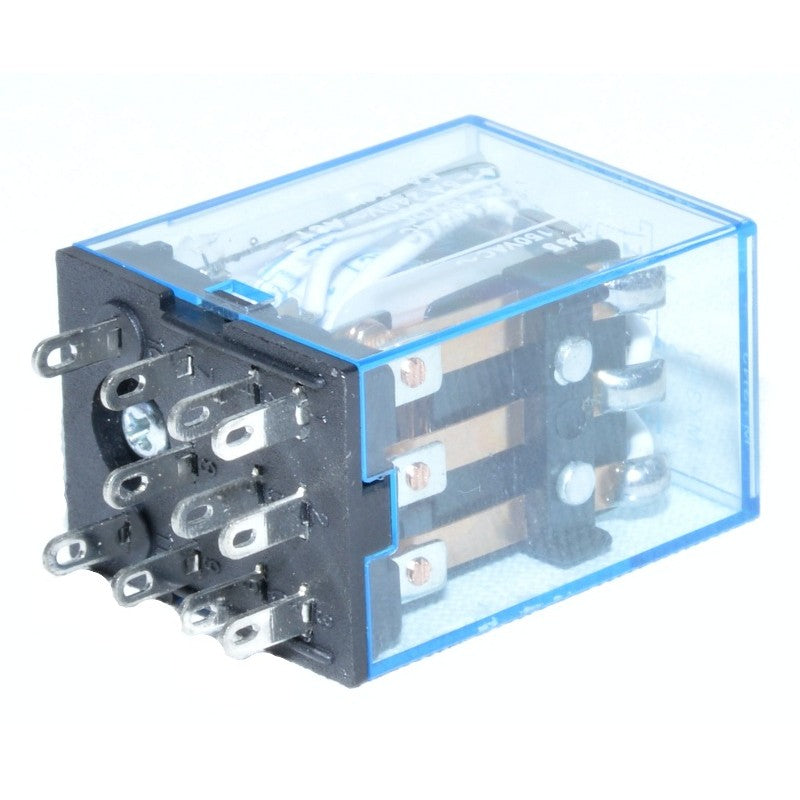

12V AC Electromagnetic Relay with 11 Pins and Included Socket
This 12V AC electromagnetic relay with a mounted socket offers fast and reliable switching for industrial or domestic control circuits. Ideal for electrical equipment protection, automation, and start-stop systems, the relay comes fully equipped and ready for installation. Robust construction with a transparent housing for visual monitoring of contacts.
What you get with this product

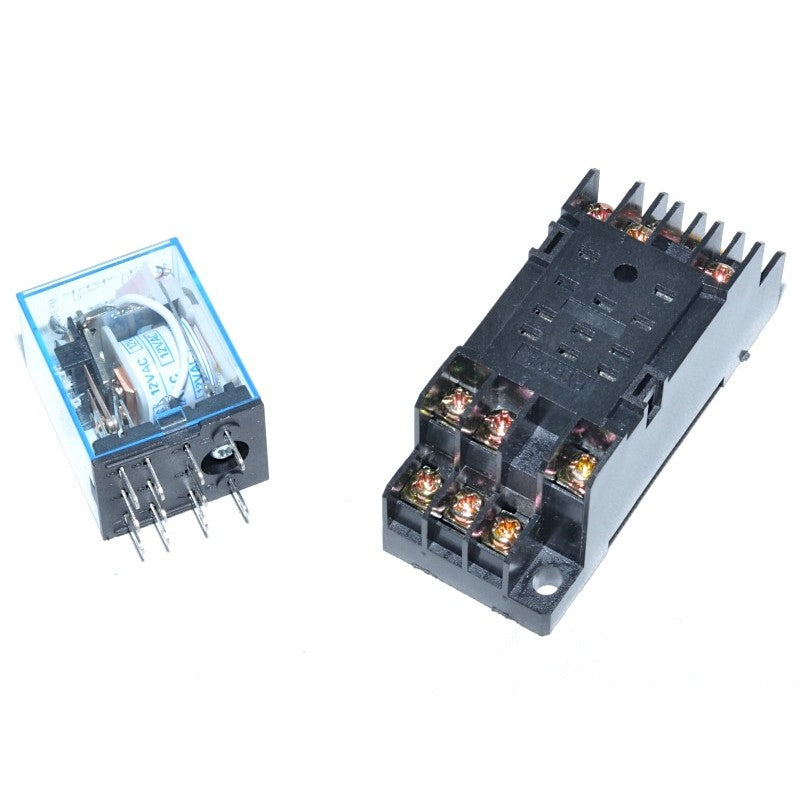

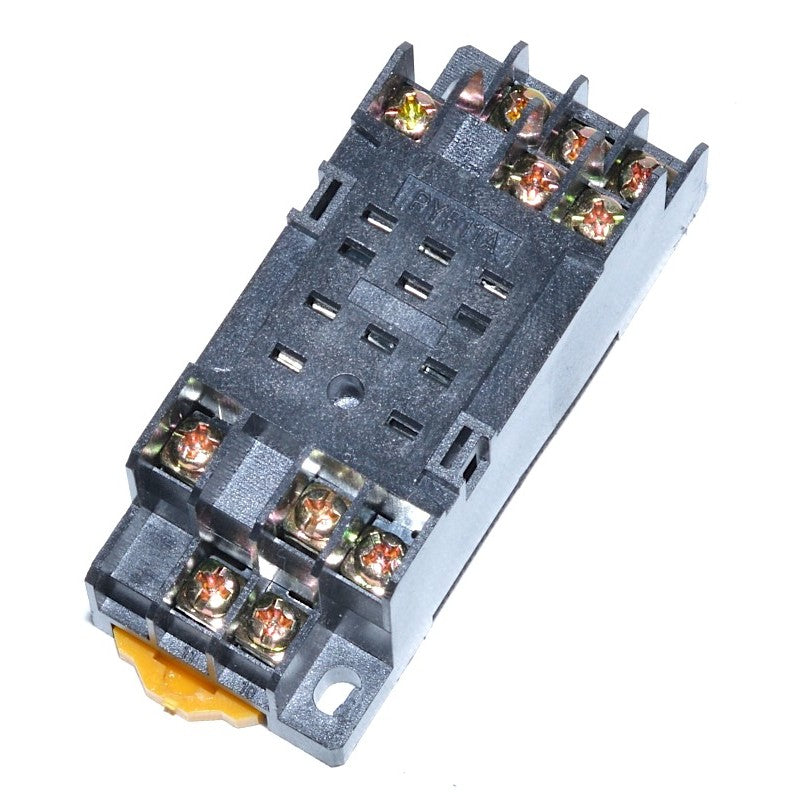

- PYF11A socket included in the price — saves time and costs of separate purchase
- Fast switching in 0.3 milliseconds — instantaneous response to electrical commands
- Transparent housing with blue cover — visually check contact status without disassembly
- Rated current 5A per contact — suitable for various automation applications
- Compact dimensions 20x26x35mm — easily integrates into crowded electrical panels

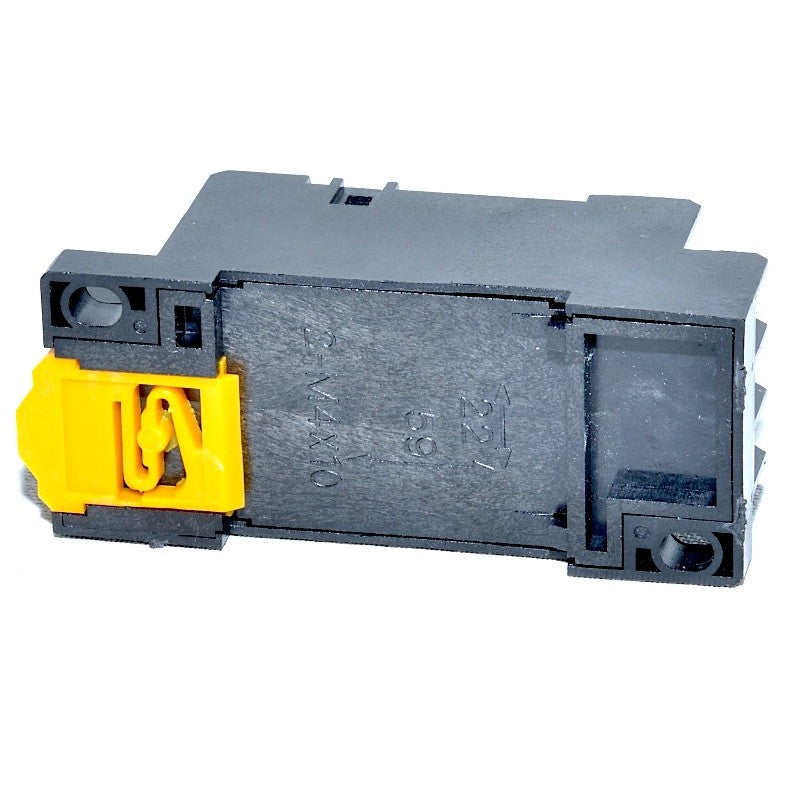

- Simple mounting on rail or with screws — installation flexibility according to available space
How it works and how to install it

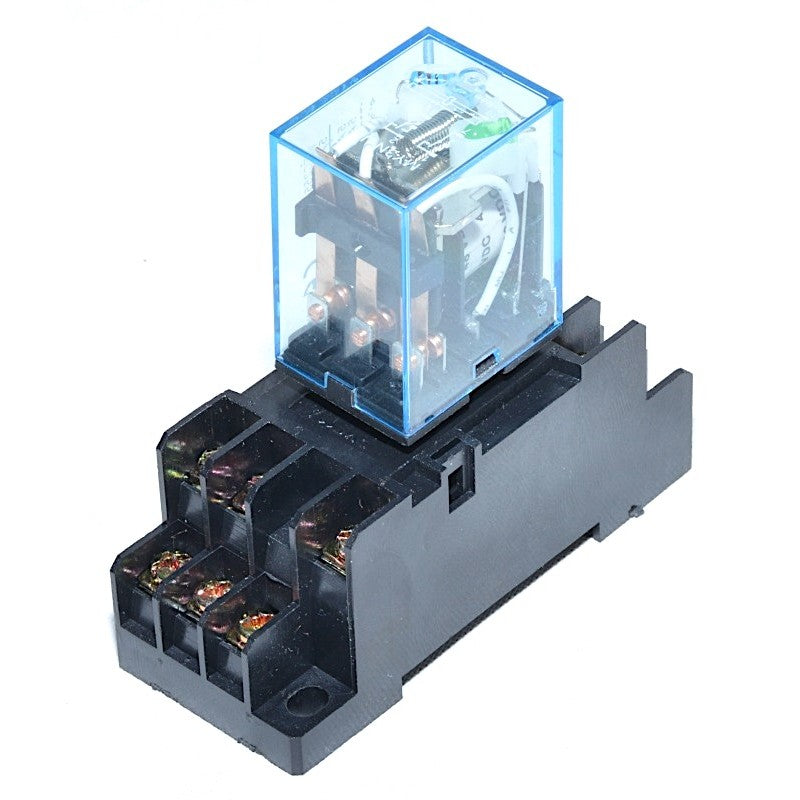

The relay operates on the electromagnetic principle: when a 12V AC voltage is applied to the coil, the contacts switch instantly, allowing or interrupting the current flow through the controlled circuit. The included PYF11A socket is fixed to a DIN rail or with screws in the electrical panel, then the relay is simply inserted into the socket by pressing until it is securely fastened. Electrical connections are made via the screw terminals on the socket, with each pin clearly marked.
Frequently Asked Questions
Is an authorized electrician required for installation?
Yes, installation must be performed exclusively by authorized personnel, in accordance with current electrical safety regulations.
Is the socket compatible with other relay models?
The PYF11A socket is standard for 11-pin relays of similar configuration, but check the dimensions and pin configuration before replacement.
Can I use the relay in wet or outdoor environments?
No, the relay is designed for installation in indoor electrical panels, protected from humidity and extreme conditions.
Technical Specifications
| Coil voltage | 12V AC |
| Number of contacts | 11 pins |
| Rated current | 5A |
| Frequency | 50Hz |
| Response time | 0.3 ms |
| Relay dimensions | 20 x 26 x 35 mm |
| Socket dimensions | 22 x 59 x 30 mm |
| Socket type | PYF11A (included) |
| Housing material | ABS |
| Mounting | Screw / DIN Rail |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian legislation. A 30-day return policy allows the product to be returned if it does not meet expectations. Fast delivery by national courier with full tracking for every order.
