Non-Latching Square Push Button 12x37mm
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

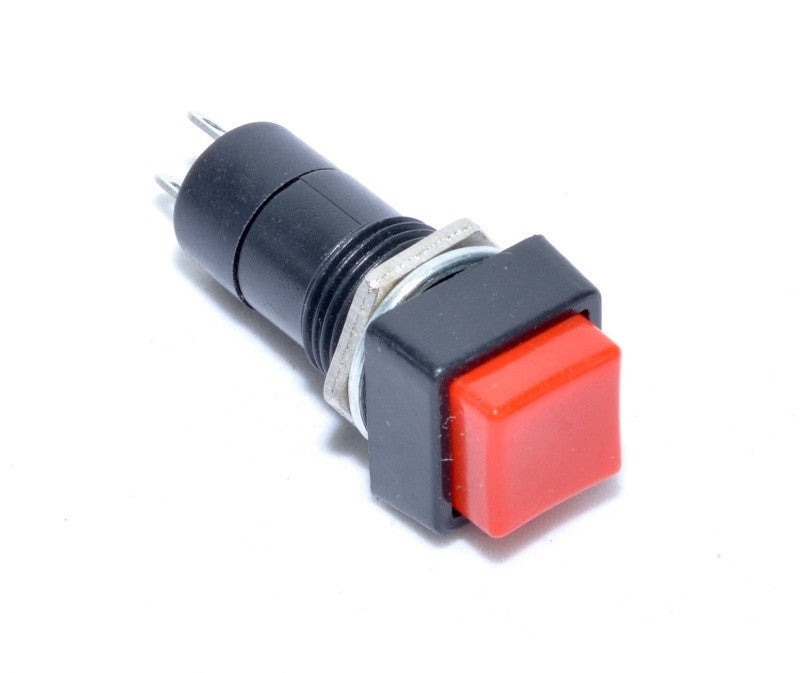

Square Push Button (Momentary) for Electrical Appliances
The 12x37mm square momentary push button is a momentary switching component, suitable for replacing or integrating into household appliances, electronics, and industrial equipment for current use. With a compact design and a robust plastic body, this button offers clear action upon pressing and immediate return after release. The supported voltage of 250V AC at 3A makes it compatible with most household and semi-industrial applications.
What you get with this product
- Quick replacement of a faulty button — standard 12x37mm dimensions fit most existing enclosures without modifications
- Precise momentary action — the button automatically returns to its initial position upon release, without accidental locking
- Compatible with voltages up to 250V AC at 3A — works safely in coffee makers, kettles, clippers, portable speakers, and other similar appliances
- Simple screw-in mounting — it attaches directly to the appliance panel with the included nut, no special tools required
- Red square cap with good visibility — easy to identify and operate, useful in panels with multiple buttons
- 2-contact construction — direct connection, simple schematics, no additional configuration
How it works and how to install it
The momentary push button works on the principle of momentary contact: when the red square cap is pressed, the circuit closes, and upon release, it automatically returns to the normally open state. Installation is done by inserting the button body into a 12mm hole drilled in the appliance panel, then tightening the fixing nut on the back. The two terminals are connected in series with the control circuit using a conductor appropriate for the load.
Frequently Asked Questions
What diameter hole do I need in the panel to mount this button?
The required hole in the panel is 12mm, corresponding to the cylindrical body diameter of the button.
Does the button stay pressed or does it return automatically after I release it?
It returns automatically — it is a momentary (non-latching) button; contact is maintained only as long as it is pressed.
Can this button be used with appliances powered directly from a 220V outlet?
Yes, the button supports 250V AC at a maximum current of 3A, so it is compatible with the 220-230V mains voltage used in Romania.
Technical Specifications
| SKU | Q-6D023 |
| Dimensions | 12x37mm |
| Max Voltage | 250V AC |
| Max Current | 3A |
| Action Type | Momentary (non-latching) |
| Number of Contacts | 2 |
| Button Cap Shape | Square |
| Cap Color | Red |
| LED Illumination | No |
| Package Contents | 1 x Square Momentary Push Button 12x37mm |
Warranty and Support
The product benefits from a 2-year warranty according to current Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is carried out quickly by courier throughout Romania.
