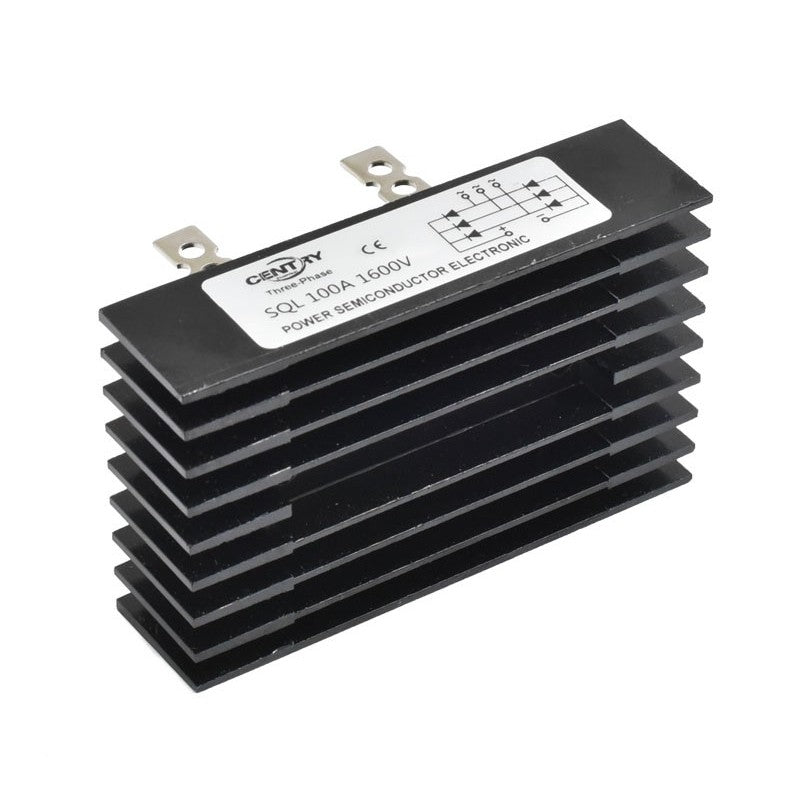

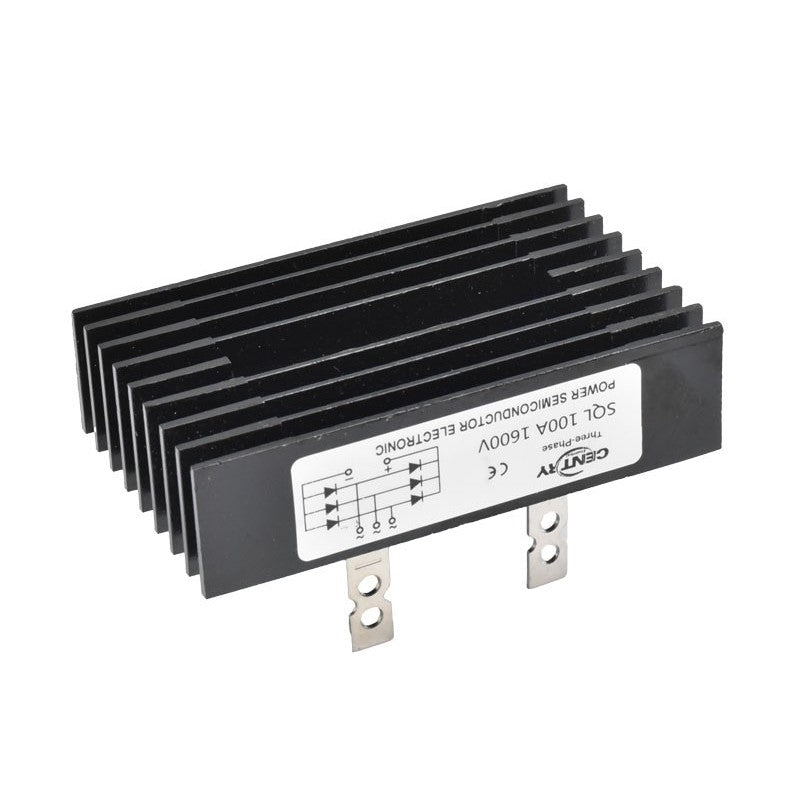

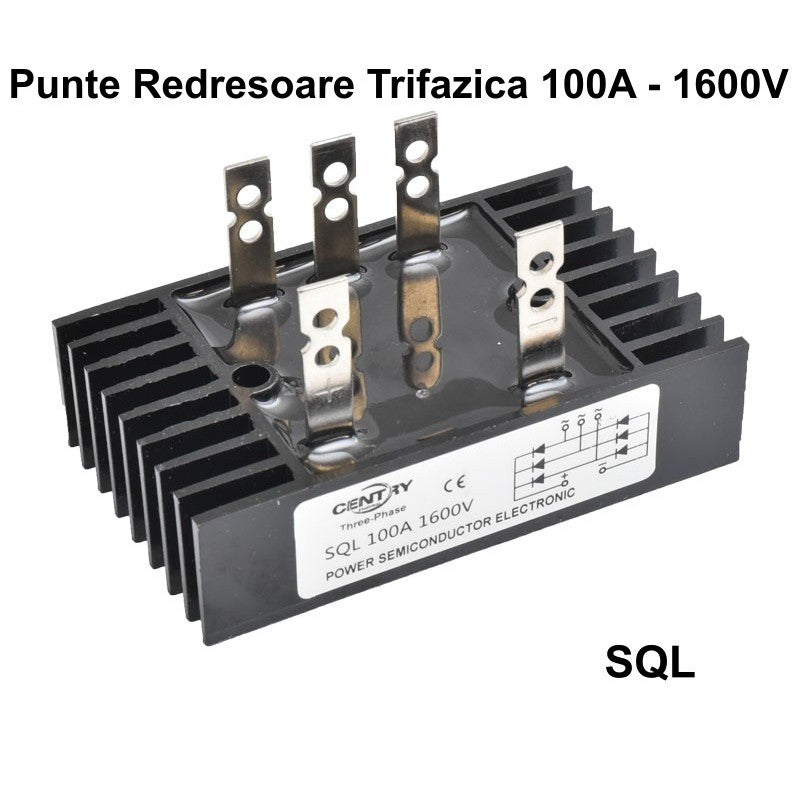

Three-Phase Bridge Rectifier 100A - 1600V / SQL-10016
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Professional Three-Phase Bridge Rectifier for Efficient AC-DC Conversion
This SQL-10016 three-phase bridge rectifier converts three-phase alternating current into direct current, designed for industrial applications requiring high power and reliability. Its 100A capacity and maximum voltage of 1600V make it ideal for production equipment, welding, renewable energy systems, and galvanizing applications. The robust construction with an aluminum heat sink ensures efficient heat dissipation even under continuous load conditions.
What you get with this product
- Efficient conversion of three-phase AC current to DC for industrial equipment and high-power motors
- High capacity of 100A and maximum voltage of 1600V, suitable for demanding professional applications

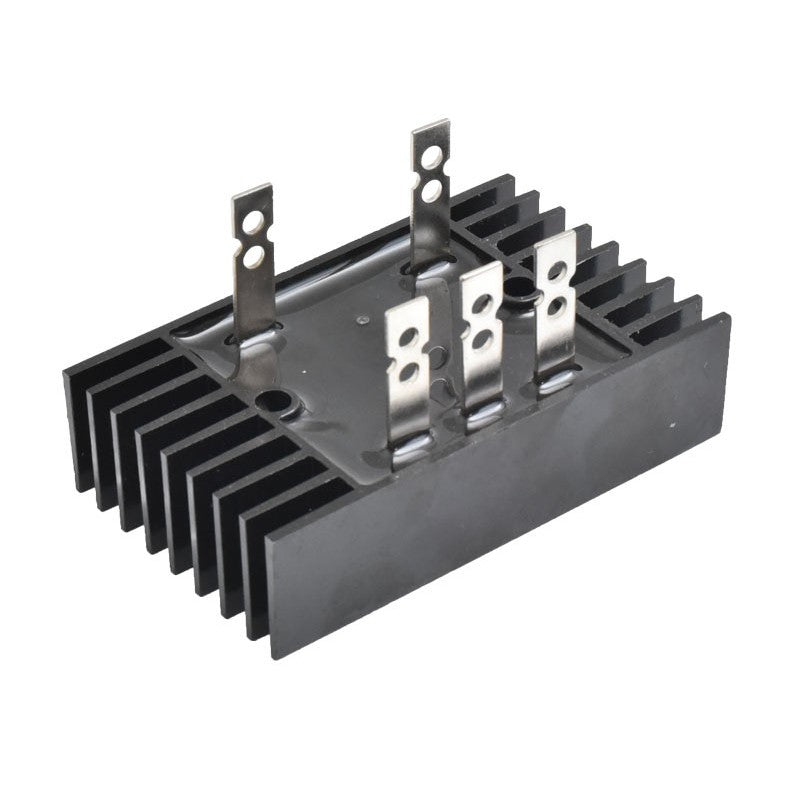

- Integrated aluminum heat sink that maintains optimal temperature and extends component lifespan
- Robust construction with metal casing and high-capacity connectors for safe long-term installations
- Compatibility with renewable energy systems, charging stations, and industrial welding equipment
- 5-connector configuration for easy integration into electrical panels and complex power supply systems
How it works and how to install it
The bridge rectifier uses 6 diodes arranged in a three-phase configuration to allow current to flow only in the direction necessary to obtain DC voltage. The three phases of the alternating current connect to the input terminals, and a pulsating direct current is obtained at the output. Installation is carried out by mounting it on the mounting surface with screws, connecting the input phases and the DC output terminals, following the provided wiring diagram. The aluminum heat sink must be mounted in a position that allows air circulation for natural cooling.
Frequently asked questions
Does it need additional cooling or is the integrated heat sink sufficient?
The aluminum heat sink is sufficient for normal operation, but for sustained loads near maximum capacity, it is recommended to install it in a ventilated area or with forced ventilation.
Can it be used for conversion from solar or wind energy?
Yes, it is compatible with wind turbines or three-phase inverters, making it ideal for converting power to DC for battery charging or other off-grid applications.
How complicated is the installation for someone experienced in electrical installations?
Installation is straightforward for experienced electricians: mechanical fastening, connecting input phases and DC output terminals according to the diagram. The connection diagram is marked on the product casing.
Technical specifications
| Model | SQL-10016 |
| Maximum current | 100A |
| Maximum voltage | 1600V |
| Conversion type | Three-phase AC - DC |
| Number of phases | 3 |
| Number of connectors | 5 |
| Casing material | Aluminum |
| Dimensions | 98 x 60 x 53 mm |
| Cooling system | Passive aluminum heat sink |
Warranty and support
The product benefits from a 24-month warranty according to current Romanian legislation, with the possibility of return within 30 days of receipt. Delivery is fast via national courier, with secure packaging for the protection of sensitive electronic components.
