SMD LED Board 75 X 75 X 90 Pcs 12V / Power 70W
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

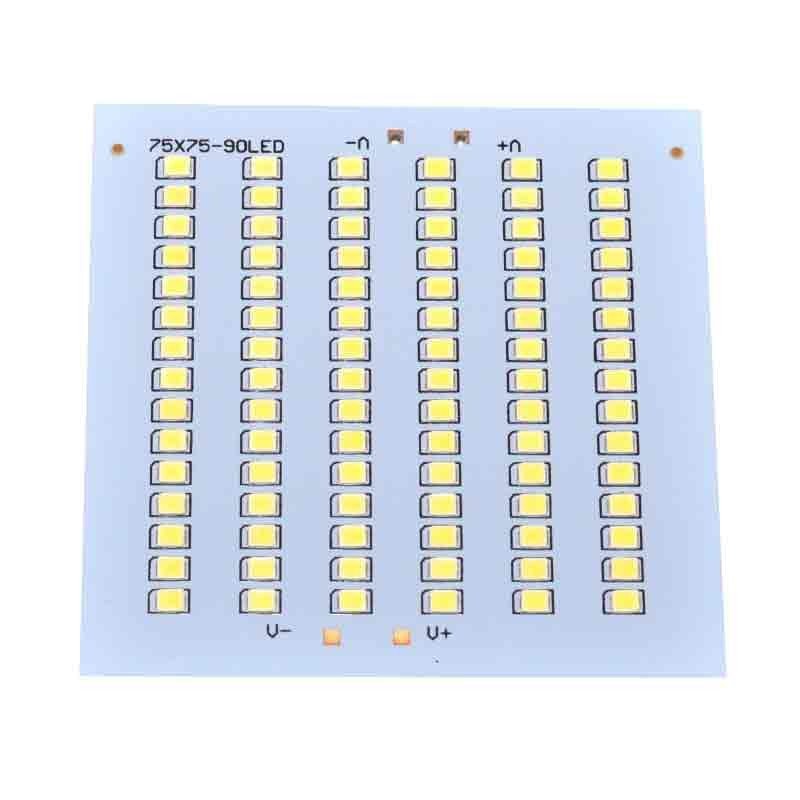

70W SMD 2835 LED Board for 12V Lighting Projects
The SMD 2835 LED board in a 75x75 mm format with 90 integrated chips is the compact solution for building or replacing light sources in floodlights, industrial spotlights, or DIY applications. Powered at 12V DC, it provides a uniform luminous flux at a 6500K cool white color temperature, suitable for workshops, warehouses, or technical installations. The aluminum-based substrate ensures efficient heat dissipation, extending the lifespan of the chips.
What you get with this product
- Powerful 70W illumination from a compact 75x75 mm module — high luminous density in a small space
- Directly compatible with 12V DC sources — simple integration into existing systems without additional components
- 90 uniformly distributed SMD 2835 chips — homogeneous light without dead spots or darker areas
- 120-degree emission angle — wide coverage of the illuminated surface without flux loss
- 1.3 mm thick aluminum substrate — efficient thermal dissipation that protects the LEDs during continuous operation
- 6500K cool white color temperature — high contrast, ideal for workspaces, technical, or industrial environments
How it works and how to install it
The board connects directly to a 12V DC power source via the V+ and V- terminals, visible on the PCB. For optimal operation and extended lifespan, mounting on a passive or active heatsink is recommended, considering the 70W dissipated power. Mechanical fixing is done through the four corner holes of the board, without requiring specialized tools.
Frequently Asked Questions
Do I need a separate LED driver, or does it work directly with 12V?
The board operates directly with constant 12V DC, so a stabilized 12V power supply with a minimum of 6A is sufficient — a constant current driver is not necessary.
Is mounting on a heatsink mandatory?
Yes, at 70W power, using a heatsink is mandatory to prevent overheating. Without adequate thermal dissipation, the lifespan of the LEDs decreases significantly.
Can it replace a faulty COB module from an existing floodlight?
Yes, if the 75x75 mm dimensions and 12V voltage match the original floodlight's specifications, the board can be used as a direct replacement.
Technical Specifications
| SKU | Q-20C012 |
| LED Type | SMD 2835 |
| Supply Voltage | 12V DC |
| Total Power | 70W |
| Number of LED Chips | 90 pieces |
| Color Temperature | 6500K (cool white) |
| Emission Angle | 120 degrees |
| LED Chip Size | 2.8 x 3.5 mm |
| Board Dimensions | 75 x 75 x 1.3 mm |
| Substrate | Aluminum |
| Package Contents | 1 x SMD LED Board 75x75 90 pcs |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns are accepted within 30 days from the date of package receipt, without requiring justification. Delivery is made via fast courier within Romania.
