Limit Switch ME-8166, 5A, Voltage 250V AC
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

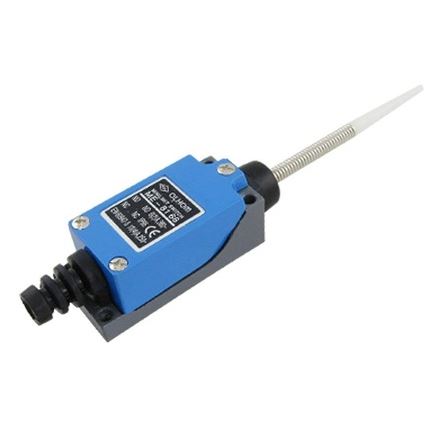

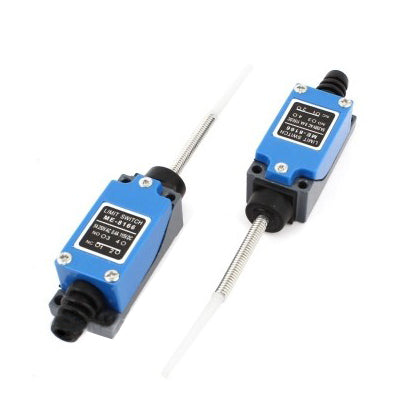

ME-8166 Industrial Limit Switch for Automation and Machinery
ME-8166 limit switch with flexible metal rod, designed for precise control of industrial equipment and automation. The professional solution for automatic doors, machine tools, production lines, and access systems, featuring SPDT contact and resistance to intensive use.
What you get with this product
- Precise equipment control — flexible rod with automatic reset detects exact position and switches instantly
- Quick installation on any surface — pre-marked mounting holes at 56x21mm, stable fixation in 10 minutes
- Universal compatibility — works on both 250V AC and 115V DC current
- Durability in industrial conditions — robust plastic and metal housing resists shocks and constant vibration
- Increased safety — 1NC+1NO double contact allows complex configurations with redundancy
- Maximum versatility — suitable for garage doors, automatic gates, milling machines, lathes, assembly lines, and cable cars
How it works and how to install it
The switch is mounted using the two fixing holes at a standard distance of 56x21mm. The 85mm flexible metal rod is actuated by physical contact — when bent, the contact switches instantly and automatically returns to its initial position after release. It connects via three terminals: common, normally closed, and normally open. It works without additional settings, suitable for direct integration into automation circuits or control systems.
Frequently asked questions
What does 1NC + 1NO contact mean and how do I use it?
NC (normally closed) means the contact is closed at rest, NO (normally open) means it is open at rest. Upon actuation, NC opens and NO closes simultaneously, offering flexibility for various circuit configurations.
Can I use the switch with 12V or 24V DC voltage?
Yes, it works perfectly on DC voltages up to 115V, including 12V and 24V, with a maximum current of 0.4A for DC applications.
Does the metal rod return to position by itself or does it stay bent?
The rod has an automatic reset — it returns to the vertical position by itself immediately after the obstruction disappears, without manual intervention.
Technical specifications
| Model | ME-8166 |
| Contact type | 1NC + 1NO (SPDT) |
| Rated voltage | 250V AC / 115V DC |
| Maximum current | 5A (AC) / 0.4A (DC) |
| Actuator type | Flexible rod with automatic reset |
| Rod length | 85 mm |
| Rod diameter | 6 mm |
| Body dimensions | 88 x 28 x 26 mm (L x W x H) |
| Mounting hole distance | 56 x 21 mm |
| Mounting hole diameter | 4.4 mm |
| Housing material | Plastic and metal |
| Action | Momentary |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. 30-day return policy for unused products. Fast delivery by national courier with telephone confirmation.
