Rocker Switch IRS Lat ON-OFF-ON 220V/15A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

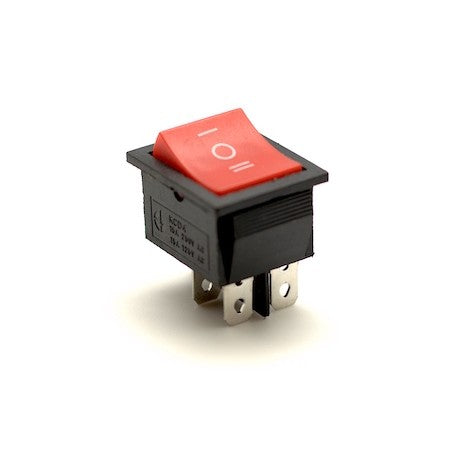

3-position switch for precise control of electrical circuits
This IRS ON-OFF-ON switch offers flexible control for two independent circuits, ideal for machine tools, industrial machinery, pumps, and automotive applications. It supports loads up to 15A at 220V AC, ensuring safe operation under various conditions.
What you get with this product
- Independent control of two electrical circuits with a single button — saves space on the control panel
- Quick installation in a standard cutout — installs in minutes without specialized tools
- Stable operation with loads up to 15A — suitable for electric motors, pumps, and professional tools
- Central OFF position for safety — completely isolates the circuit when the equipment is not in use
- Robust construction from heat-resistant plastic and metal contacts — resistant to wear in industrial environments
- Versatile use — compatible with home, automotive, marine, and industrial equipment applications
How it works and how to install it
The switch operates in three positions: the first position (I) activates one circuit, the central position (0) turns off both circuits, and the third position (II) activates the second circuit. Installation is done by inserting it into the standard panel cutout, securing it with the included nut, and connecting the 4 contacts with a width of 6.3mm according to the electrical diagram. No advanced electrical knowledge is required — just follow the simple connection diagram and secure the conductors to the clip contacts.
Frequently Asked Questions
Can I use this switch for a 2kW electric motor?
Yes, the switch supports up to 15A at 220V AC, which means approximately 3.3kW maximum power. For motors with high starting current, check the actual power consumption of the motor.
What does the ON-OFF-ON configuration mean and how does it differ from a simple switch?
The ON-OFF-ON configuration allows control of two different circuits: position I activates the first circuit, position 0 turns everything off, position II activates the second circuit. It is useful when you want to switch between two functions or directions of rotation.
What cutout size is required for installation?
The switch is mounted in a standard cutout for IRS buttons, approximately 30x22mm. Check the exact size on your panel before installation or test with the received switch.
Technical Specifications
| Contact type | ON-OFF-ON (I-0-II) |
| Number of contacts | 4 |
| Rated voltage | 220V AC |
| Maximum current | 15A |
| Contact size | 6.3mm |
| Housing material | Heat-resistant plastic |
| Contact material | Metal |
| Actuation type | Push button with latching |
| Applications | Industrial, automotive, marine, domestic |
| Product code | Q-6B015 |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian consumer protection legislation. You have the right to return the product within 30 days of receipt if it does not meet your expectations. Delivery is fast via national courier throughout Romania.
