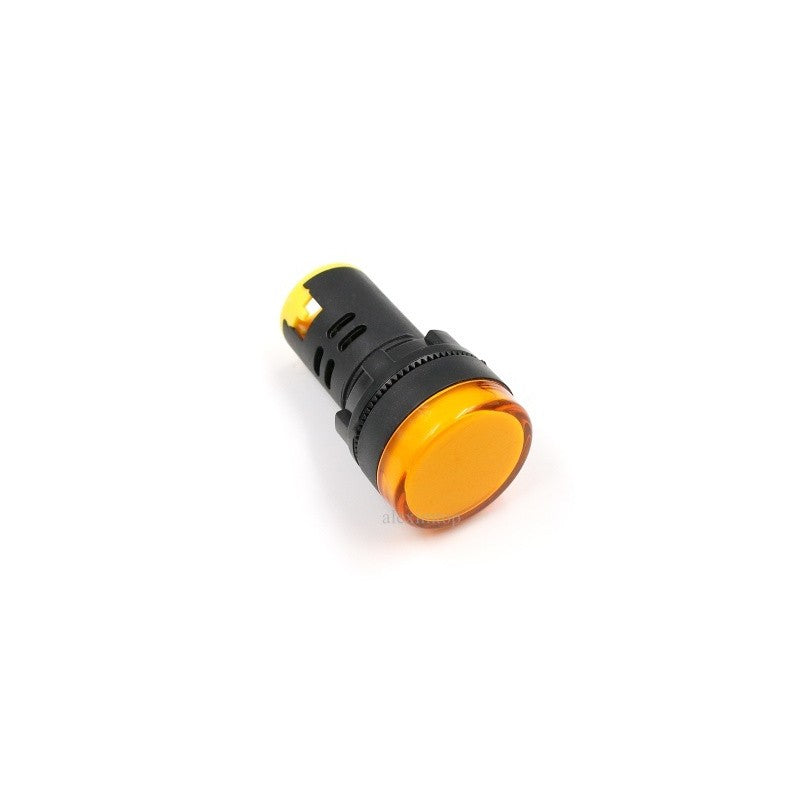

Indicator Light Voltage 220V, Matte Finish, Orange
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
220V Voltage Indicator Light for Industrial Electrical Panels
This 220V voltage indicator light with a matte orange finish provides clear visual signaling of current presence in industrial electrical installations, automation panels, or machinery. Designed for standard 22mm mounting, the visual indicator function helps operators quickly check the status of the electrical circuit without additional tools. A practical solution for industrial applications where voltage monitoring needs to be visible from a distance.
What you get with this product
- Immediate visual signaling — see at a glance if the circuit is energized, without a multimeter or measuring equipment
- Standard 22mm mounting — compatible with existing holes in industrial electrical panels, control panels, and distribution boxes
- Industrial application resistance — quality plastic casing withstands environments with vibrations, variable temperatures, and daily wear and tear
- Increased visibility — intense orange color and matte finish reduce reflections, allowing clear reading from any angle
- Low power consumption — only 20mA during continuous operation, minimal impact on the installation's total consumption
- Quick installation — direct connection to the mains, without transformers or additional circuits, put into operation in minutes
How it works and how to install it
The indicator is powered directly by 220V AC and lights up when it detects the presence of voltage in the circuit. Installation is done by inserting the indicator into the 22mm hole in the electrical panel and securing it with the locking nut from the back. Electrical connections are made on the rear terminals, following the provided wiring diagram. It does not require programming knowledge or calibration — you connect, tighten, and you have functional visual signaling.
Frequently asked questions
Can I use the indicator for permanent monitoring or just for testing?
The indicator is designed for continuous 24/7 operation; the minimum consumption of 20mA allows its use as a permanent indicator in industrial electrical panels.
Does it fit in any electrical panel or does it have special dimensions?
The mounting diameter is 22mm, an industrial standard. If your panel has holes of this diameter, the indicator mounts directly without adapters.
How visible is it in broad daylight in a well-lit workshop?
The matte finish of the orange lens eliminates strong reflections, and the light intensity of the bulb allows clear reading even in strong ambient light conditions.
Technical specifications
| Product code | AD16-22DS/V |
| Supply voltage | 220V AC |
| Operating current | ≤20mA |
| Rated current | 16A |
| Indicator color | Orange |
| Lighting type | With bulb |
| Mounting diameter | 22mm |
| Overall dimensions | 29 x 51mm |
| Housing material | Industrial plastic |
| Surface finish | Matte |
| Package content | 1 x Indicator Light |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. 30-day return policy from receipt. Fast delivery via national courier with full tracking.
