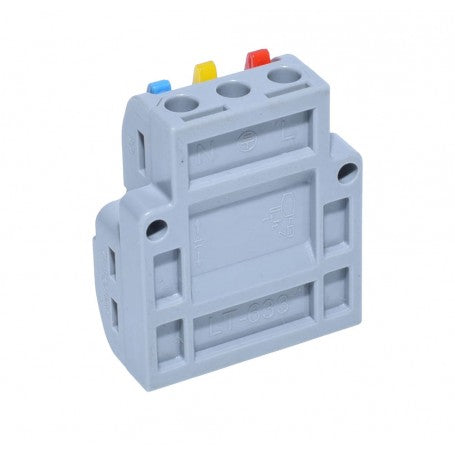

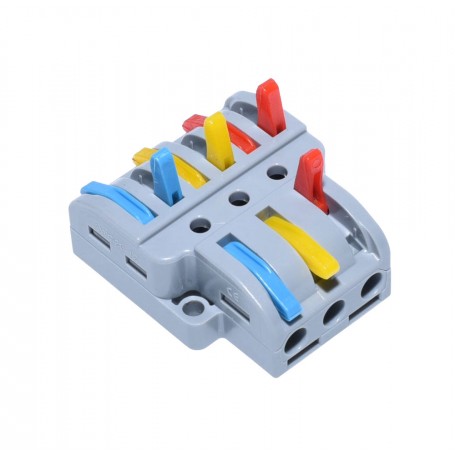

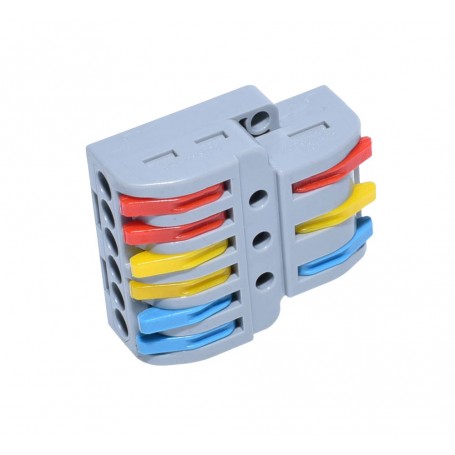

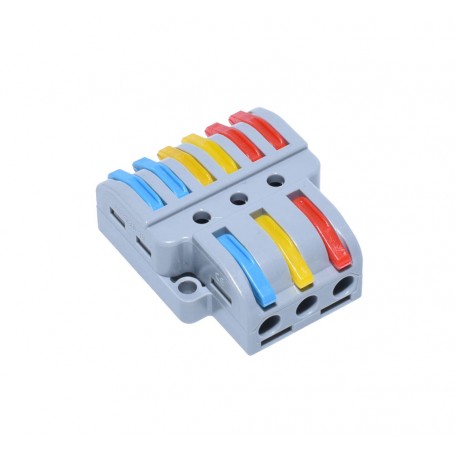

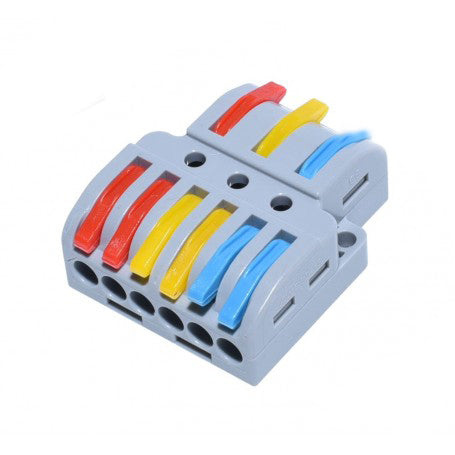

Connector for MYF-FY 3-6 Cable, ElectroAZ
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Connect 9 electrical wires instantly without tools or screws
The MYF-FY 3-6 lever-type rapid connector radically simplifies electrical installations, allowing 9 wires to be connected simultaneously in record time. Ideal for junction boxes, electrical panels, or any project requiring multiple secure and fast connections. No screwdriver, no wasted time, no risk of a weak connection.
What you get with this product
- 10 times faster installation — lift the lever, insert the cable, lower the lever, the connection is made in 3 seconds
- Increased electrical contact safety through spring system and uniform pressure, eliminating the risk of overheating
- Maximum flexibility — accepts solid or stranded wires between 0.08-4mm², from thin doorbell wires to power cables
- Effortless subsequent modifications — removing or replacing a cable is also done by lifting the lever, without damaging the wires
- Clear organization with colored levers — instantly identify each connection in the junction box or electrical panel
- Thermal resistance up to 85°C and 32A capacity — suitable for most residential and commercial circuits
How it works and how to install it
The connector uses a spring-loaded clamping system with a pivoting lever. To connect: lift the colored lever corresponding to the desired terminal, insert the stripped cable end all the way, then release the lever, which automatically closes and locks the cable by constant pressure. To disconnect, lift the lever again and pull out the wire effortlessly. No tools required, works with solid BV, stranded BVR or flexible RV wires, being compatible with most installations in Romania.
Frequently Asked Questions
Can I connect wires of different thicknesses to the same connector?
Yes, each terminal independently accepts wires between 0.08-4mm², you can combine thin and thick cables on the same connector without problems.
Is it suitable for electrical panels or just for junction boxes?
It is designed precisely for such applications — electrical panels, junction boxes, distribution boards. It supports 32A and 250V, perfect for residential circuits.
If I make a mistake in connecting, can I easily remove the cable?
Absolutely, this is the big advantage over classic screw terminals. You lift the lever, pull out the cable, reinsert it correctly, lower the lever — changes in seconds.
Technical specifications

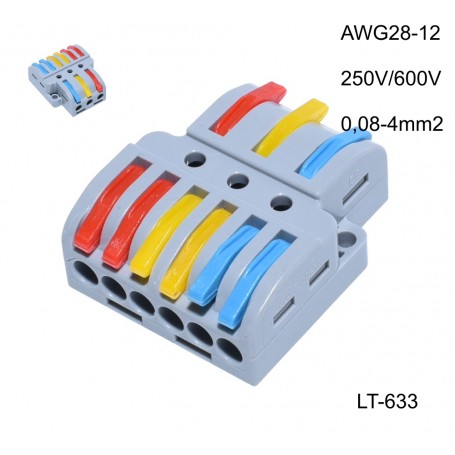

| Model | MYF-FY 3-6 (AWG28-12, LT-633) |
| Number of terminals/levers | 9 (3+6 wire configuration) |
| Rated voltage | 250V / 4KV |
| Rated current | 32A |
| Rated power | 7KW |
| Accepted cable section | 0.08-4mm² |
| Compatible cable type | Solid BV, stranded BVR, flexible RV |
| Operating temperature | -40°C to +85°C |
| Housing material | Flame retardant ABS plastic |
| Terminal material | Copper |
| Dimensions | 39x33/23x15mm |
| EAN | 0704384671657 |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation, covering manufacturing defects. 30-day return policy for any reason. Fast national courier delivery throughout Romania, secure packaging for transport protection.
