RGBW LED Strip Voltage Amplifier 12-24V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
RGBW LED Strip Amplifier for Lighting Extension
The 12-24V RGBW LED strip amplifier allows you to extend your colored lighting installation without losing intensity or color accuracy. Connected between the controller and additional strips, it takes over the control signal and independently powers the new segments, maintaining perfect color synchronization. This is the ideal solution when a single power source or controller can no longer handle the total length of the strips.
What you get with this product
- Extend the total length of your RGBW installation without purchasing an additional controller — all strips remain synchronized on the same signal
- Total output current of 24A (6A per channel) — sufficient for long LED strip segments without brightness loss
- Compatible with 12V and 24V DC voltages — works with most existing power supplies
- Aluminum casing with screw mounting — efficient heat dissipation and mechanical resistance for long-term use
- Compact size (82 x 65 x 25 mm) — discreetly mounts in narrow spaces, including profiles or distribution boxes
- Screw terminals for connecting strips — secure fastening without the risk of accidental wire detachment
How it works and how to install it

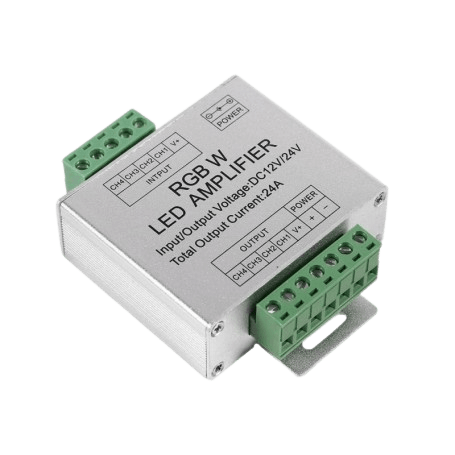

The amplifier receives the color signal from the existing controller via the INPUT (CH1-CH4 + V+) and powers the next LED strip via the OUTPUT, using a separate power supply connected to the POWER terminals. Installation is done by connecting the wires directly to the screw terminals, without special tools or advanced electrical knowledge. The process takes an average of 10-15 minutes for an installer without prior experience.
Frequently Asked Questions
Can I use this amplifier for regular RGB strips, not just RGBW?
The amplifier is designed for RGBW strips with 4 channels. For standard RGB strips with 3 channels, a dedicated RGB amplifier is recommended.
Do I need a separate power supply for the amplifier?
Yes, the amplifier requires its own power supply connected to the POWER terminals, with the appropriate voltage for the strip used (12V or 24V DC).
How long can the LED strip connected to the amplifier output be?
With a total available current of 24A, the amplifier can power significant strip segments — the exact length depends on the type of strip and its consumption per meter.
Technical Specifications
| Model | AMP-RGBW-24A |
| Product Type | RGBW LED Strip Amplifier |
| Supply Voltage | 12V - 24V DC |
| Total Output Current | 24A |
| Output Current per Channel | 6A |
| Number of Channels | 4 (CH1, CH2, CH3, CH4) |
| Standby Consumption | 1W |
| Power Connector | DC female 2.1mm |
| Operating Temperature | -20°C / +60°C |

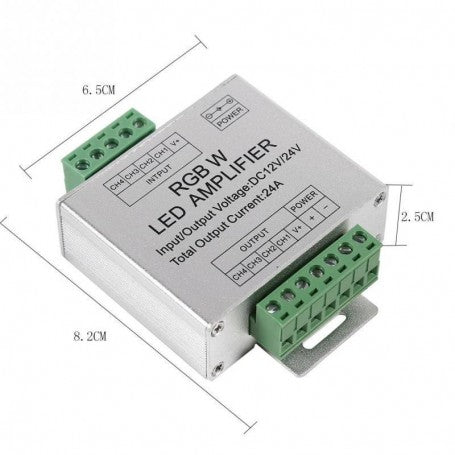

| Dimensions | 82 x 65 x 25 mm |
| Weight | 110 g |
| Housing Material | Aluminum |
| Package Contents | 1 x RGBW LED Strip Amplifier |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days of receipt, provided the product is kept in its original condition. Fast courier delivery within Romania.
