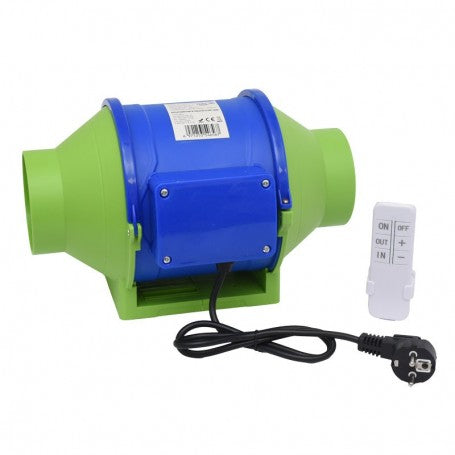

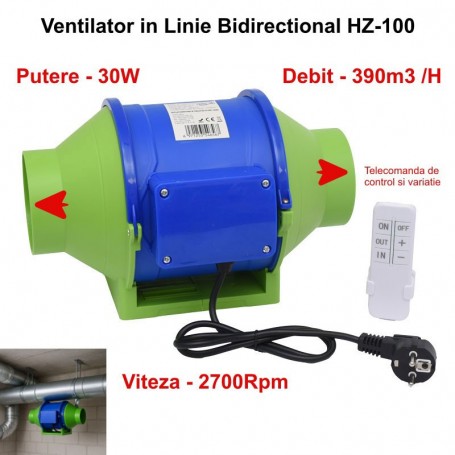

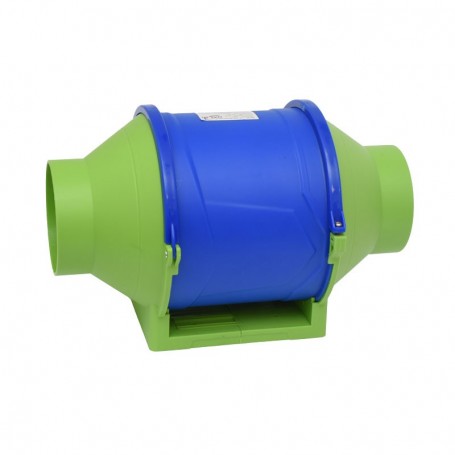

Bidirectional Booster Fan 4'' (100mm), 30W, 390m3/h, Remote Control - Duct Mounted HZ-100H
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Bidirectional Duct Fan with Remote Control for 100mm Ducting
The HZ-100 booster fan instantly improves air circulation in domestic and commercial ventilation systems' ducting. With an airflow of 390m³/h and bidirectional function, it ensures both exhaust and fresh air intake in bathrooms, kitchens, workshops, or greenhouses. Speed adjustment via remote control allows for quick adaptation to needs without leaving the room.
What you get with this product
- Complete control via the included remote control — adjust air speed and direction without getting up from your seat
- Versatile bidirectional flow — switch between intake and exhaust with a single press for complete ventilation
- Simple installation on standard 100mm round ducting — compatible with most existing installations, no special adapters needed
- Silent operation at 2700 RPM — ideal for residential areas where noise is a concern
- Low power consumption of just 30W — runs continuously without significantly increasing your electricity bill
- Powerful airflow of 390m³/h and static pressure of 300 Pa — quickly eliminates humidity and unpleasant odors
How it works and how to install it
The fan is fixed directly into the 100mm circular ducting via the 97.6mm connection, ensuring a tight fit. You connect the power cable to the outlet, then use the remote control to select the flow direction (IN for air intake, OUT for air exhaust) and desired speed. The bidirectional axial motor reverses its rotation direction according to the received command, offering maximum flexibility for any ventilation configuration.
Frequently Asked Questions
How noisy is the fan at maximum speed?
It operates relatively quietly due to the optimized axial motor, suitable for continuous residential use without disturbing sleep or daily activities.
Can I use the fan for smoke extraction from a kitchen?
Yes, the airflow of 390m³/h and static pressure of 300 Pa are sufficient for extracting odors and steam from small and medium-sized kitchens connected to ducting.
Can it be mounted on rectangular ducting?
The product is designed for 100mm round ducting. For mounting on rectangular ducting, you need a separately available adapter.
Technical Specifications
| Model | HZ-100 Bidirectional |
| Power | 30W |
| Supply voltage | 220V, 50Hz |
| Rated current | 0.22A |
| Max airflow | 390 m³/h |
| Static pressure | 300 Pa |
| Rotation speed | 2700 RPM |
| Connection diameter | 97.6mm (for 100mm ducting) |
| Motor type | Bidirectional axial |
| Housing material | Durable plastic |
| Remote control functions | ON/OFF, IN/OUT, variable speed |
| Net weight | 1.5 kg |
| Certifications | CE, RoHS |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian consumer protection legislation. You have a right of return within 30 days of receipt. Delivery is carried out quickly by national courier with telephone confirmation.
