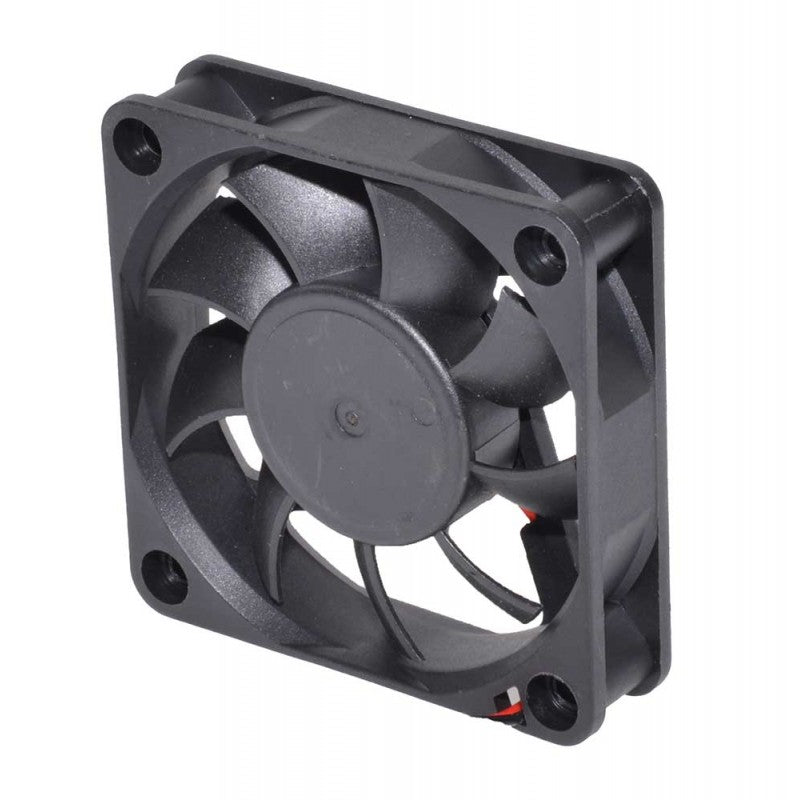

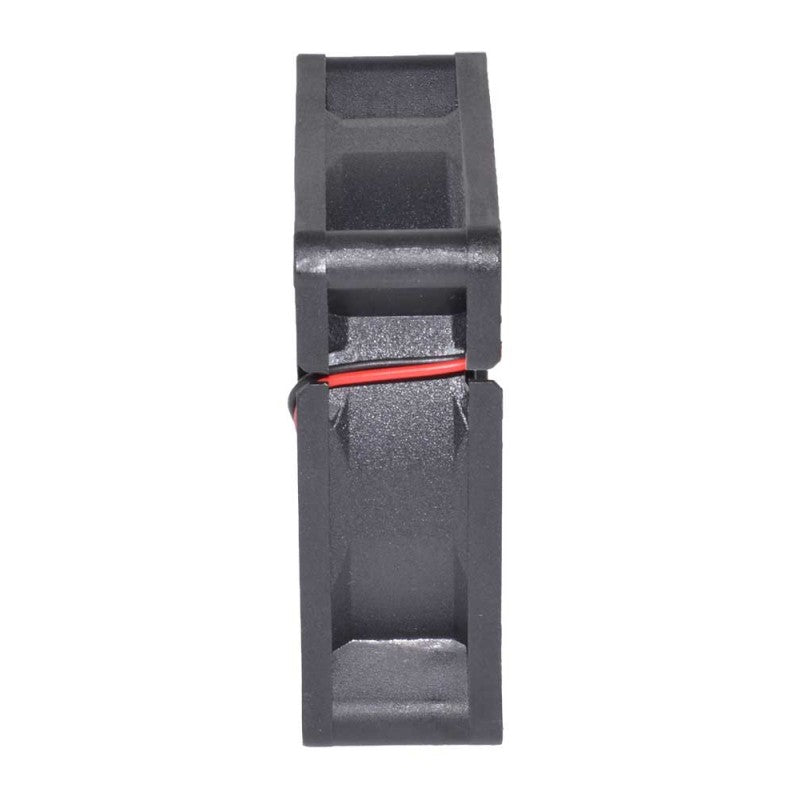

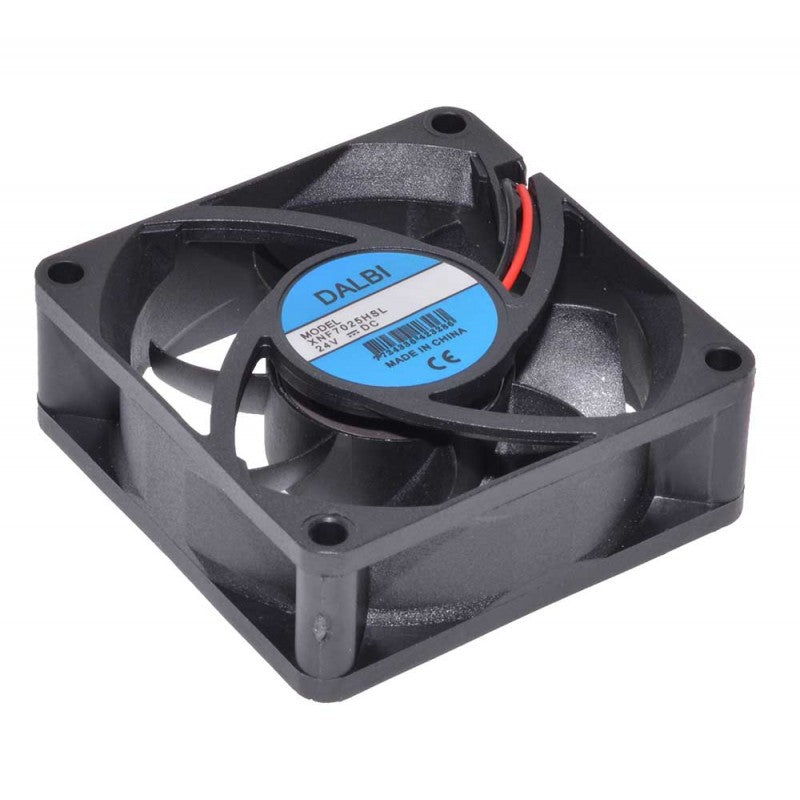

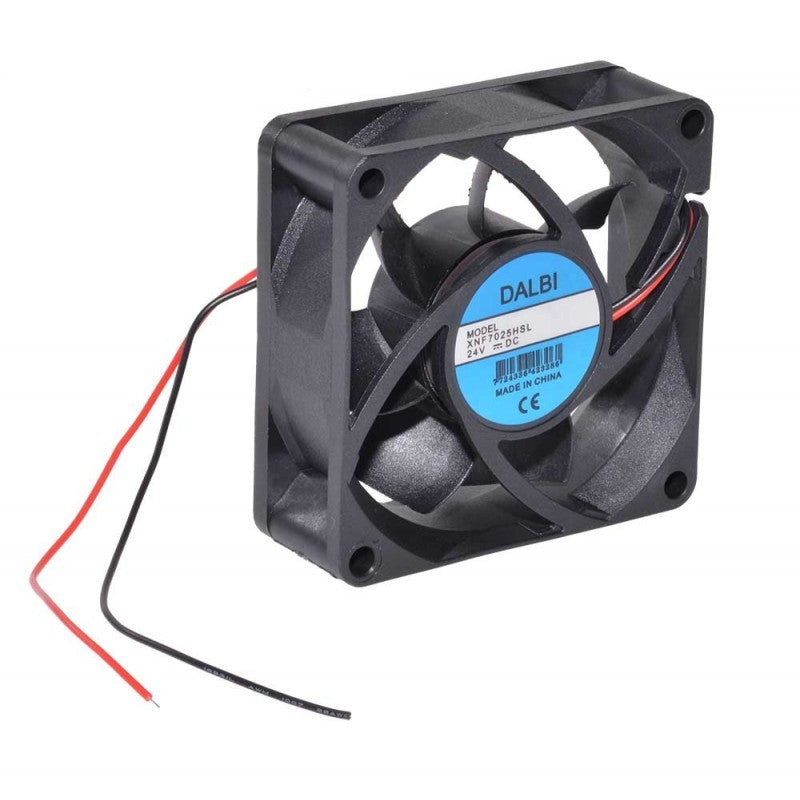

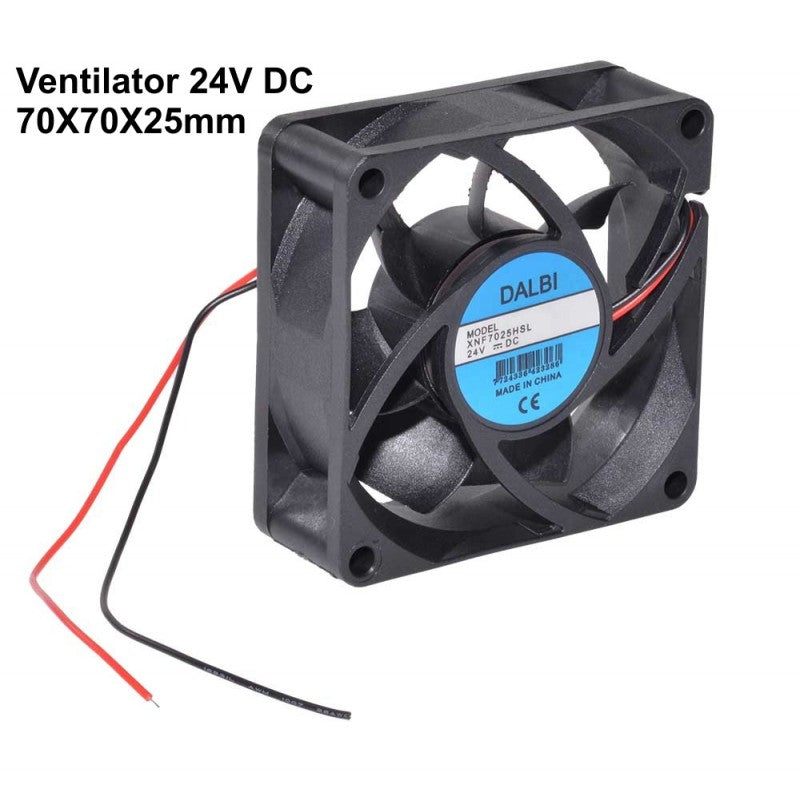

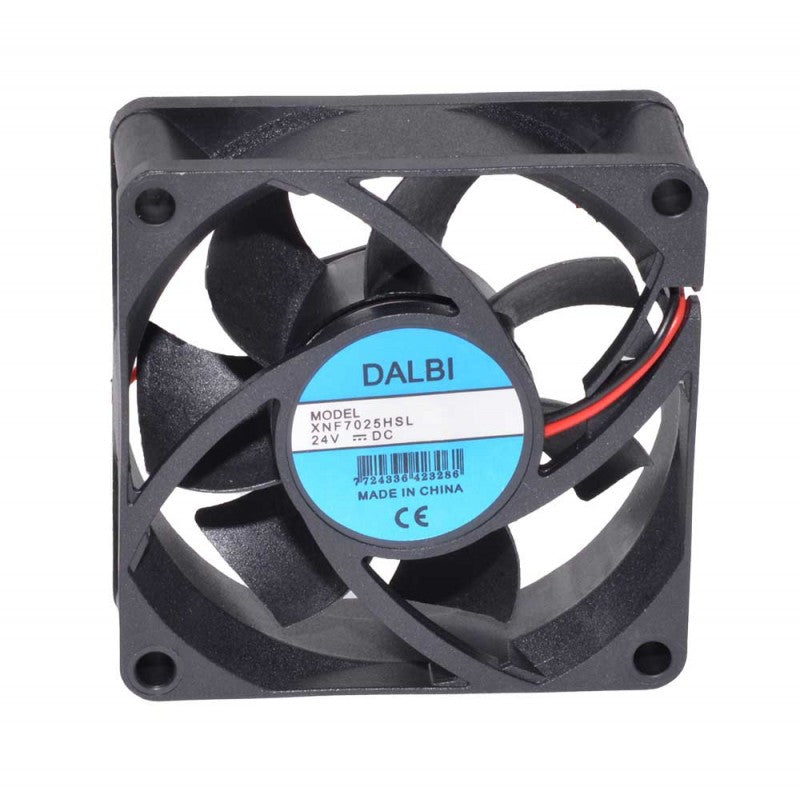

Axial Fan 24V, 70x70x25 mm, Cooler Type, 1.75W
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
24V DC Axial Fan for Efficient Cooling in Industrial Equipment
This compact 70x70x25 mm axial fan operates at a low voltage of 24V DC and is the ideal solution for cooling refrigerators, welding machines, refrigerated counters, or electronic equipment requiring constant thermal dissipation. With a low power consumption of only 1.75W and simple screw mounting, it ensures continuous ventilation without affecting the energy consumption of the installation.
What you get with this product
- Quick mounting via 4 predefined fixing holes in the casing, no special tools required
- Minimal energy consumption of 1.75W for continuous operation, ideal for prolonged applications
- Universal compatibility with 24V DC systems in industry, refrigeration, and electronics
- Air flow of 69.7 m³/h at 3200 revolutions per minute for efficient cooling in small spaces
- Durable plastic construction with silent bearing for long lifespan
- Direct connection via 2 polarized red and black wires, no additional adapters
How it works and how to install it
The fan is powered directly from a 24V DC source via the two attached wires: red to positive, black to negative. It is mounted on the equipment surface using the 4 holes on the casing, with M3 or M4 screws. The motor shaft drives the blades which generate an axial airflow, drawing in or expelling air depending on the mounting orientation. It requires no maintenance, as it is equipped with a lifelong lubricated bearing.
Frequently asked questions
Does it work at 12V or only at 24V?
The fan is designed strictly for 24V DC power. Connecting to 12V will significantly reduce rotation speed and airflow, and higher voltages can damage the motor.
Can I mount it outdoors or in humid environments?
The product does not have IP protection and is intended for indoor use, in dry spaces. For applications in environments with humidity or extreme temperatures, fans with an IP54 protection rating or higher are required.
How noisy is it during continuous operation?
At a nominal speed of 3200 rpm, the noise level is moderate, typical for small axial fans, suitable for industrial equipment. It is not recommended for silent residential applications.
Technical specifications
| Model | XNF-7025-HSL-24 |
| Supply Voltage | 24V DC |
| Power Consumption | 1.75W |
| Rated Current | 0.073A |
| Dimensions | 70 x 70 x 25 mm |
| Rotation Speed | 3200 rpm |
| Air Flow | 69.7 m³/h |
| Connection Type | 2 wires (red/black) |
| Casing Material | Plastic |
| Mounting | 4 fixing holes |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation for conformity defects, with the possibility of return within 30 days of receipt. Delivery is carried out by fast courier throughout Romania, with protective packaging for electronic components.
