Thermostat Temperature 95˚C with Wires, Bimetal KSD9700 NC, 250/16A - DALBI
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Automatic Thermal Protection at 95°C for Electrical Equipment

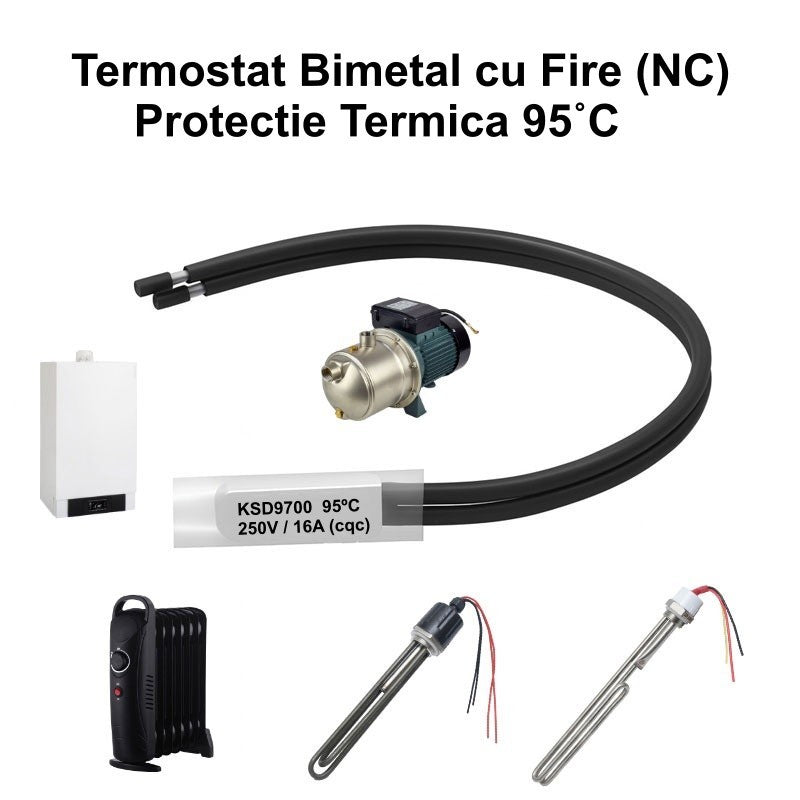

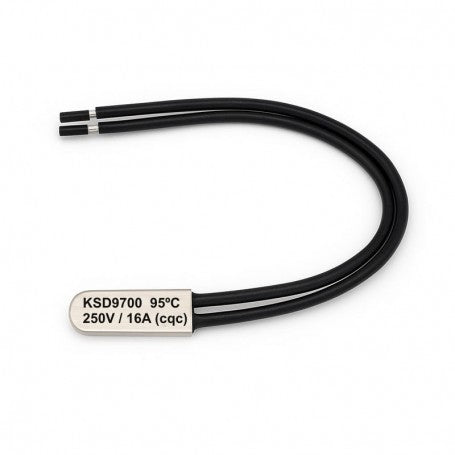

The KSD9700 95°C NC bimetallic thermostat is the essential component that automatically cuts off power when the temperature rises dangerously, protecting boilers, radiators, motors, and transformers from overheating. With pre-insulated wires and a Normally Closed contact type, it can be quickly installed in series on any 250V circuit, without complex modifications.
What you get with this product
- Prevent fires and malfunctions caused by overheating — the thermostat automatically interrupts the circuit at 95°C and re-establishes contact when the appliance cools down
- Quick installation without special tools — standard insulated wires, secured by clamps or screws, installation completed in under 15 minutes
- Universal compatibility with any 250V equipment — works with boilers, electric radiators, LED transformers, motors, and HVAC systems
- Durability for over 100,000 trigger cycles — enclosed metallic bimetallic capsule, resistant to humidity and vibrations
- Safety according to industrial standards — CE, RoHS, and CQC certifications, capacity up to 16A for professional applications
- Protection without electricity consumption or batteries — purely mechanical operation through bimetallic deformation, zero operating costs
How it works and how to install
The thermostat contains a bimetallic blade that deforms at high temperatures. When the appliance reaches 95°C, the blade breaks the electrical contact, cutting off power. Once the temperature drops below the reset threshold, the contact is automatically re-established, and the equipment can operate again. For installation, connect the two wires in series on the appliance's power circuit, fix the thermostat to the surface to be monitored with a clamp or thermal adhesive, and check continuity with a multimeter. It does not require programming or calibration.
Frequently asked questions
Does it reset itself after triggering?
Yes, it is an automatic reset thermostat. When the temperature drops below approximately 65-75°C, the contact closes again, and the equipment returns to normal operation.
Can I use it for a 3000W 220V boiler?
Yes, with a capacity of 16A at 250V, it supports up to 4000W at 220V, so a 3000W boiler is within safe operating parameters.
How accurate is the trigger temperature?
The thermostat triggers at 95°C ±5°C, so the effective range is 90-100°C, which is accurate enough for standard thermal protection of electrical equipment.
Technical Specifications
| Model | KSD9700 |
| Contact type | NC – Normally Closed |
| Trigger temperature | 95°C ±5°C |
| Maximum voltage | 250V AC |
| Maximum current | 16A |
| Technology | Bimetallic |
| Casing | Metallic, thermally insulated |
| Conductor insulation | Temperature-resistant PVC |
| Lifespan | Over 100,000 cycles |
| Certifications | CE, RoHS, CQC |
| Applications | Boilers, radiators, motors, transformers, HVAC systems |
Warranty and support
You benefit from a 2-year warranty according to Romanian law for manufacturing defects and a 30-day return policy if the product does not meet expectations. Fast delivery via national courier with full tracking.
