Thermostat Temperature 115˚C with Wires, Bimetal KSD9700 NC, 250/16A - DALBI
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

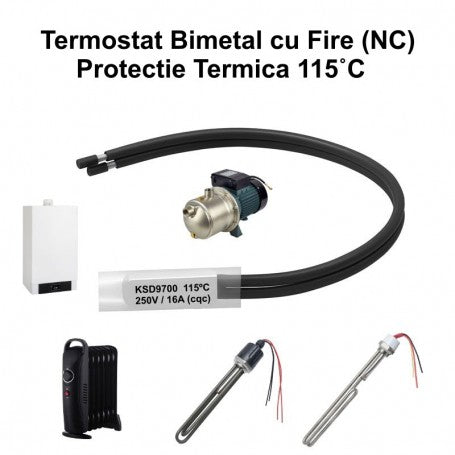

KSD9700 NC Bimetallic Thermal Protection at 115°C
The KSD9700 NC 115°C bimetallic thermostat automatically interrupts the electrical circuit when the temperature reaches the critical threshold of 115°C, protecting the equipment from overheating. It is used in boilers, electric heaters, central heating systems, transformers, pumps, and electric motors. Its compact design with pre-insulated wires allows for quick integration into any industrial or domestic application.
What you get with this product
- Automatic protection against overheating — the circuit breaks at 115°C without manual intervention, preventing equipment failure
- Automatic reset after cooling — the NC (Normally Closed) type re-closes the circuit once the temperature drops below the threshold, without needing to replace the component
- Compatible with voltages up to 250V and current of 16A — suitable for most domestic and industrial electrical equipment
- Pre-insulated wires included — quick installation by simply connecting in series with the heating element or protected motor
- Robust metal capsule — bimetallic contacts are sealed in a compact housing, resistant to vibrations and high humidity environments
- Small dimensions — integrates discreetly inside equipment without requiring additional space or major structural modifications
How it works and how to install it
The KSD9700 bimetallic thermostat operates on the principle of differential expansion of two welded metals: when the temperature reaches 115°C, the bimetallic strip bends and opens the electrical contact, interrupting the current. Installation is done in series with the element to be protected — the pre-insulated wires are connected directly into the circuit, without special tools or advanced electrical knowledge. After the element cools down, the thermostat automatically recloses, and the equipment can be restarted normally.
Frequently Asked Questions
What does NC mean on a bimetallic thermostat?
NC means Normally Closed — normally, the circuit is closed and current flows freely. Upon reaching 115°C, the contact opens and cuts off power, and then automatically recloses after cooling.
What equipment can I use the KSD9700 115°C thermostat with?
It is compatible with electric boilers, oil heaters, central heating systems, transformers, power supplies, industrial fans, electric motors, and continuously operating heating elements.
Does the thermostat reset itself or does it need to be replaced after tripping?
It resets automatically — after the temperature drops below the 115°C threshold, the contact recloses and the equipment returns to normal operation without any intervention.
Technical Specifications
| Model | KSD9700 |
| Trigger temperature | 115°C |
| Contact type | NC (Normally Closed) |
| Rated voltage | 250V |
| Rated current | 16A |
| Certification | CQC |
| Technology | Bimetallic |
| Connection | Pre-insulated wires |
| Housing | Metal, compact capsule |
| SKU | Q-16D028 |
| Brand | DALBI / ClassLights |
Warranty and Support
The product benefits from a 2-year warranty according to Romanian legislation in force. We accept returns within 30 days from the delivery date, with no obligation to provide a reason. Delivery is fast via courier, with shipping confirmation and tracking included.
