Boiler Thermostat with Short Rod and Protection
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Short Rod Boiler Thermostat with Overheat Protection
The short rod boiler thermostat controls and protects the electric heating element in domestic hot water boilers, automatically cutting off power when the set temperature is reached. Compatible with most electric boilers sold on the Romanian market, it is installed directly into the heating element's sheath and allows water temperature adjustment between 10°C and 80°C. This is the suitable solution for replacing a faulty thermostat or for a new installation.
What you get with this product
- Precise water temperature control — the adjustment knob allows setting between 10°C and 80°C directly from the thermostat, without additional parts
- Automatic overheat protection — the circuit is interrupted before the heating element or boiler is damaged
- Compatible with heating elements between 1200W and 3000W — works with the most common electric boiler configurations

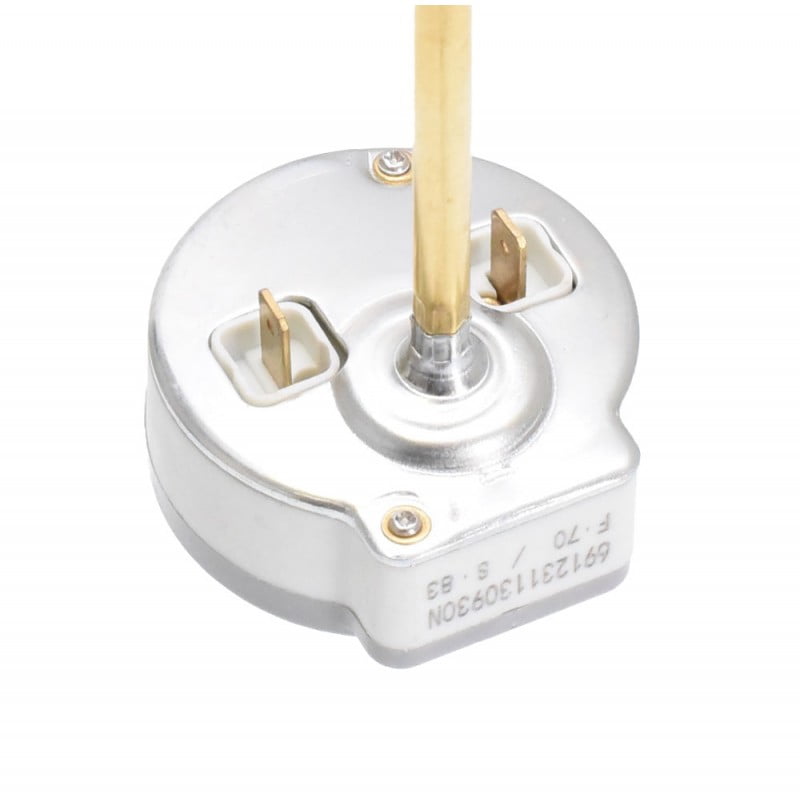

- Simple and standardized connection — 6.3 mm male spade terminals that connect directly to the heating element's female terminals, no modifications needed
- Dedicated output for indicator LED — 2 female pins for connecting a voltage presence indicator LED

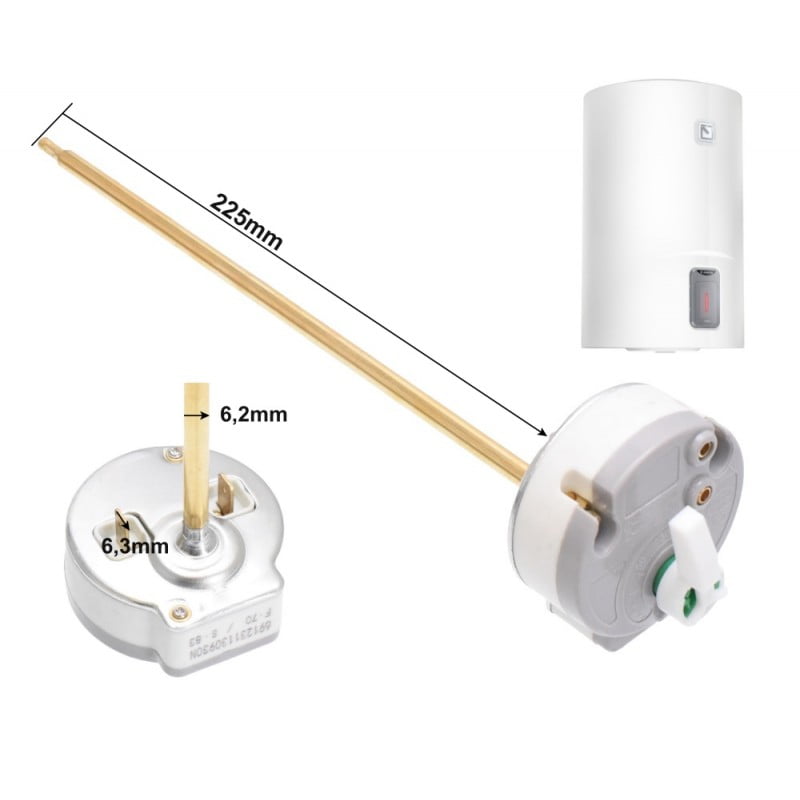

- Rod length adapted for compact boilers — 225 mm rod length, 265 mm total length, suitable for most standard tanks
How it works and how to install
The thermostat is inserted into the heating element's sheath, and the heating element's power supply voltage first passes through the thermostat — which decides, based on the set temperature, whether to power or cut off the heating element. The electrical connection is made via two screw terminals for power supply and through the 6.3 mm male spade terminals that connect directly to the heating element's female terminals. Installation is recommended to be carried out by an authorized electrician, who will check the polarity and supply voltage before commissioning.
Frequently Asked Questions
Which boilers is this short rod thermostat compatible with?
It is compatible with most domestic hot water electric boilers that use heating elements with 6.3 mm female spade terminals and a sheath for a 225 mm rod thermostat.
What happens if the boiler temperature exceeds the set limit?
The thermostat automatically cuts off power to the heating element via the integrated overheat protection, preventing damage to the installation.
Can I replace a faulty boiler thermostat myself?
Replacement is physically simple, but intervention by an authorized electrician is recommended to check electrical connections and supply voltage.
Technical Specifications
| SKU | Q-16A008 |
| Product type | Boiler / electric heater thermostat |
| Adjustment temperature | 10°C - 80°C |
| Overheat protection | Yes |
| Working voltage | 100V - 250V AC |
| Working current | 10A - 16A |
| Compatible heating element power | 1200W / 1500W / 2000W / 2500W / 3000W |
| Rod length | 225 mm |
| Total length | 265 mm |
| Heating element connection terminals | Male 6.3 mm |
| Indicator LED output | 2 x female pin |
| Package contents | 1 x Short rod boiler thermostat with protection |
Warranty and support
The product benefits from a 2-year warranty according to current Romanian legislation. We accept returns within 30 days of receiving the package, without the need for justification. Delivery is fast via courier throughout Romania.
