Mechanical Panel Timer, Programmer Clock, DIN Rail Mount, SUL-181-D
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
Panel-mount mechanical timer for low-power automation

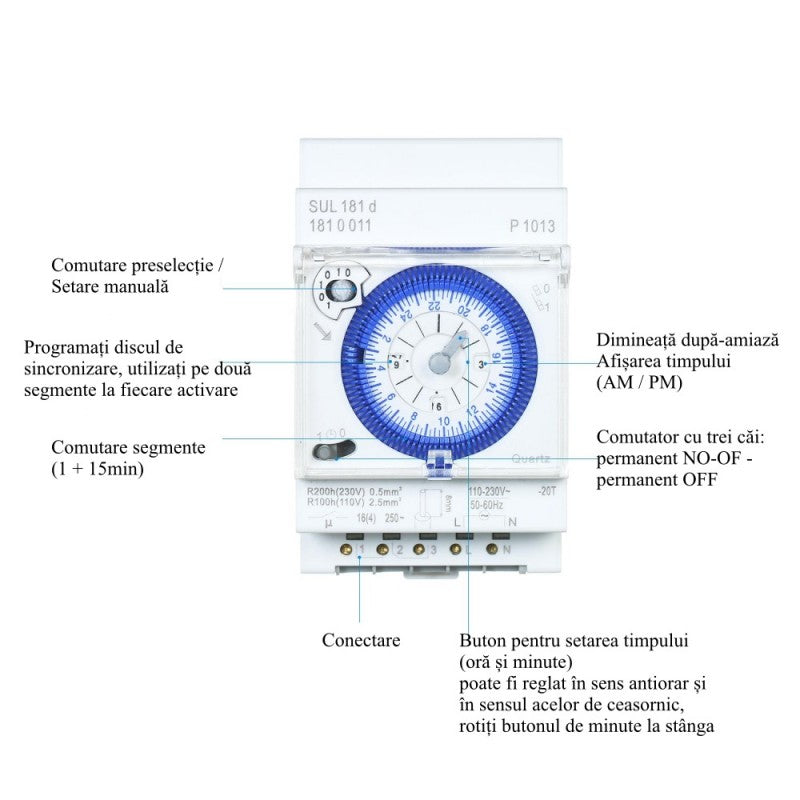

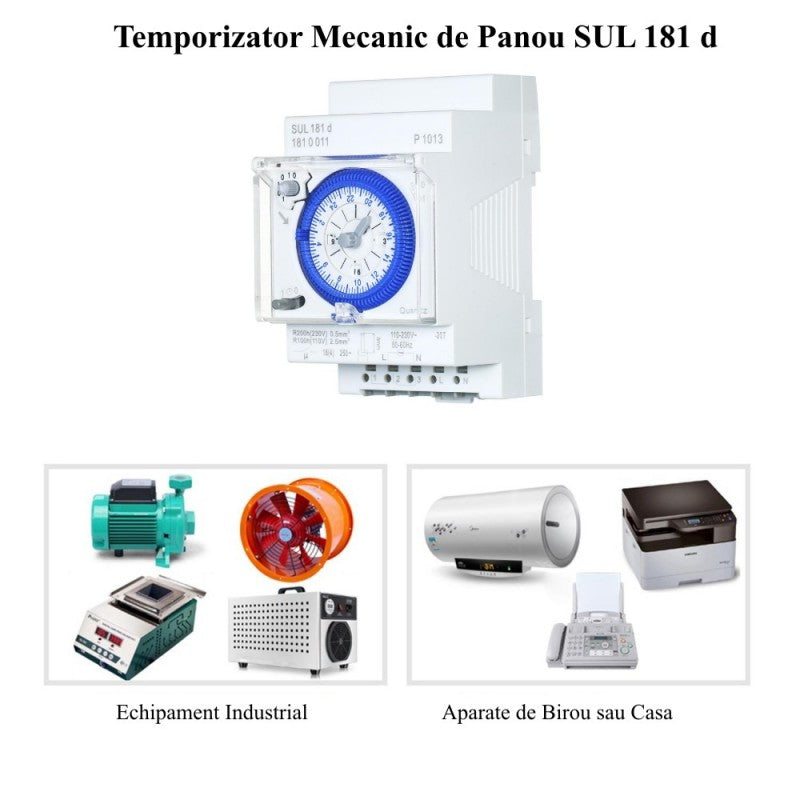

This mechanical timer with DIN rail mounting allows you to automatically schedule the switching on and off of electrical equipment over a 24-hour period. Ideal for street lighting, water pumps, irrigation systems, boilers, fans, and office equipment, it helps you reduce energy consumption without manual intervention. Programming is simple, by pressing the 15-minute segments on the visible mechanical dial.
What you get with this product
- Quick installation on the DIN rail in the electrical panel, without complex modifications or special tools
- Real savings on electricity bills by automating equipment start-ups and shutdowns
- Intuitive programming with 96 possible actions per day, each segment representing 15 minutes
- Transparent cover resistant to dust and moisture, protecting the mechanism in industrial conditions
- Manual-auto-off function for complete control when you need to temporarily stop programming
- Compatible with loads up to 16A, supporting both inductive and resistive consumers
How it works and how to install it
The timer is quickly mounted on the DIN rail in the electrical panel, with connections made via screw terminals for 0.5-2.5 mm² conductors. Programming is simple: rotate the mechanical dial clockwise to the current time, then press down the segments corresponding to the periods when you want the equipment to be on. Each segment represents 15 minutes, allowing for quarter-hour precision. The three-position switch lets you choose between automatic operation, permanently on, or completely off.
Frequently asked questions
Can it be used for LED bulbs and modern lighting fixtures?
Yes, it supports incandescent lamps up to 1100W and fluorescent lamps 2x40W. For LEDs, the 16A capacity at 230V is more than sufficient for any domestic or commercial installation.
How precise is the programming, and does it keep time during a power outage?
The mechanical dial offers 15-minute precision. Being mechanical, it does not require a backup battery, but it must be manually reset after a prolonged power outage, similar to a classic wall clock.
Can I program multiple on and off cycles throughout the day?
Absolutely, you can create up to 96 switching intervals per day by simply pressing the desired segments on the dial. For example, you can turn on the lighting in the morning, turn it off during the day, turn it on in the evening, and turn it off at night.
Technical specifications
| Model | SUL-181-D |
| Supply voltage | 110-230V AC |
| Frequency | 50/60 Hz |
| Switching capacity | 16A, 250V |
| Self-consumption | Max 1A |
| Maximum load incandescent lamps | 1100W |
| Fluorescent lamps load | 2 x 40W |
| Programming interval | 24 hours |
| Minimum setting precision | 15 minutes |
| Number of programmable actions | 96 per day |
| Manual switch | ON - AUTO - OFF |
| Accepted conductor cross-section | 0.5 - 2.5 mm² |
| Maximum stripped conductor length | 8 mm |
| Installation method | DIN rail |

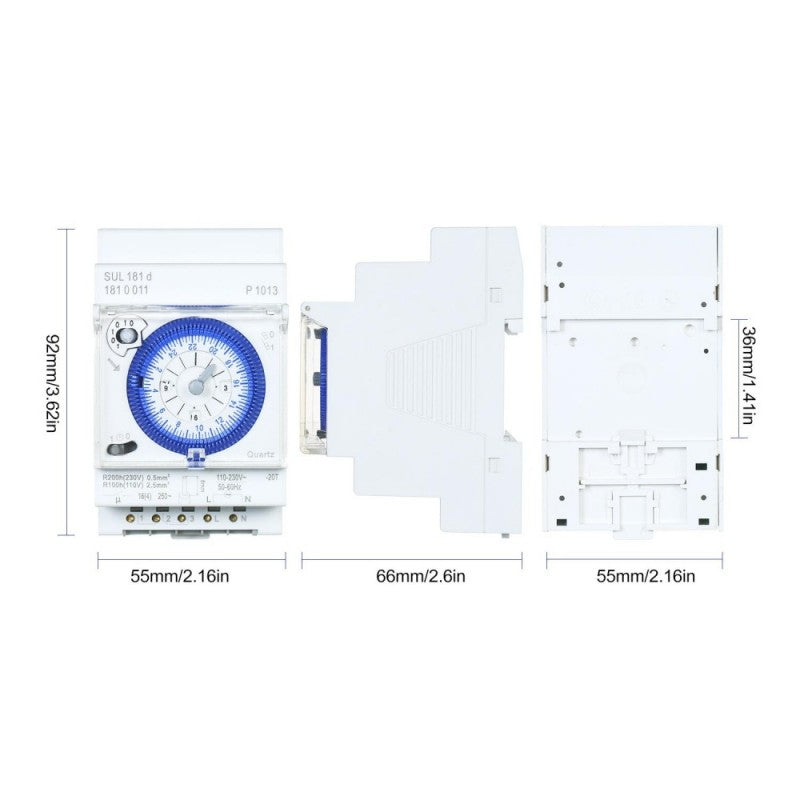

| Dimensions | 90 x 65 x 54 mm |
| Cover type | Transparent, dust and moisture resistant |
| EAN | 0781499722153 |
