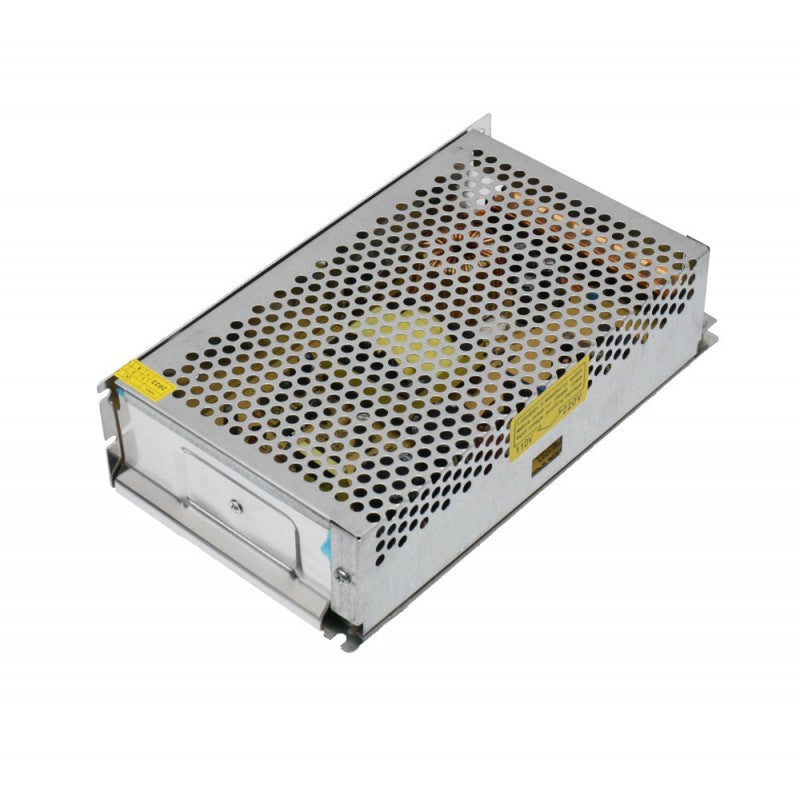

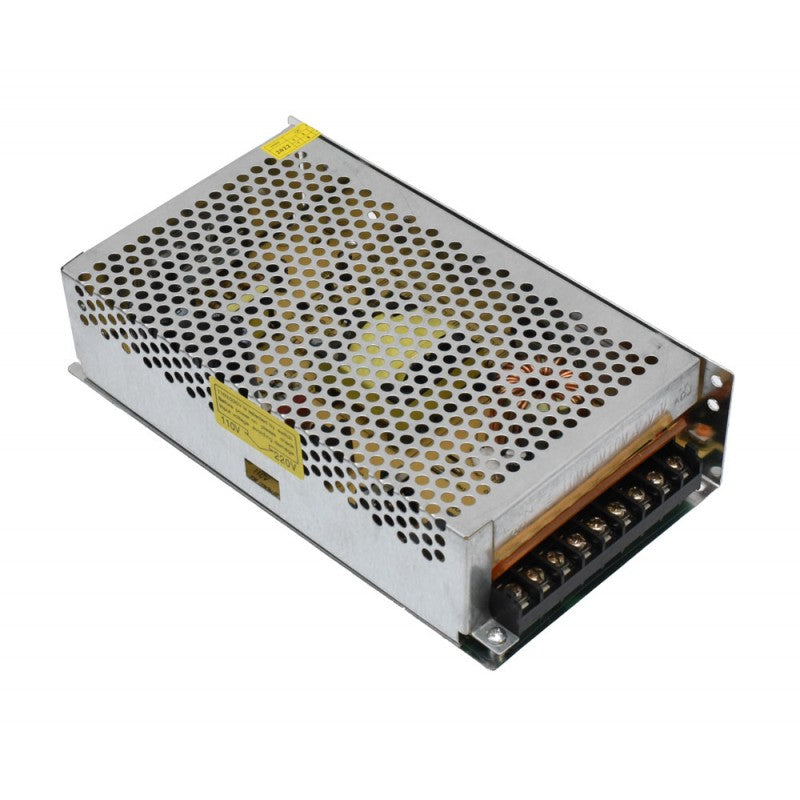

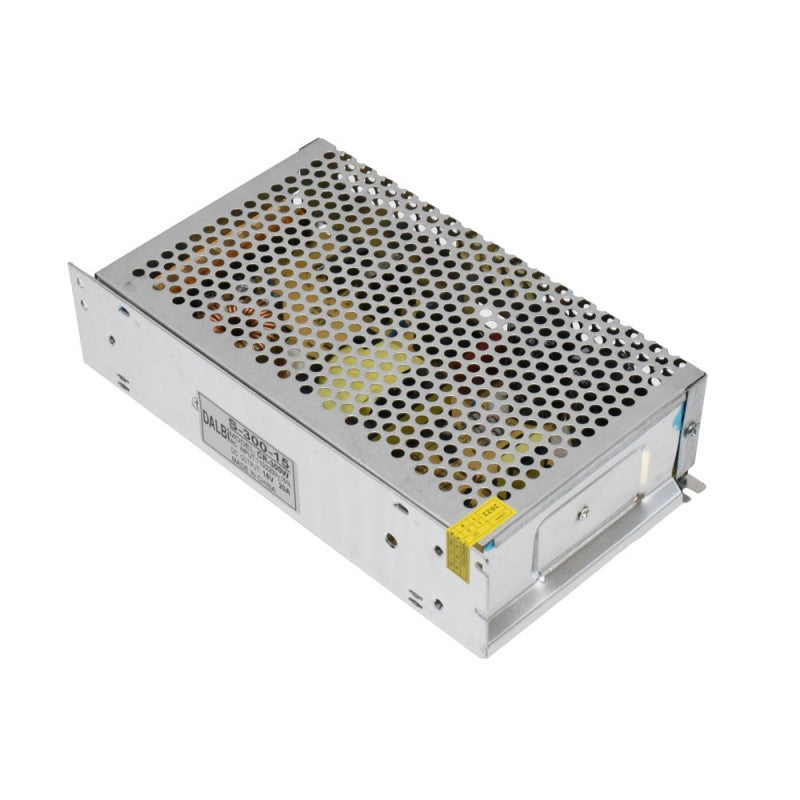

Slim Power Supply, Metal Casing, Indoor, 15V, 300W, 20A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

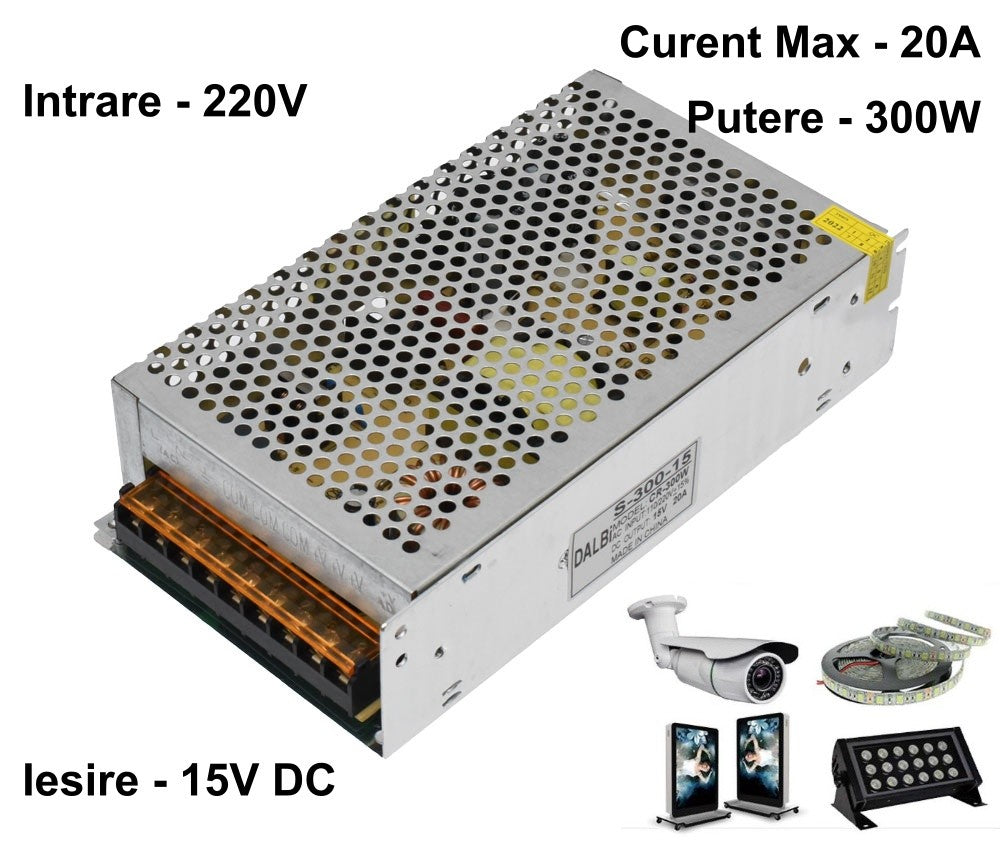

15V 300W Power Supply for LED Strips and Lighting Systems
Professional voltage transformer with a ventilated metal casing, designed for the stable power supply of LED strips, light bars, and surveillance cameras. It converts the 220V AC mains voltage to 15V DC with a maximum power of 300W and a current of up to 20A, ensuring safe and long-lasting operation of your equipment.
What you get with this product
- Stable power supply without interference for up to 20 meters of LED strip or equivalent 20A total consumption
- Perforated metal casing with passive ventilation that prevents overheating even during continuous operation
- Fine adjustment of the output voltage between 15V-16V DC for perfect adaptation to specific requirements
- Integrated protection against short circuits and overloads that automatically shuts down the power supply in case of a problem
- Screw terminals for safe and quick connection, without soldering or special tools
- Compact size 200x110x50mm, easy to integrate into electrical cabinets or hidden technical spaces
How it works and how to install it
The power supply converts 220V AC current from the outlet into 15V DC current required by LED equipment. The terminals are clearly marked: L-N-M for AC input and V+ / V- for DC output. Always check that the voltage selector is set to 220V before connecting. Fix the power supply to a vertical surface with the screws on the casing, connect the power cable to the input terminals, then connect the LED equipment to the output terminals, observing the polarity.
Install the power supply in a well-ventilated area, away from humidity and direct heat. Do not cover the ventilation openings. For maximum safety, installation is recommended to be performed by a person with basic electrical knowledge.
Frequently Asked Questions
How many meters of 15V LED strip can I connect to this power supply?
It depends on your strip's consumption. If the strip consumes 15W/meter, you can power approximately 20 meters. Check the strip's consumption per meter and divide 300W by that value to find the maximum length.
Can I adjust the brightness of the LEDs with this power supply?
No, the power supply provides a constant 15V DC voltage. To adjust brightness, you need a compatible PWM dimmer mounted between the power supply and the LED strip.
What does IP20 protection rating mean and where can I mount the power supply?
IP20 means that the power supply is not protected against humidity. You should only mount it indoors, in dry and ventilated spaces such as electrical cabinets, storage rooms, technical spaces, never outdoors or in damp rooms.
Technical Specifications
| Input voltage | 110-220V AC (selectable) |
| Input frequency | 50-60Hz |
| Output voltage | 15V DC (adjustable 15-16V) |
| Maximum power | 300W |
| Maximum output current | 20A |
| Protection type | Short circuit and overload |
| Protection rating | IP20 (indoor use only) |
| Dimensions | 200 x 110 x 50 mm |
| Casing material | Perforated metal with ventilation |
| Terminal type | AC input: L-N-M / DC output: V+V+/V-V- |
| Applications | LED strips, LED bars, surveillance cameras, 15V spotlights |
Warranty and Support
The product benefits from a 24-month warranty in accordance with current legislation in Romania. You have the right to return it within 30 days of receipt if the product does not meet expectations.
