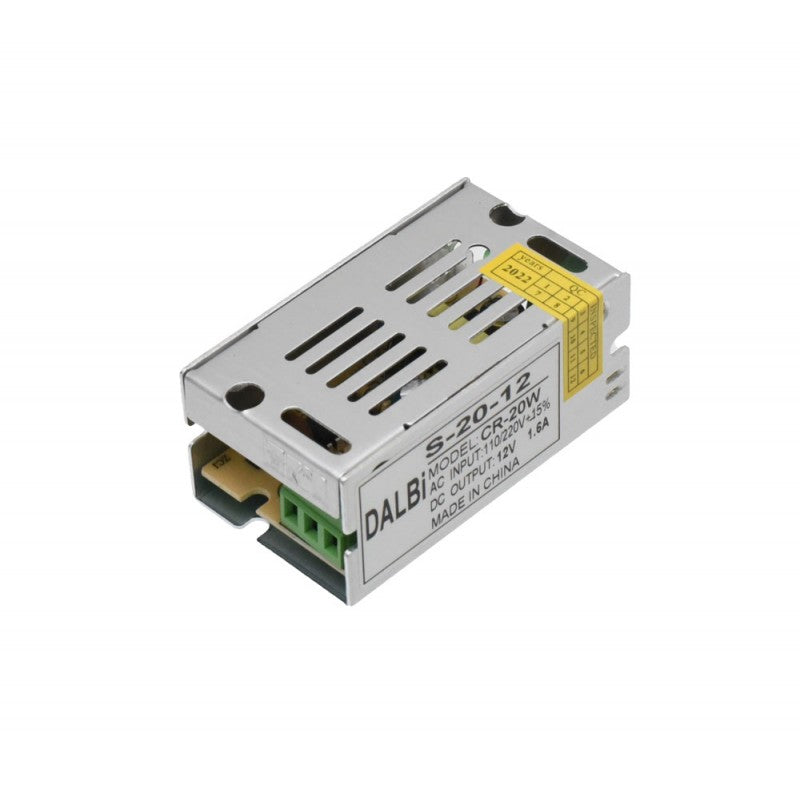

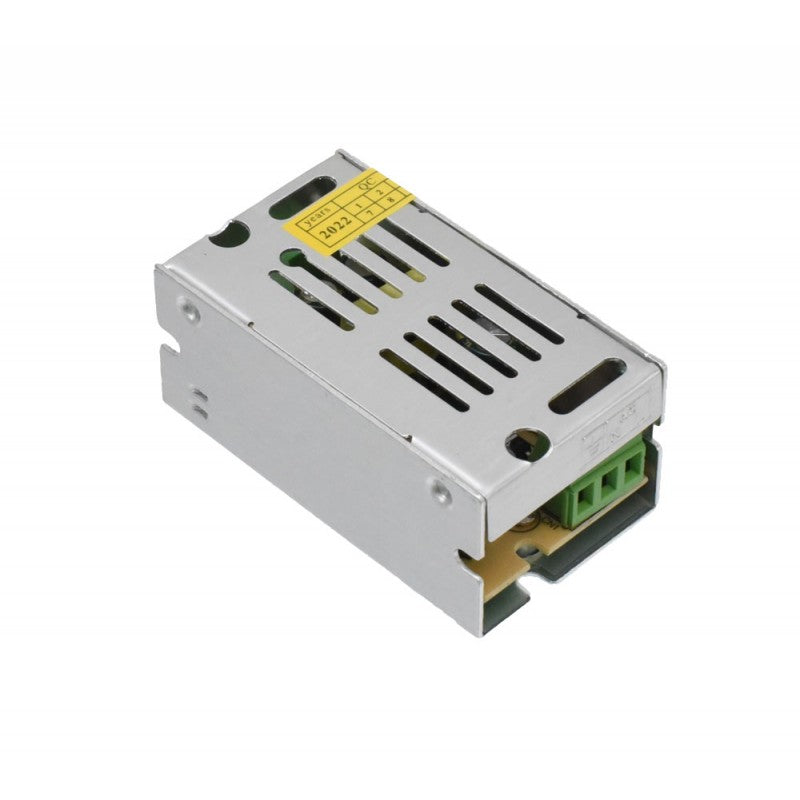

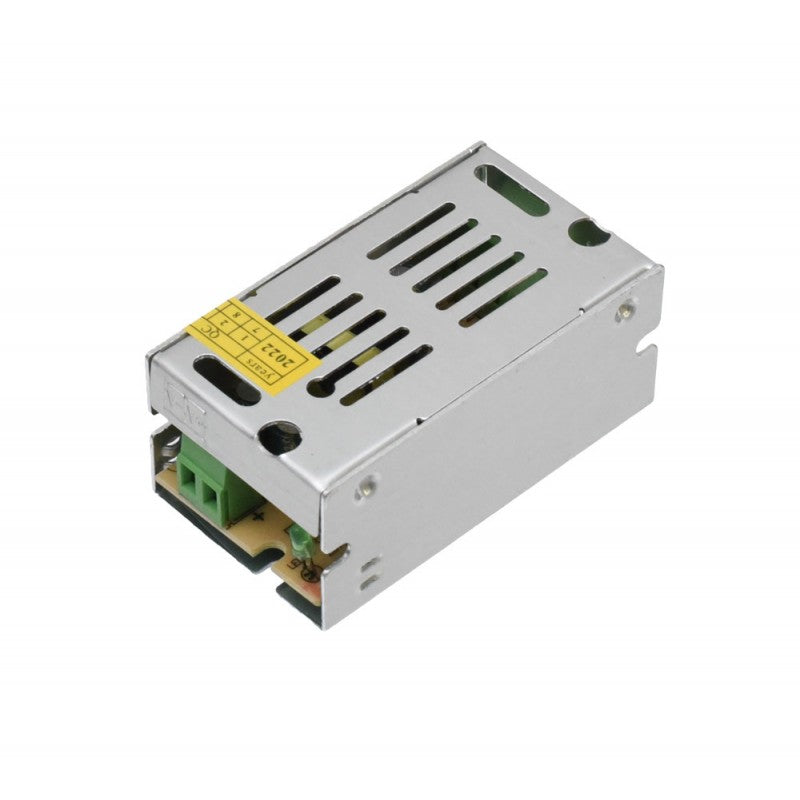

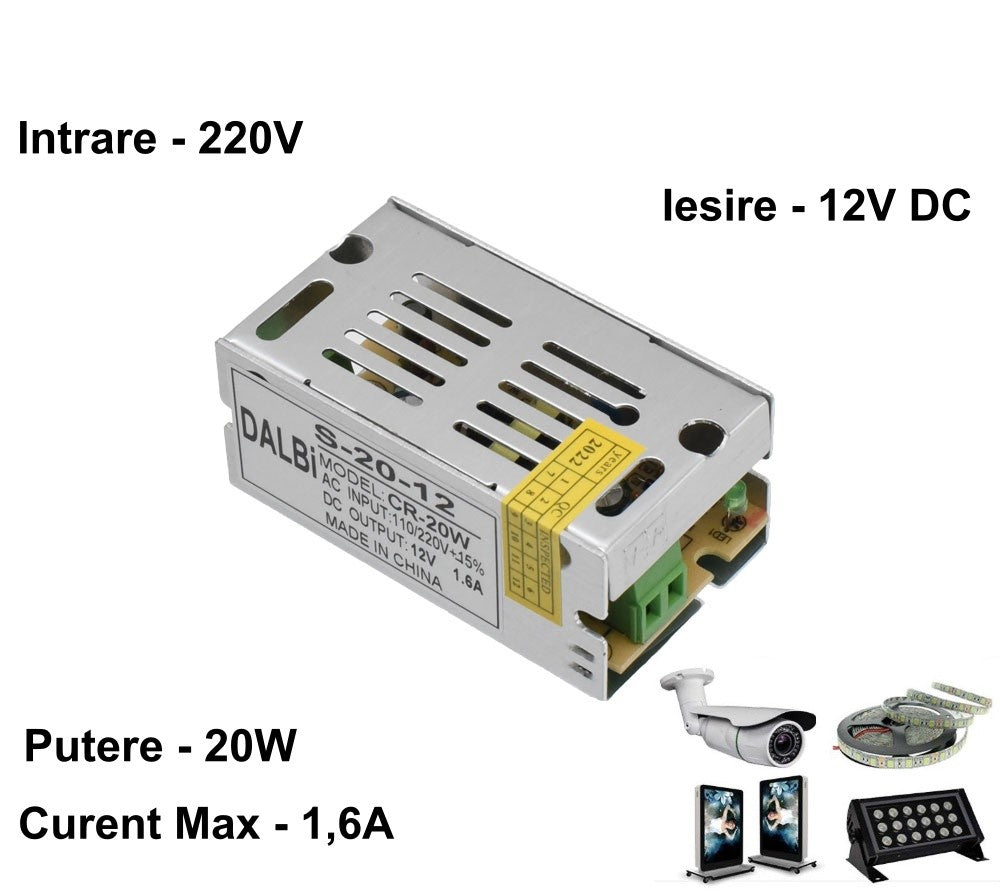

Slim Power Supply, Metal Case, Indoor, 12V, 20W, 1.6A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
12V 20W Power Supply for Indoor LED Strips
Compact transformer in a ventilated metal casing, designed to power LED strips, surveillance cameras, and 12V DC spotlights in indoor spaces. Safe 220V AC to 12V DC conversion with overload protection and small dimensions for discrete installation.
What you get with this product
- Simple installation without special equipment — screw terminals for quick and secure connections, installs in 10 minutes
- Compact design 70x40x32mm — can be hidden in narrow spaces, ideal for furniture or false ceilings
- Ventilated metal casing — ensures efficient cooling and protection against mechanical shocks during continuous operation
- Universal 12V DC compatibility — powers LED strips, video cameras, spotlights, or any device up to 20W
- Integrated electronic protection — against overload and short circuit, extends the lifespan of connected equipment
- Low standby power consumption — high energy efficiency, lower electricity bill in the long run
How it works and how to install it
The power supply converts 220V AC mains voltage to stable 12V DC for LED equipment. Connect the 220V power cables to the L-N-M input terminals respecting polarity, then attach the LED devices to the DC V+/V- output. The power supply is mounted on a flat surface with screws through the side holes, in dry and ventilated areas, protected from moisture and excessive heat. It does not require advanced electrical knowledge, only adherence to the wiring diagram.
Frequently Asked Questions
How many meters of LED strip can I power with this power supply?
Up to 1.6 meters of 12V LED strip with a consumption of 12W/meter, or 3.3 meters if the strip consumes 6W/meter. Check the consumption of your strip and do not exceed 20W total.
Can I install the power supply in the bathroom or outdoors?
No, it has an IP20 protection rating and is intended exclusively for dry indoor spaces. For wet areas, choose IP65 or higher variants.
Does it make noise or get very hot during operation?
It does not contain a fan and does not produce noise. The metal casing dissipates heat naturally, remains warm to the touch at maximum load, but not dangerously hot. Ensure adequate ventilation.
Technical Specifications
| Input voltage | 220V AC (110-220V compatible) |
| Output voltage | 12V DC |
| Maximum power | 20W |
| Maximum output current | 1.6A |
| Operating frequency | 50-60Hz |
| Mounting type | Indoor |
| Protection rating | IP20 |
| Housing material | Perforated metal with ventilation |
| Dimensions | 70 x 40 x 32 mm |
| Connection type | Screw terminals (input L-N-M, output V+/V-) |
| Protections | Overload, short circuit |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. 30-day right of return from receipt. Fast delivery by national courier with telephone confirmation.
