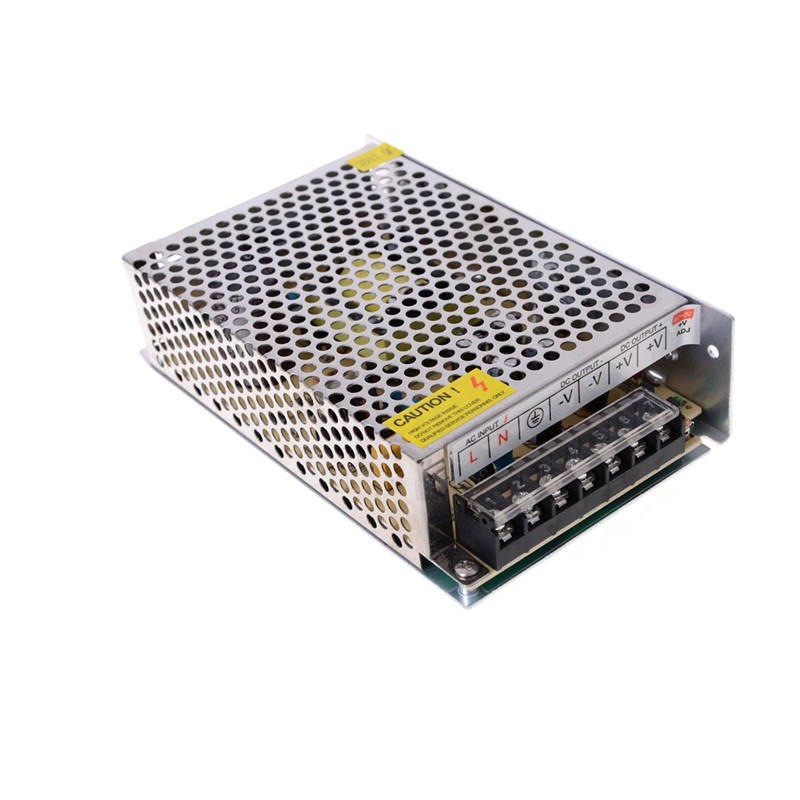

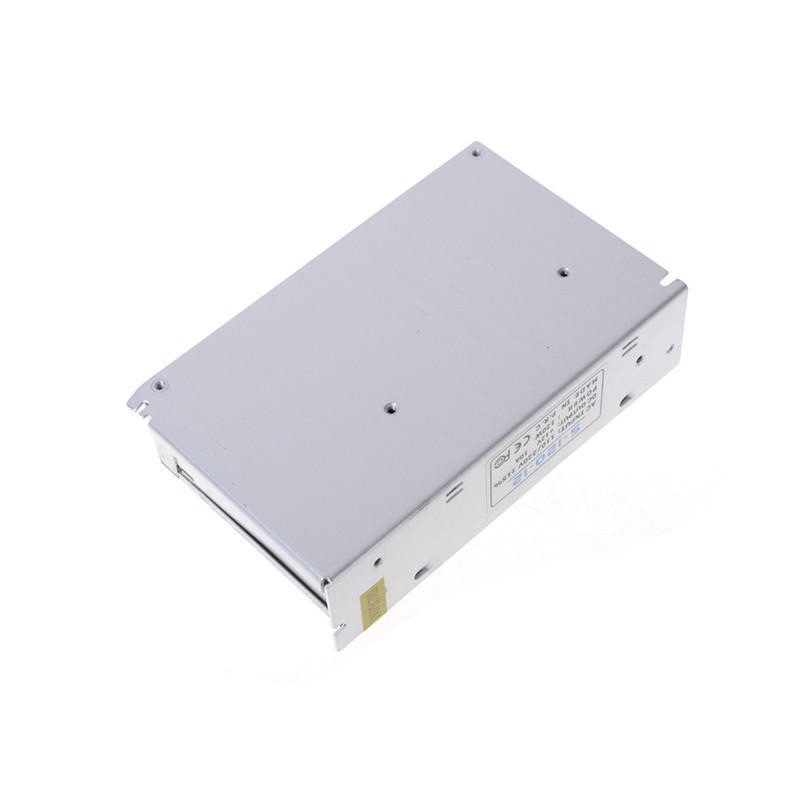

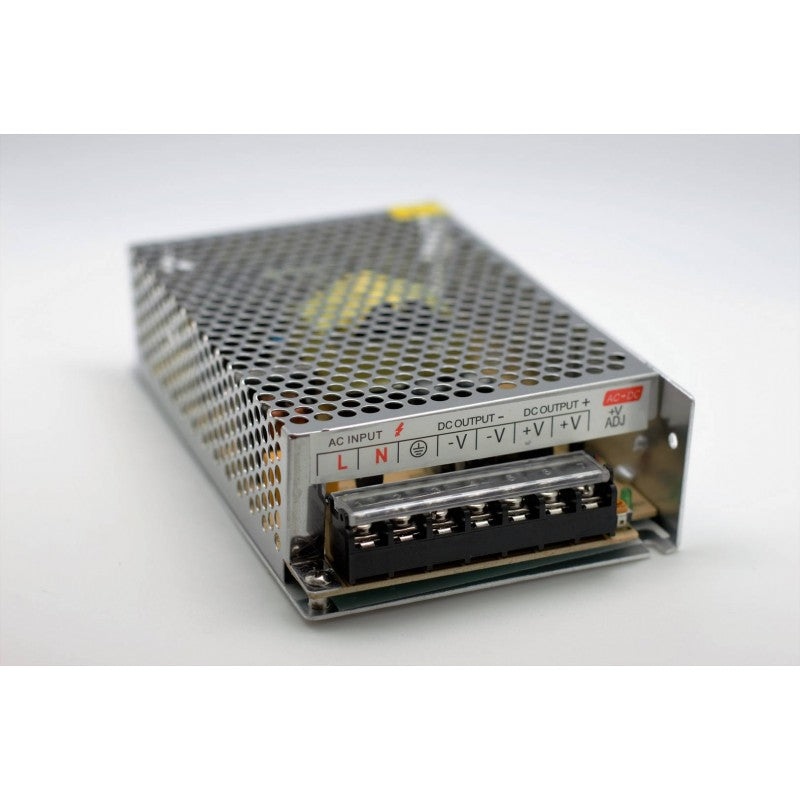

Power Supply, Metal Case, Indoor, 220V, 12V, 180W, 15A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
12V 180W Power Supply for LED Strips and Surveillance Cameras
Professional transformer in a metal casing, converts voltage from 220V AC to 12V DC with a power of 180W and a maximum current of 15A. Ideal for powering LED strips, LED bars, surveillance cameras, and other 12V equipment. Features output voltage adjustment and integrated protections for safe indoor use.
What you get with this product
- Stable power for LED strips up to 15 meters or equipment with a maximum consumption of 180W — no intensity variation or flickering

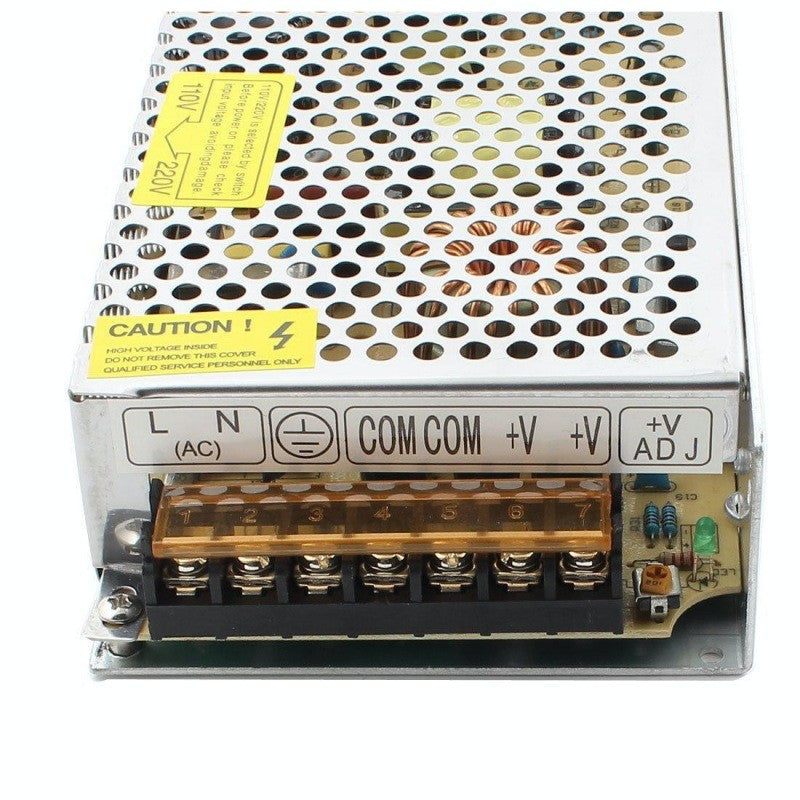

- Quick installation by direct connection to clearly marked terminals L-N for input and V+/V- for output — no complex circuits
- Output voltage adjustment between 12V and 14V via the ADJ potentiometer — adapt to the requirements of each piece of equipment
- Perforated metal casing with passive ventilation — dissipates heat efficiently and ensures continuous operation without overheating
- Universal compatibility with 110V-220V input voltage — works in any electrical network
- Compact dimensions 200 x 100 x 42 mm — easily installed in small spaces, distribution panels, or technical cabinets
How it works and how to install it
The power supply converts 220V AC from the outlet to 12V DC needed for LED strips or surveillance cameras. You connect the 220V power cables to the L (phase) and N (neutral) terminals, then connect the consumers to the +V and -V terminals. Output voltage adjustment is done with a flat-head screwdriver on the ADJ potentiometer until you get exactly 12V or 14V, depending on your equipment's specifications.
Installation requires mounting on a flat surface using the fixing holes in the casing. It is recommended to place it in locations with adequate ventilation and easy access for periodic checks. No special tools are needed — just a screwdriver and pliers for tightening the terminals.
Frequently asked questions
How many meters of LED strip can this power supply power?
It depends on the type of strip. For standard 12V LED strips with a consumption of 12W/meter, the power supply can power up to 15 meters. Check your strip's consumption and do not exceed 180W total.
Can I connect multiple surveillance cameras to the same power supply?
Yes, as long as the total consumption of all cameras does not exceed 15A (180W). For example, 6 cameras at 2A each or 12 cameras at 1A.
Is additional cooling necessary, or does it get very hot?
At maximum load, it heats up moderately, but the perforated metal casing ensures sufficient natural cooling. Ensure a minimum of 5 cm space around the power supply for air circulation.
Technical specifications
| Input voltage | 110-220V AC, 50-60Hz |
| Output voltage | 12V DC (adjustable 12-14V) |
| Maximum power | 180W |
| Maximum output current | 15A |
| Casing type | Perforated metal |
| Protection rating | IP20 (indoor use) |
| Dimensions | 200 x 100 x 42 mm |
| Mounting type | Indoor, surface mounting |
| Voltage adjustment | ADJ potentiometer |
| Terminal block type | Input L-N-M, Output COM/+V |
Warranty and Support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. You have the right to return the product within 30 days of receiving the order. Delivery is carried out quickly by national courier with prior telephone confirmation
