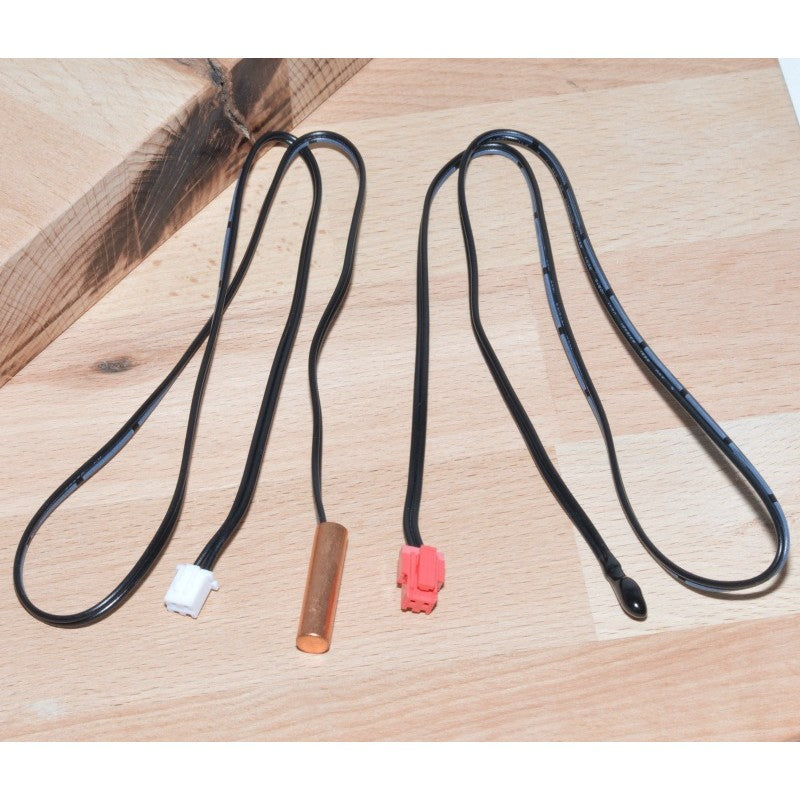

NTC Probe Set + Air Conditioner Sensor, 10K, Copper, 25mm
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

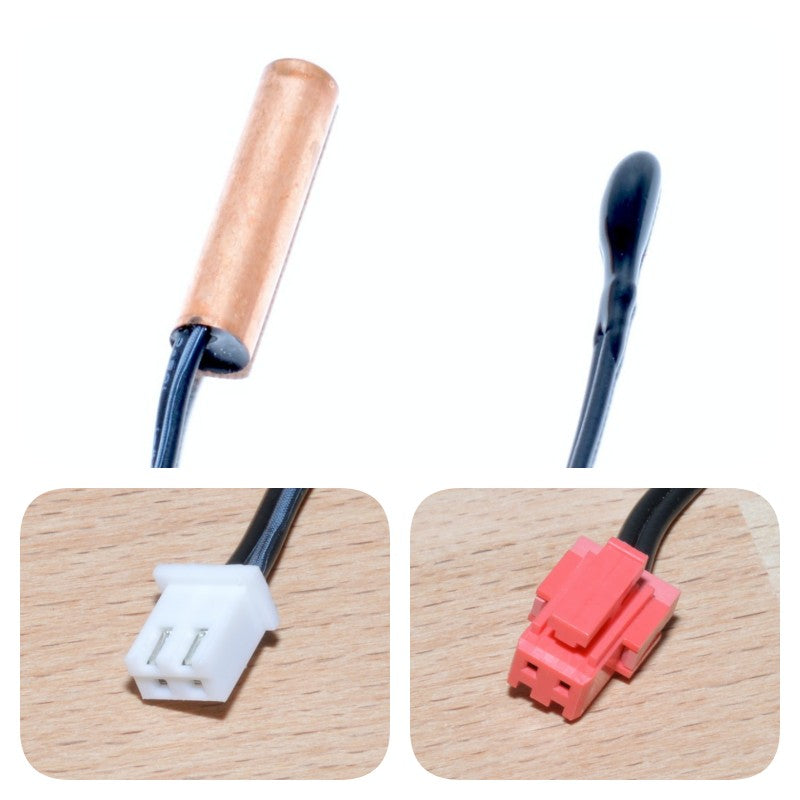

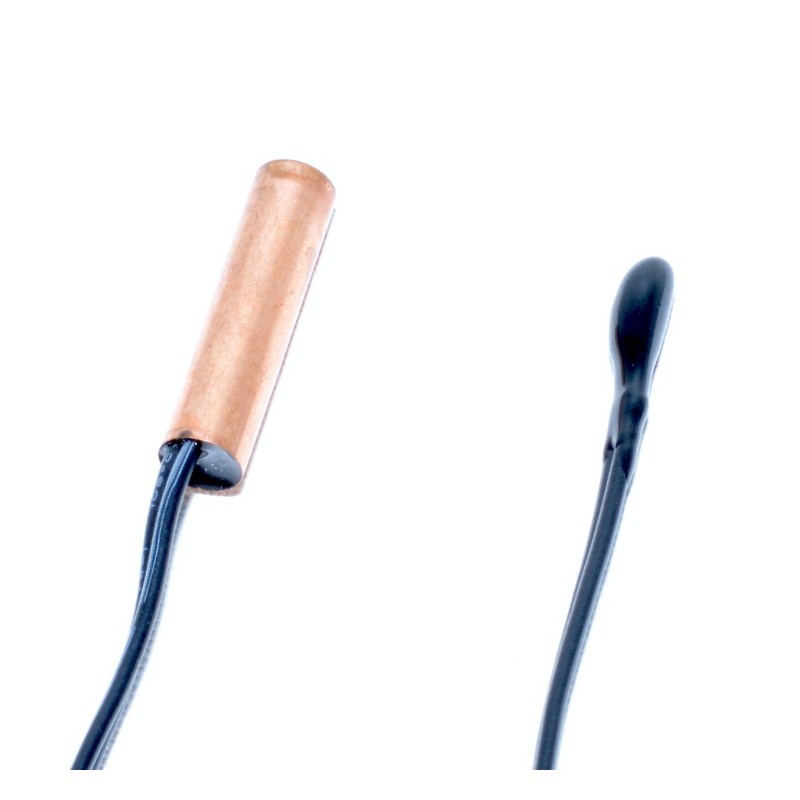

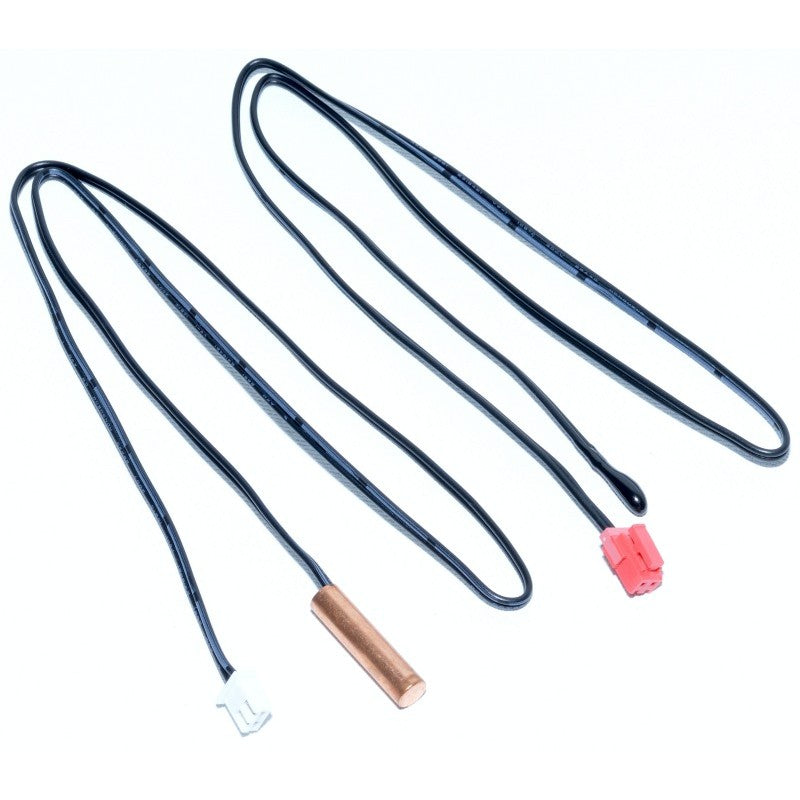

NTC probe and air conditioner temperature sensor
Complete set of 10K NTC probe and sensor for air conditioners, with a 25mm copper probe and 500mm wire. Compatible with most HVAC systems, it provides accurate temperature measurements in the range of -20°C to +105°C. The professional solution for replacing faulty components or upgrading your sensor system.
What you get with this product
- Precise temperature measurements with only 1% tolerance, for efficient climate control
- High-quality copper probe, resistant to corrosion and thermal variations
- 500mm wire for maximum installation flexibility in any type of unit
- Excellent electrical insulation over 100Mohm, guaranteeing safety and durability
- Fast 2-second response to temperature changes for prompt adjustments
- Complete set ready for assembly, no additional components needed
How it works and how to install it
The NTC probe measures temperature by varying electrical resistance and transmits data to the air conditioner's control unit. Installation is done by inserting the copper probe into the unit's measurement slot, connecting the wire to the corresponding terminals, and securing it with the provided clips. The entire process takes less than 15 minutes and can be performed with standard tools. It is recommended to disconnect the power supply before any intervention.
Frequently asked questions
Is it compatible with any air conditioner brand?
Yes, the 10K NTC probe is the standard used by most HVAC system manufacturers. However, please check your unit's specifications before ordering.
What does NTC 10K mean and why is it important?
NTC 10K means that the sensor has a resistance of 10,000 ohms at 25°C, with a 1% tolerance. This standard value ensures compatibility with air conditioning electronic circuits.
How resistant is the probe to extreme temperatures?
The probe operates in the range of -20°C to +105°C and withstands thermal dissipation conditions of 5mW/°C, making it ideal for industrial or residential environments.
Technical specifications
| Sensor type | NTC 10K ±1% |
| Probe material | Copper |
| Encapsulation material | Epoxy |
| Probe length | 25mm |
| Probe diameter | 6mm |
| Wire length | 500mm |
| Measurement range | -20°C to +105°C |
| Response time | 2 seconds |
| Insulation resistance | Over 100 Mohm |
| Thermal dissipation | 5mW/°C |
| AC test voltage | 1800V / 1mA / 2 sec |
| Accepted force | 9.8N (1KgF) |
| Package contents | 1x NTC probe + temperature sensor |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. 30-day return policy. Fast courier delivery throughout Romania.
