GX 3-Pin Aviation Connector Set (Female-Male GX16)
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
GX16 3-pin Connector for Secure and Durable Connections
The GX16 3-pin aviator charger connector set includes a female and a male plug, both made of nickel-finished metal, suitable for applications where the connection must withstand vibrations, repeated handling, and various environmental conditions. It is a standard solution used in electronics, audio-video, medical equipment, and control systems, wherever a secure and compact detachable socket is needed.
What you get with this product
- Stable screw-on connection — the plug will not accidentally detach, even in applications with vibrations or repeated mechanical stress
- Complete male-female set in one package — no more searching for separate parts, everything is ready for assembly
- Compatible with a wide range of equipment — microphones, radio stations, medical devices, audio-video systems, and control panels
- Sufficient voltage and current for most signal and light power applications — up to 400V and 5A
- Metallic construction with low contact resistance — minimal circuit losses, clean and repeatable contact
- Standardized compact GX16 dimensions — fits into 16 mm mounting holes, common on industrial panels and enclosures
How it works and how to install it

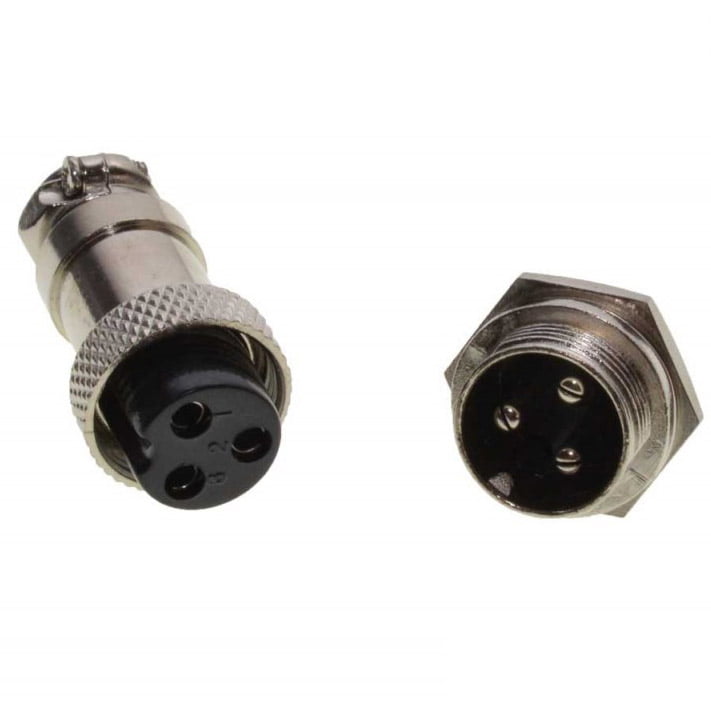

The male plug (panel mount) is secured to the panel or casing with the hexagonal nut included in the package, in a 16 mm hole — a simple operation that does not require special tools. The wires are soldered to the numbered pins of each plug, after which the two parts are coupled by screwing them together, creating a firm mechanical and electrical connection. Disconnecting is just as simple, by unscrewing, allowing for quick maintenance or replacement of connected components.
Frequently Asked Questions
Can this connector be used for charging batteries or solar panels?
Yes, it is compatible with power applications up to 400V and 5A, including low to medium power charging circuits, provided these limits are observed.
What diameter should the mounting hole in the panel have?
The mounting hole must have a diameter of 16 mm, according to the GX16 standard.
Does the package include the wire fixing screws?

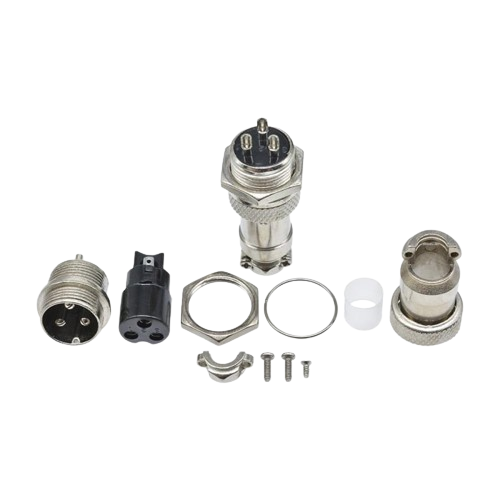

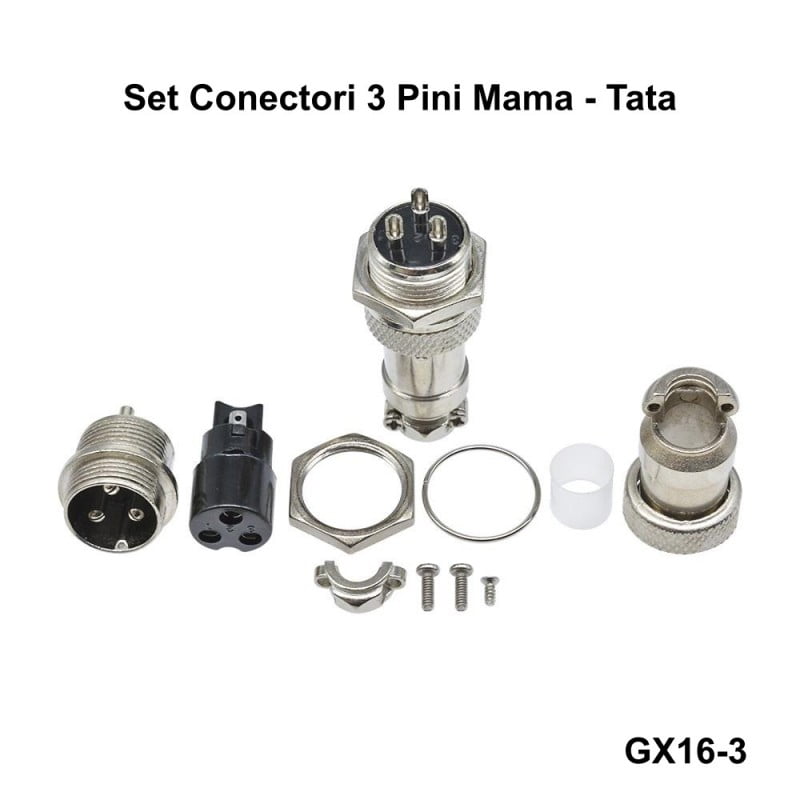

Yes, the set comes complete with all necessary mounting parts: female plug, male plug, locking nut, gasket, and associated screws.
Technical Specifications
| Model | GX16 — Aviator Type |
| Number of pins | 3 |
| Maximum working voltage | 400V |
| Maximum current | 5A |
| Insulator resistance | 500 MOhm |
| Contact resistance | 10 mOhm |

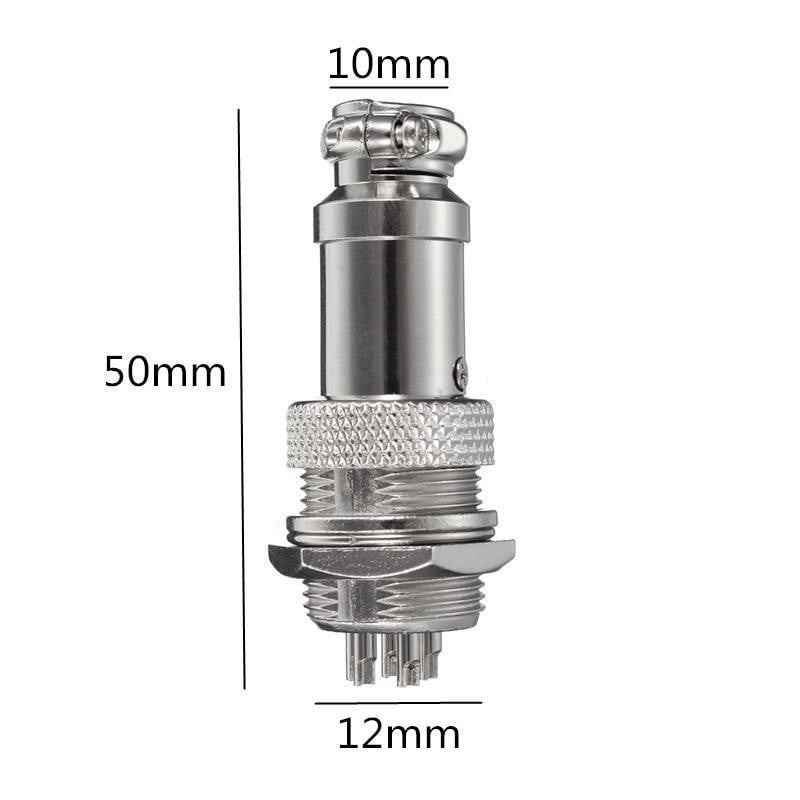

| Total size of assembled set | 50 mm length, 12 mm base, 10 mm head |
| Panel mounting diameter | 16 mm |
| Body material | Metal with nickel finish |
| Package contents | 1 x female plug + 1 x male plug + mounting accessories |
| SKU | Q-12C028 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, no justification required. Delivery is fast by courier, with shipping confirmation and tracking included.
