Aviator Type 7-Pin Connector Set
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

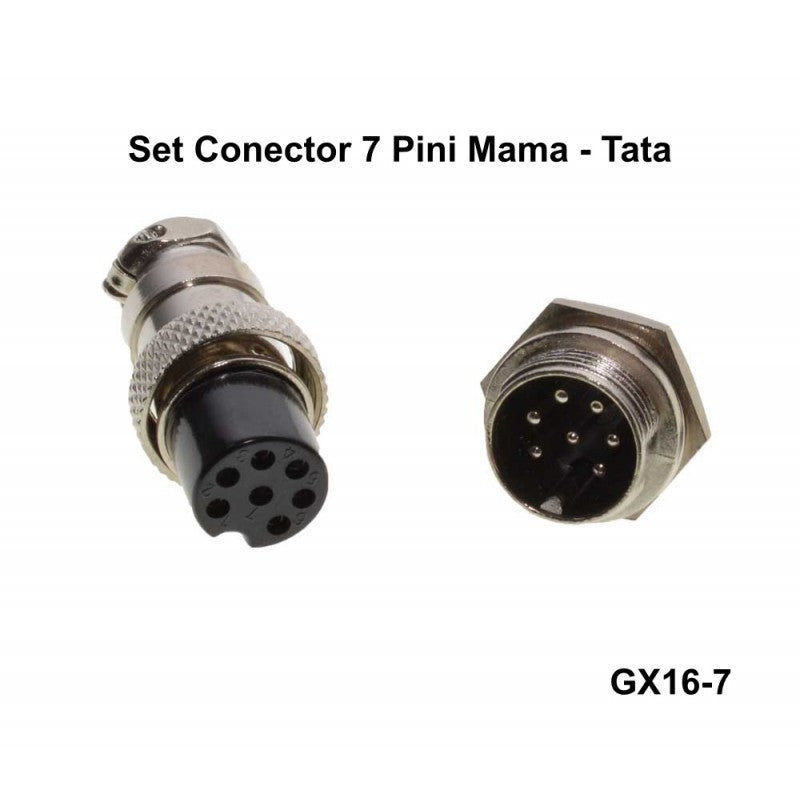

7-pin GX16 Aviator Connector for Reliable Connections
The 7-pin GX16 aviator connector set offers a secure and robust connection solution for applications where connection interruption is not an option. Its metal housing and screw-locking system make it suitable for microphones, transceivers, medical equipment, audio-video systems, and automation installations. The set includes both male and female connectors, ready for immediate use.
What you get with this product
- Stable connection even in vibrating conditions — screw locking eliminates the risk of accidental disconnection
- Complete male-female set in one package — no need to search for components separately
- All-metal housing — superior mechanical resistance compared to plastic versions, long lifespan
- 7 independent pins — sufficient for complex applications with multiple signals or signal-power combinations
- Compatible with a wide range of equipment — GX16 standard recognized in industrial electronics, audio, and automation
- Quick panel mounting — 16 mm mounting diameter fits standard mounting holes
How it works and how to install it
The male connector is mounted on the equipment panel through a 16 mm hole and secured with the hexagonal nut included in the kit. Wires are soldered or crimped onto the numbered pins, according to the desired scheme. The female connector is assembled around the cable, connections are made to the pins, then the two halves are coupled and secured by rotating the threaded ring — the operation does not require special tools and is completed in a few minutes.
Frequently Asked Questions
Can the 7-pin aviator connector be used outdoors or in humid environments?
The metal housing provides good mechanical protection, but this connector does not have IP certification for immersion or water jets. For high humidity environments, additional sealing of the cable at the connector entry is recommended.
What is the maximum cable cross-section the connector pins accept?
The pins are sized for thin wires, typically between 0.14 and 0.5 sq mm, specific to signal and control applications at currents up to 5A per pin.
Is this the same standard as the GX16 plug used for CB radios or studio microphones?
Yes, the connector complies with the GX16 standard with a 16 mm mounting diameter, widely used in microphones, car CB radios, and laboratory equipment.
Technical Specifications
| Model | GX16-7 |
| Number of pins | 7 |
| Maximum operating voltage | 400 V |
| Maximum current per pin | 5 A |
| Insulation resistance | 500 MOhm |
| Contact resistance | 10 mOhm |
| Mounting diameter (grip) | 16 mm |

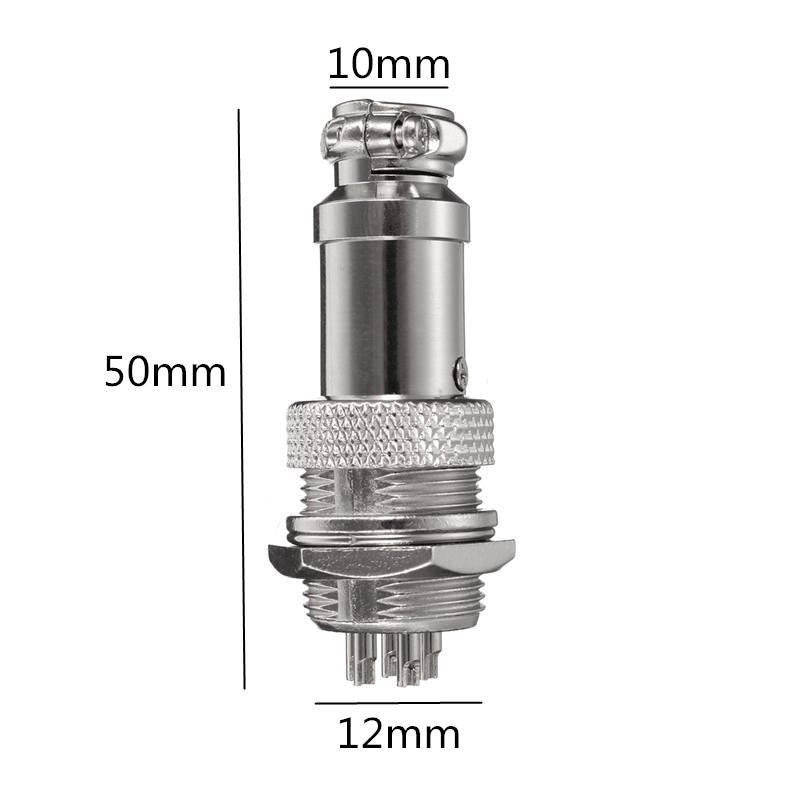

| Total assembled set dimensions | 10 x 12 x 50 mm |
| Housing material | Metal (nickel alloy) |
| Fixing type | Screw (threaded ring) |

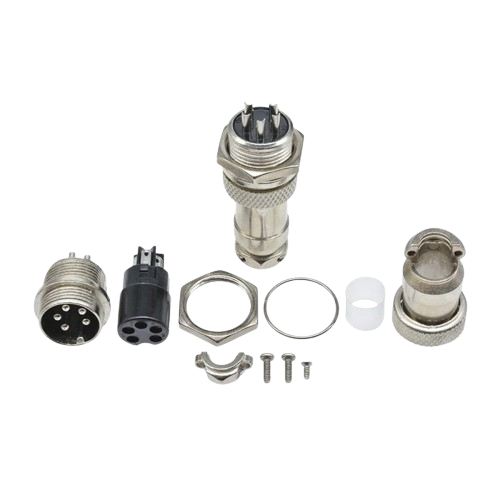

| Package contents | 1 set male + female connector, mounting accessories |
| SKU | Q-12C032 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, without requiring justification. Delivery is made by fast courier, with shipping confirmation and tracking included.
