Industrial Relay 12V-DC / 11P, With Socket, 11 Pin
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

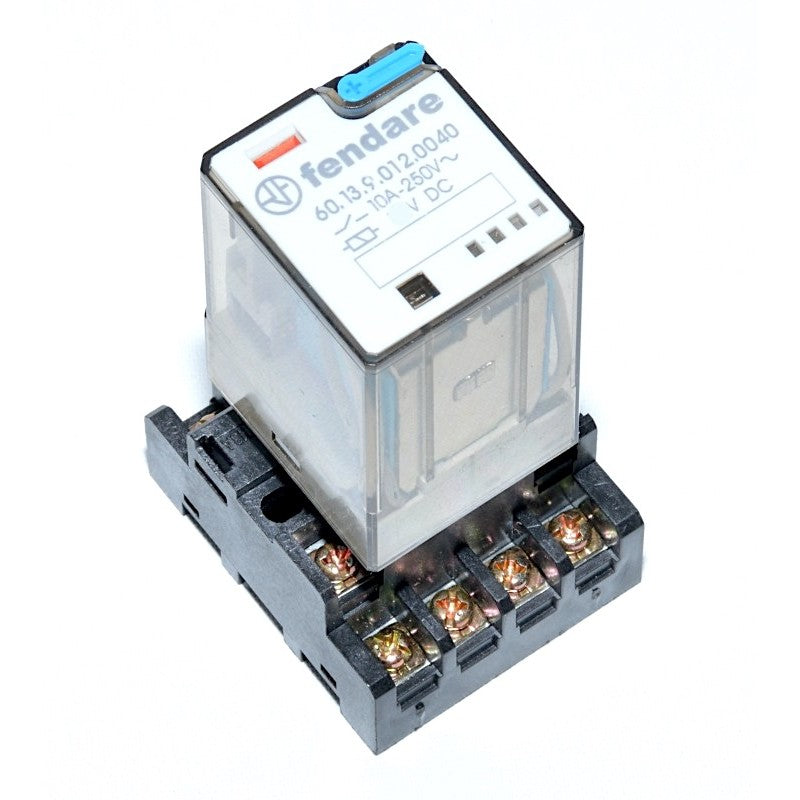

12V-DC Industrial Relay with Socket — secure switching for electrical installations
The 11-pin industrial electromagnetic relay ensures reliable switching of electrical circuits in industrial applications, automation, and control panels. Delivered with its mounting socket, this relay simplifies quick installation and replacement in any configuration. Built for long-term durability and stable performance at loads up to 10A.
What you get with this product
- Quick mounting and replacement — the included socket allows connection without soldering or wiring modifications
- Secure switching up to 10A and 250V AC — suitable for small motors, fans, pumps, and other industrial consumers
- 12V DC compatibility — works with standard power sources in automation and control systems
- Robust ABS construction — withstands vibrations, shocks, and harsh industrial conditions
- 11 contacts for complex configurations — enables advanced switching and protection schemes
- Status LED on the relay body — you can immediately see if the coil is activated and the relay is functioning correctly
How it works and how to install it

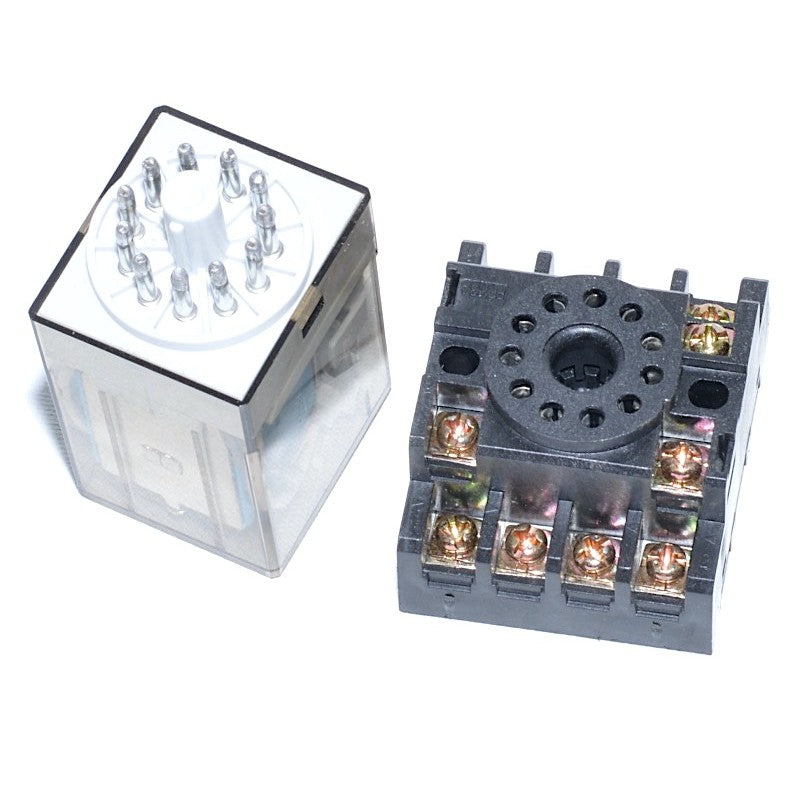

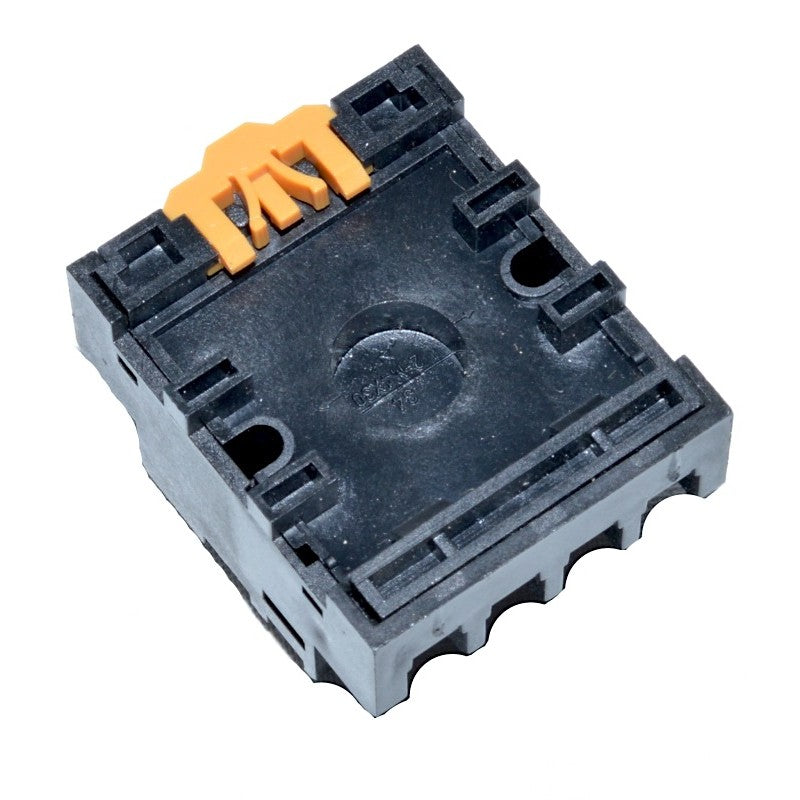

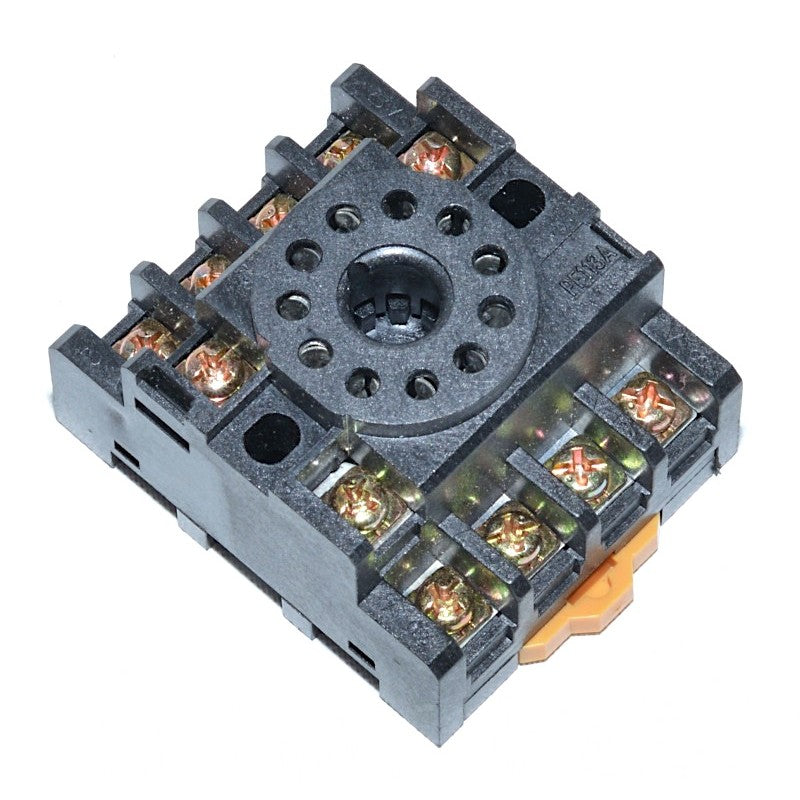

The relay inserts directly into the provided socket, which mounts on a DIN rail or panel with screws. Control and load cables are connected to the socket terminals according to the electrical diagram. When 12V DC voltage is applied to the coil, the relay contacts switch instantly, allowing current to flow through the controlled circuit. Replacing the relay is done by simply removing it from the socket, without any cable disconnection.
Frequently asked questions
Can I use this relay to control a 220V electric motor?
Yes, if the motor consumes less than 10A. Check the motor's label and make sure you do not exceed the relay's nominal current.
Is the socket included or does it need to be purchased separately?
The mounting socket is included in the package, along with the relay. You can mount the assembly immediately upon receipt.
Can the coil be powered by an Arduino or Raspberry Pi?
Not directly — you need a driver module or transistor to switch 12V DC, as microcontroller pins only provide 3.3V or 5V.
Technical specifications
| Coil voltage | 12V DC |
| Coil resistance | 360 Ohm |
| Maximum contact current | 10A |
| Maximum switched voltage | 250V AC / 30V DC |
| Number of pins | 11 |
| Mounting type | Socket included (DIN rail or screw) |
| Dimensions | 36.4 x 32.5 x 54.2 mm |
| Body material | ABS |
| Relay type | Industrial electromagnetic |
| EAN Code | 0781499722290 |
Warranty and support
The product benefits from a 2-year warranty in accordance with Romanian legislation. You have the right to return it within 30 days of receipt. Delivery is fast via a national partner courier.
