Time Relay (Mechanical Timer) 60S/10M/60M/6H
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
ST3P Mechanical Timer with 4 Adjustable Ranges for Automation
This mechanical switching time relay allows you to automate electrical equipment without complex programming. Ideal for controlling heating systems, ventilation, pumps, or industrial lighting, it operates directly at 220V and offers 4 preset intervals: from 60 seconds up to 6 hours. Quick setting via rotary knob, without the need for electronic configuration.
What you get with this product
- Automate any 220V electrical appliance without complicated installation — connect, turn the knob, and the cycle starts
- 4 preset timing intervals (60s, 10min, 60min, 6h) for maximum flexibility in various applications
- Mounting socket included in the package — no need to buy separate parts for installation
- Robust construction with 8 contacts and 3A capacity — manages constant industrial loads
- Mechanical operation without reliance on batteries or vulnerable electronic memories

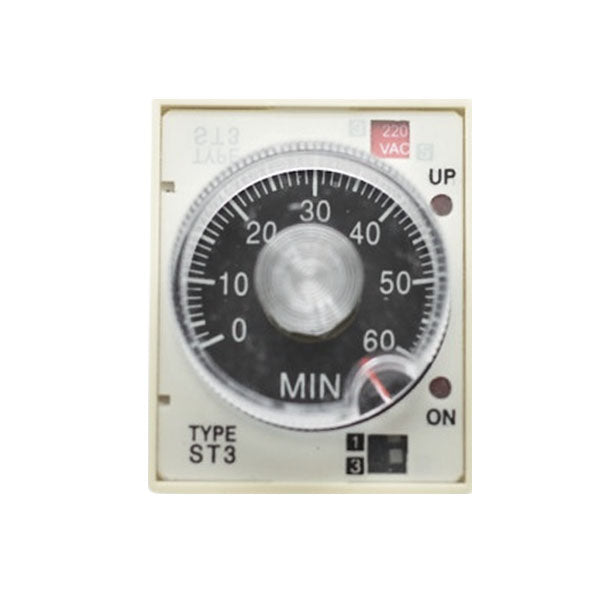

- Clear visualization of remaining time via the graduated analog dial
How it works and how to install it
The timer is mounted on the included socket, which is fixed in the electrical panel or equipment casing. Connect the 220V AC power supply and the load according to the diagram in the image. To activate the cycle, turn the knob to the desired interval (from 60 seconds to 6 hours), then press the ON position. The relay automatically switches the contacts and returns to zero at the end of the set time. No calibration or programming is required.
Frequently Asked Questions
Can I use this timer for LED bulbs or motors?
Yes, it supports inductive loads up to 3A at 200V AC. Check your equipment's amperage before connecting.
Does it reset automatically, or do I have to turn the knob each time?
At the end of the cycle, it returns to the zero position. For a new cycle, you need to turn the knob again to the desired interval.
Does it come with a mounting socket, or do I have to buy it separately?

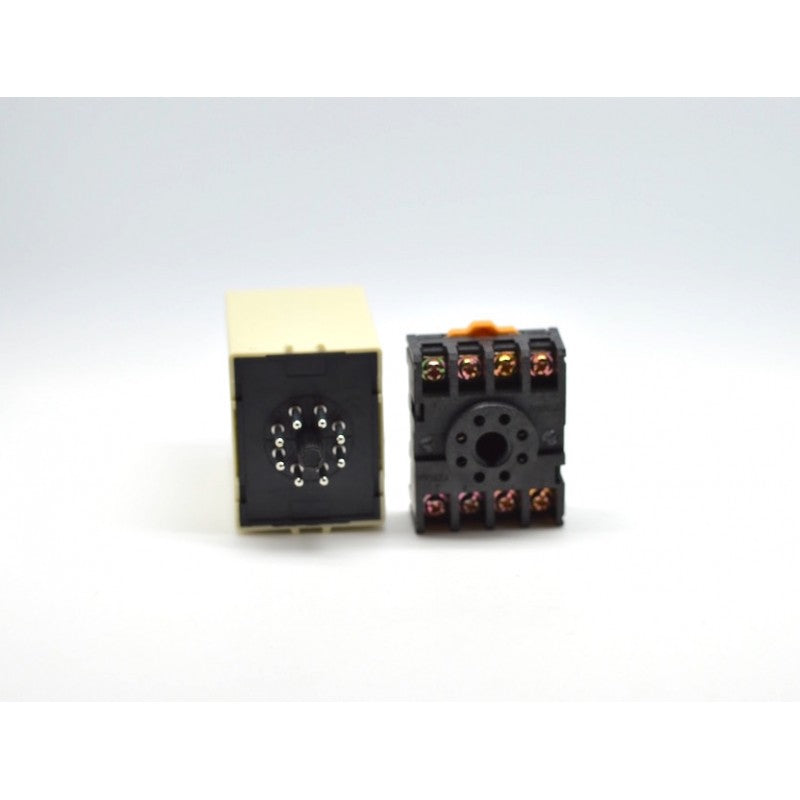

The MF 6950 socket is included in the package. You receive both the relay and the mounting support.

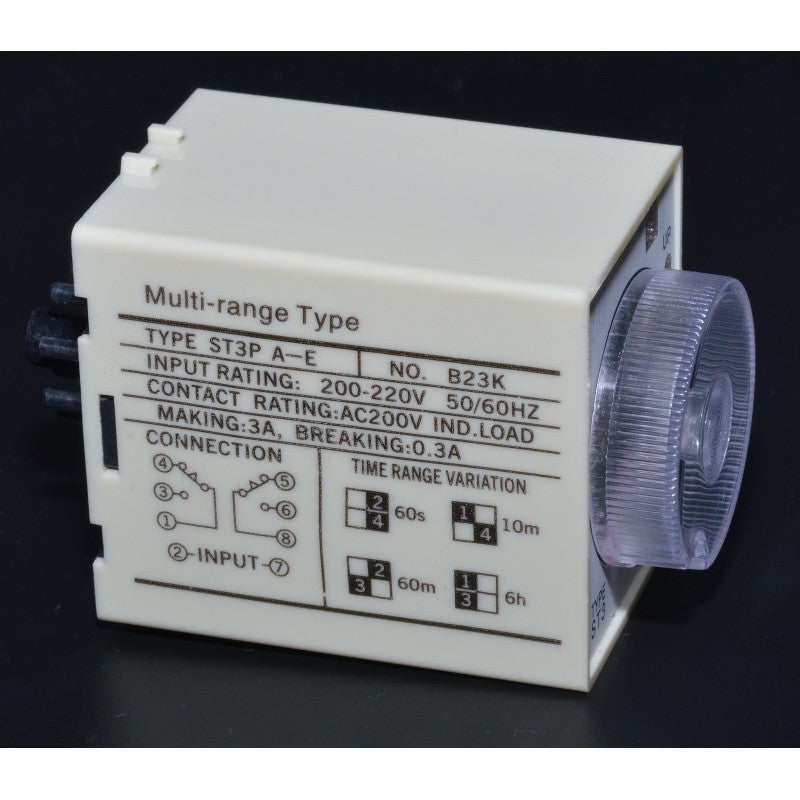

Technical Specifications
| Model | ST3P A-F (type B23K) |
| Supply voltage | 200-220V AC 50/60Hz |
| Contact rating | AC200V IND. LOAD |
| Maximum current | 3A (making) / 0.3A (breaking) |
| Number of contacts | 8 contacts |
| Timing ranges | 60 seconds / 10 minutes / 60 minutes / 6 hours |
| Switching type | Mechanical (no batteries) |
| Dimensions | 40 x 50 x 80 mm |
| Compatible socket | MF 6950 (included) |
| Package contents | 1x ST3P timer + 1x mounting socket |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. You have the right to return within 30 days of delivery. Installation must be carried out by a qualified person to maintain warranty validity. Fast delivery by national courier.
