Time Delay Relay, Interval and Mode, DIN Rail Mounting, TBT7-A1
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
Programmable Time Relay with 10 Modes for Industrial Automation
The TBT7-A1 time relay is the professional solution for automated control of electrical equipment according to your schedule. Mounted on a standard DIN rail, the device offers 10 operating modes and adjustable intervals from 0.1 seconds to 10 days, making it ideal for industrial, commercial, and residential applications. Compatible with 12-240V AC/DC, it eliminates the need for additional adapters.
What you get with this product
- Complete automation without manual intervention — you program once, and the equipment operates according to the set schedule
- Maximum versatility with 10 operating modes — from simple delay to complex repetitive cycles
- Quick mounting on standard DIN rail — installs in the electrical panel in less than 5 minutes, without special tools
- Ultra-flexible time interval from 0.1 seconds to 10 days — suitable for any application from short pulses to weekly scheduling
- Universal power supply 12-240V AC/DC — works with any voltage within this range, without an external transformer
- Energy bill savings — automatically turns off equipment after the set time, eliminating unnecessary consumption
How it works and how to install

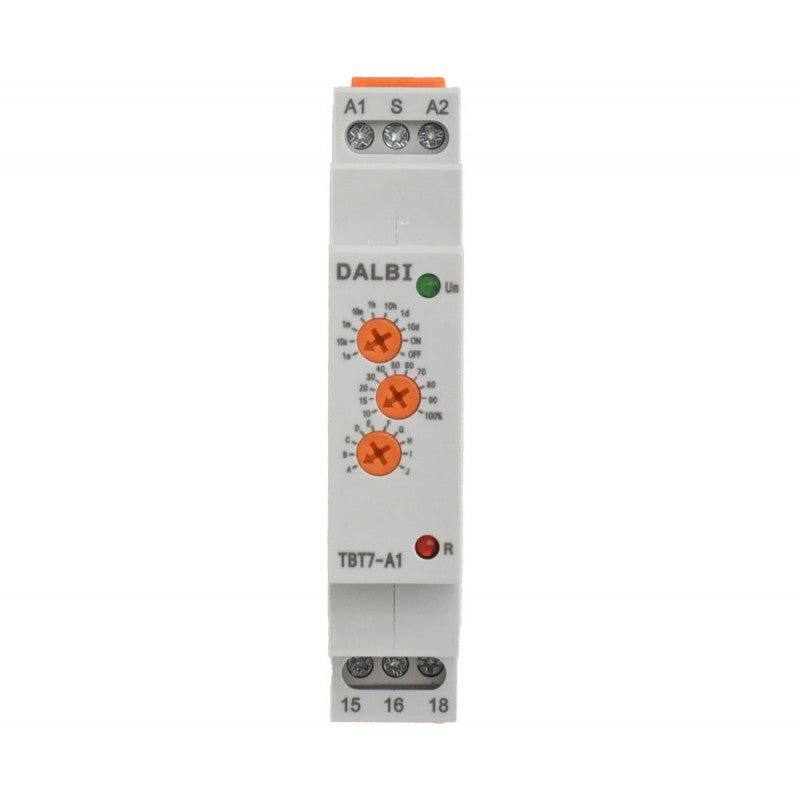

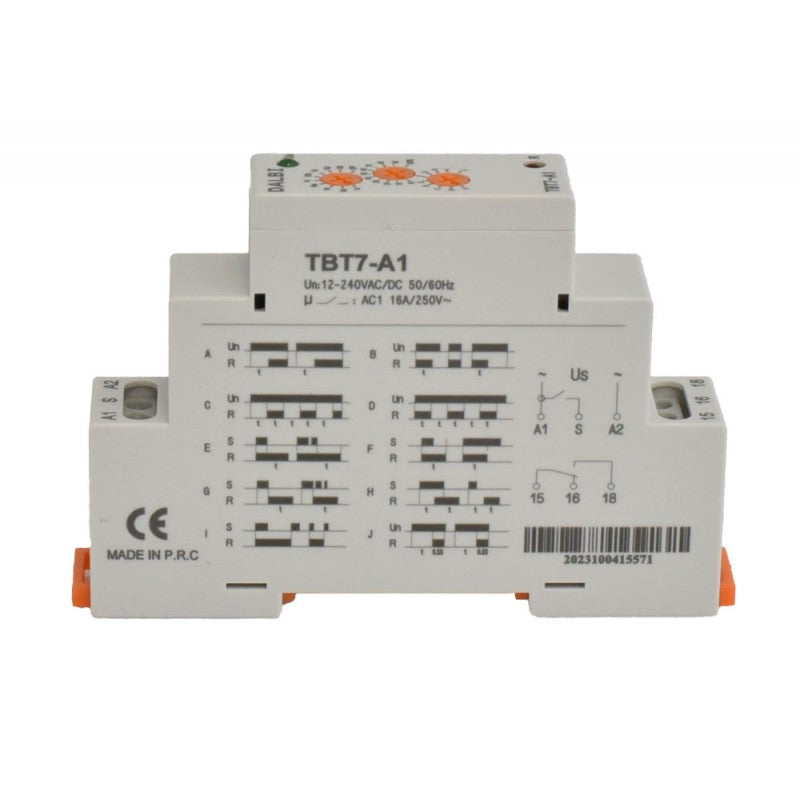

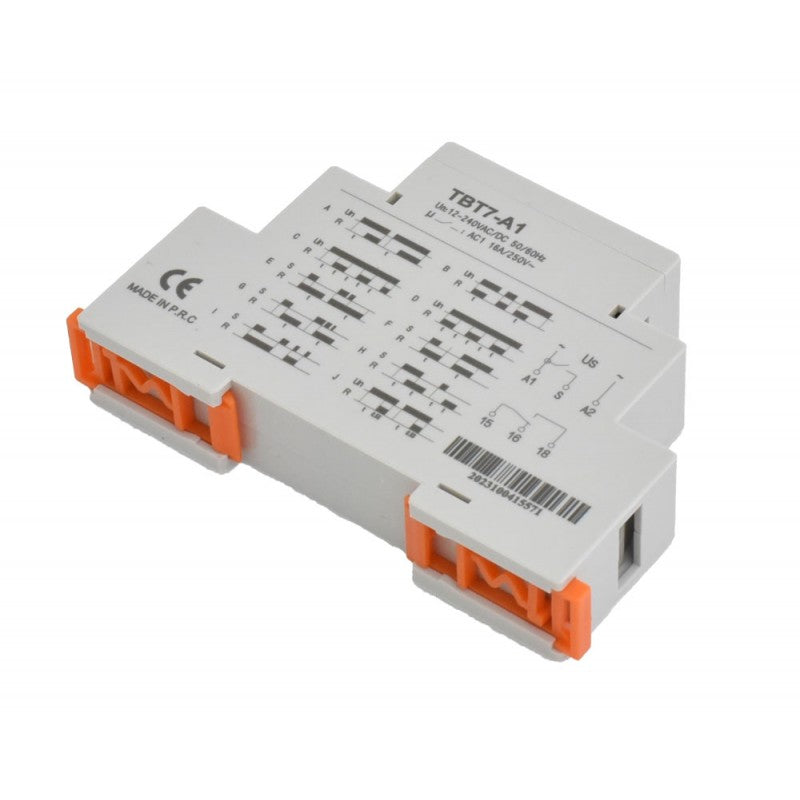

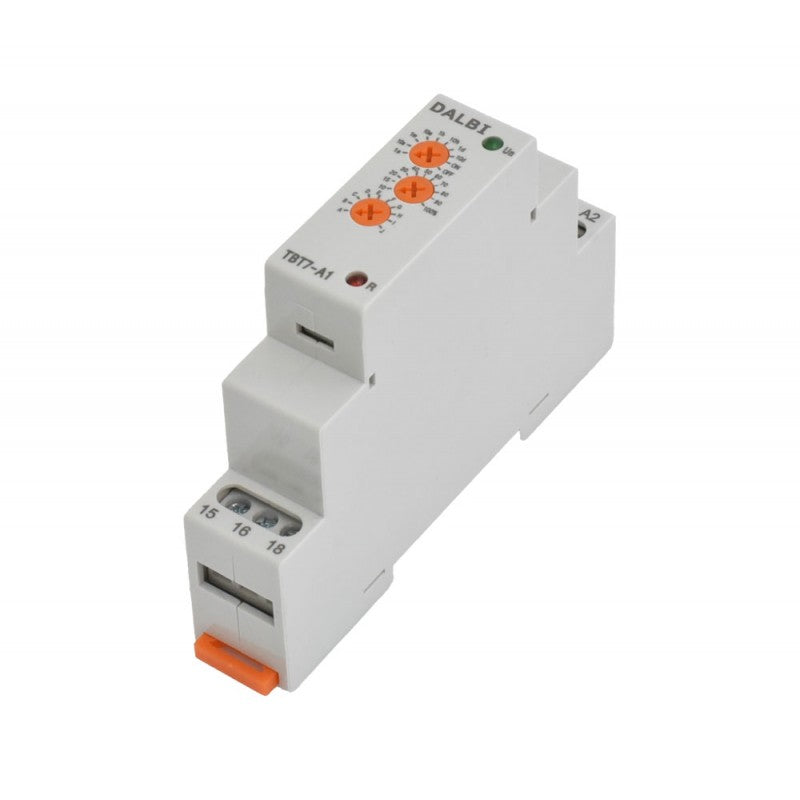

The relay is mounted on the DIN rail in the electrical panel by clip fastening, and connections are made to the lower and upper terminals according to the diagram on the casing. You set the desired operating mode using the dedicated switches, and the three orange potentiometers allow precise adjustment of time intervals. The green LED indicates power, and the red LED shows the relay status. The reset time is under 200ms, ensuring a quick reaction to commands.
Frequently Asked Questions
Can I use the relay with both AC and DC current?
Yes, the TBT7-A1 works with both types of current in the 12-240V range, without additional settings.
Is it complicated to program the time intervals?
No, you use the three orange potentiometers on the front of the relay for quick adjustment, without complex electronic programming.
At what temperature can it operate safely?
The relay operates stably between -20°C and +55°C, making it suitable for both outdoor installations and industrial panels.
Technical Specifications
| Model | TBT7-A1 |
| Supply Voltage | 12-240V AC/DC |
| Frequency | 50-60Hz |
| Power Consumption | 6VA / 1.3W |
| Adjustable Time Interval | 0.1 seconds - 10 days |
| Number of Operating Modes | 10 programmable modes |
| Reset Time | Max 200ms |
| Operating Temperature | -20°C to +55°C |
| Accepted Cable Cross-section | 1x2.5mm² / 2x1.5mm² |
| Dimensions | 94 x 18 x 64 mm |
| Mounting Type | Standard DIN rail |
| LED Indicators | Green (power), Red (relay status) |
| Certification | CE |
Warranty and Support
The product benefits from a 2-year warranty in accordance with Romanian law. You have the right to return within 30 days of purchase. Delivery is fast via courier throughout the country.
