Push Button 25mm/24V White LED
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

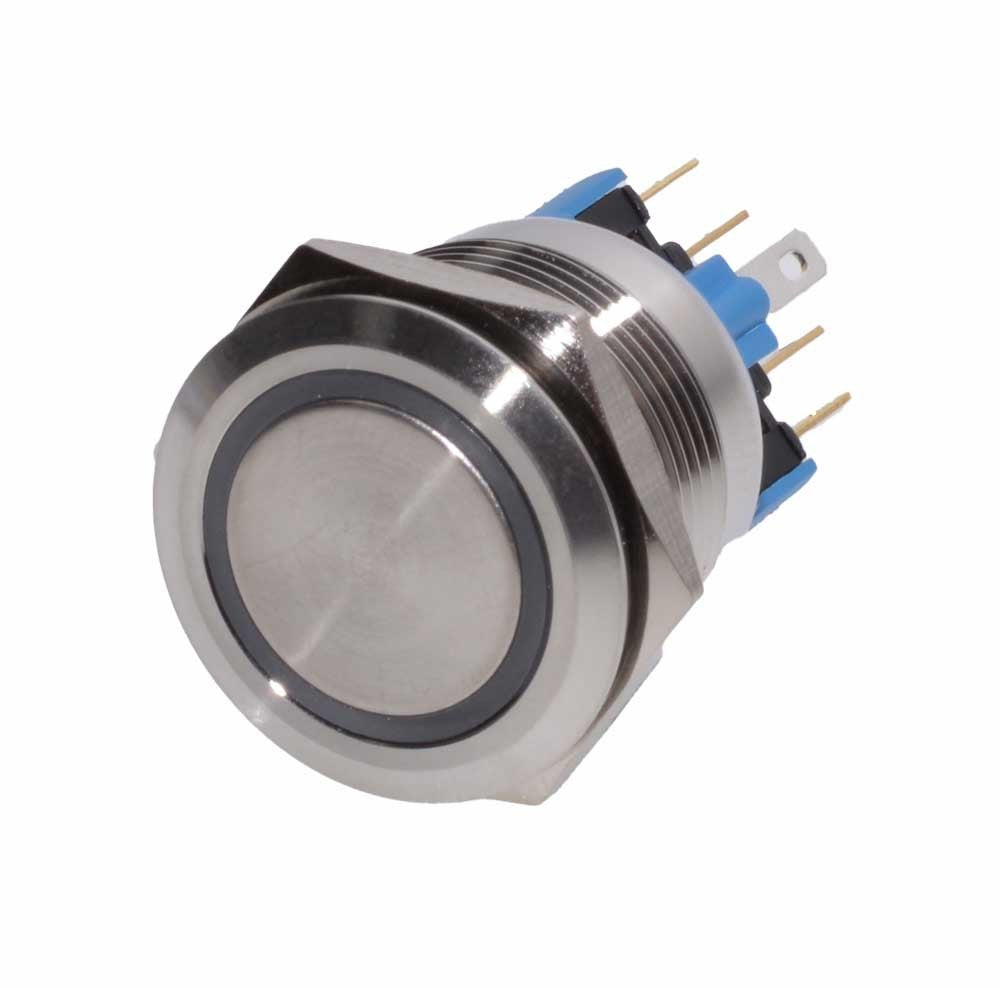

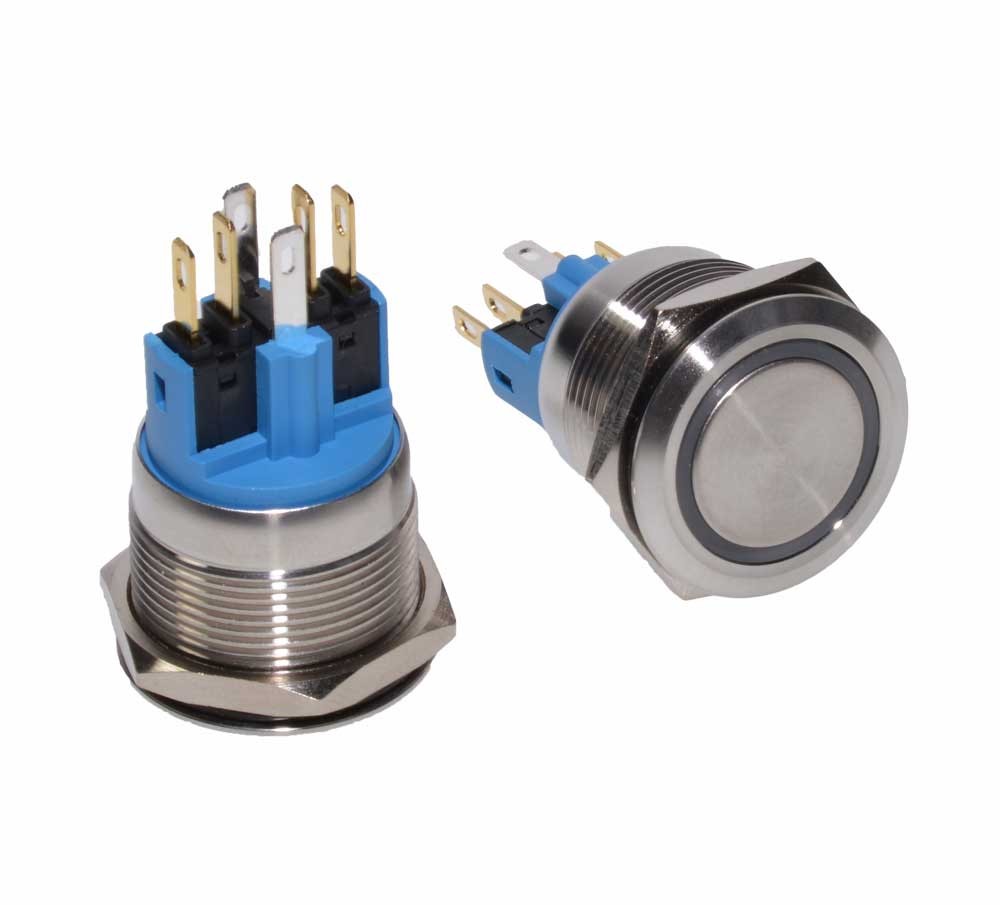

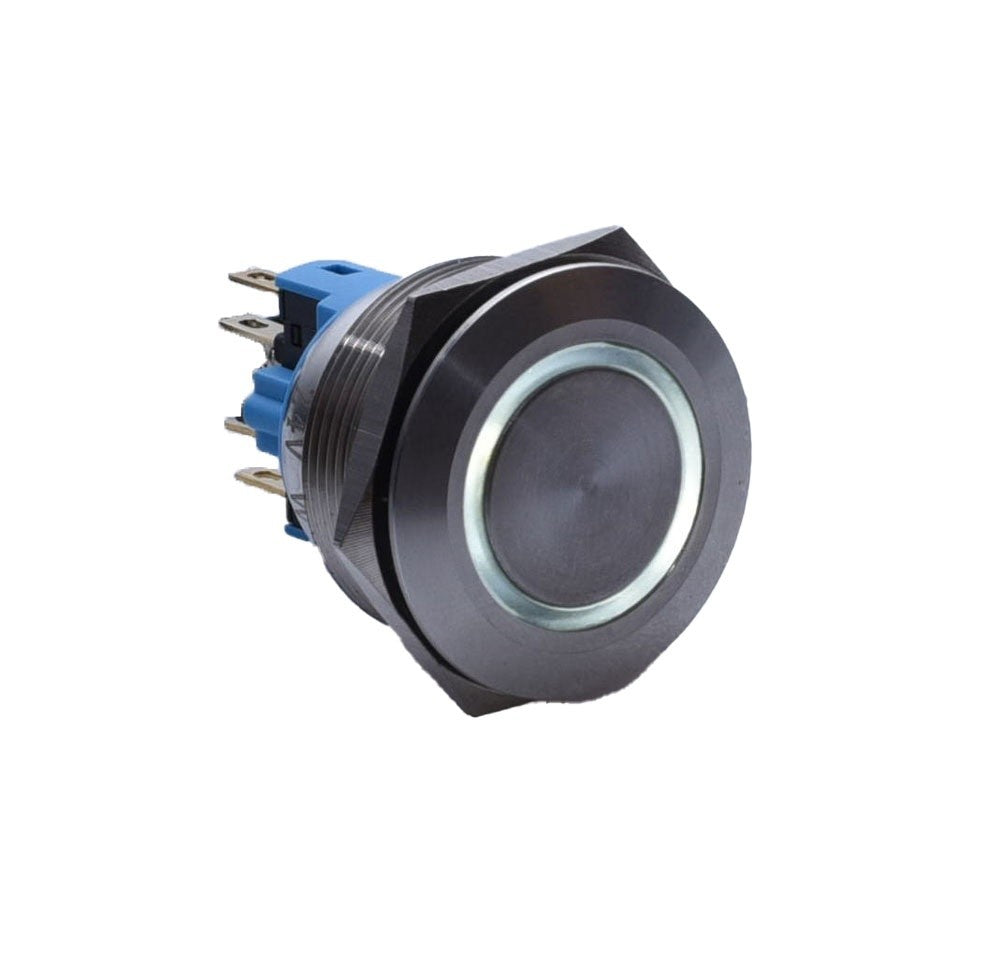

25mm Metal Push Button with White LED, Robust and Reliable
The 25mm metal push button with white 24V LED is the right solution for industrial control panels, car washes, elevators, and machinery that require a robust and visible switch in all conditions. The stainless steel body with a quality finish and the white illuminated ring make it easy to identify and operate, even in low-light environments. Its vandal-proof construction and IP67 protection rating guarantee reliable long-term operation, regardless of environmental conditions.
What you get with this product
- High resistance to mechanical wear — 500,000 guaranteed operating cycles, suitable for intensive use in industrial applications
- Complete protection against water and dust — IP67 rating, works flawlessly in car washes, outdoors, or wet environments
- Clear visual identification — the white LED ring with a lifespan of over 50,000 hours permanently indicates the active status of the equipment

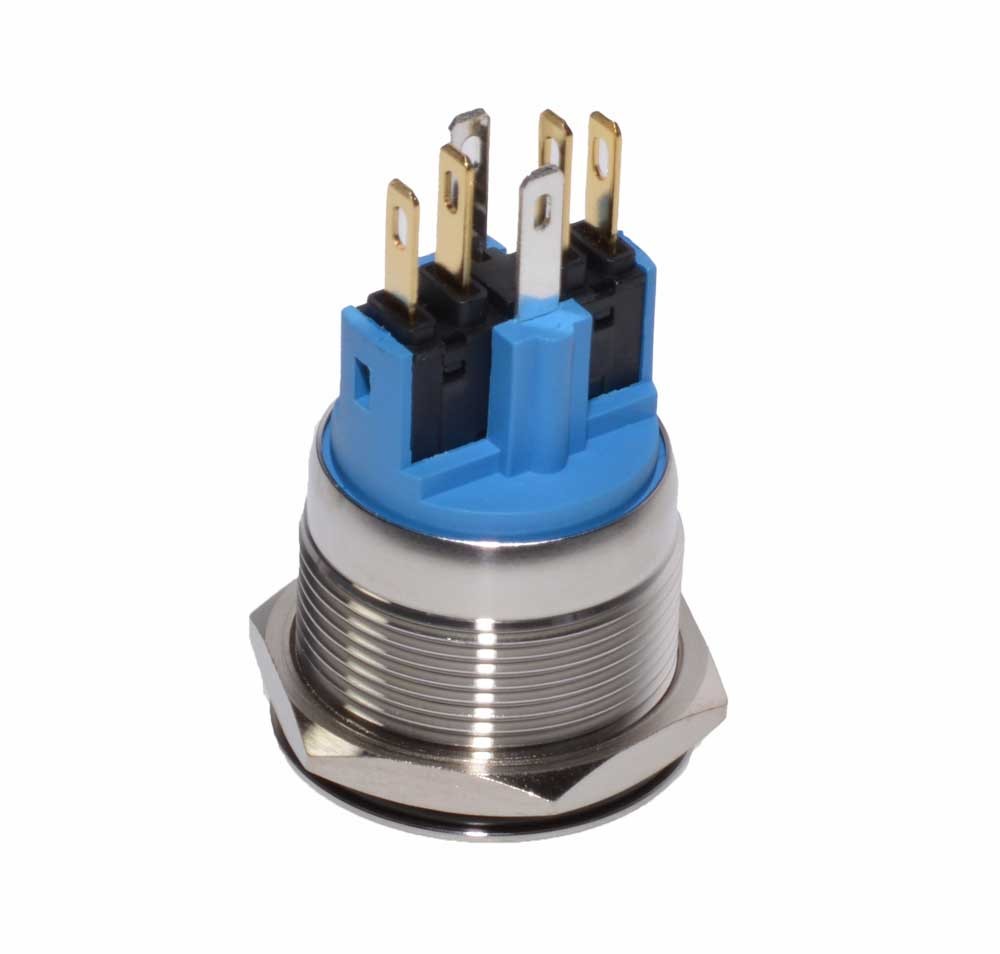

- Simple and flexible connection — 6 pins with 1NO 1NC configuration allow rapid integration into complex circuits without additional adaptations
- Vandal-proof stainless steel body — resists mechanical impact (IK09) and corrosion, ideal for publicly accessible panels
- Direct mounting without special tools — removable nut and rubber gasket included, compatible with standard 25mm holes
How it works and how to install
The 25mm push button operates momentarily — when pressed, it closes or opens the circuit, and when released, it automatically returns to its initial position, with a stroke of 2mm. Installation is done by inserting the button into a 25mm hole, securing it with the included nut, and connecting the 6 pins to the control circuit, according to the 1NO 1NC configuration. No special tools are required, and the rubber gasket ensures immediate sealing upon installation.
Frequently asked questions
Can this button be used outdoors or in wet environments?
Yes, the IP67 protection rating means the button is dust-tight and resistant to temporary immersion in water, making it suitable for car washes, outdoor panels, or wet industrial environments.
What voltage does the LED require and how many pins does the button have?
The LED is powered by 24V DC, and the button has 6 pins with a 1NO 1NC configuration, covering both the control circuit and the illumination power supply.
Does the button stay pressed or does it return automatically after being pressed?
The function is momentary — the button automatically returns to its initial position immediately after release, without remaining locked in the pressed position.

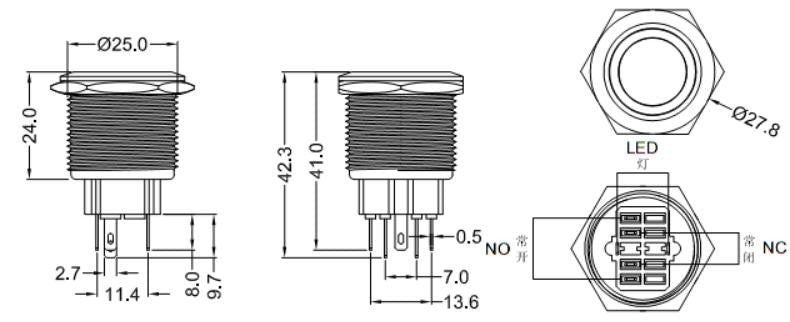

Technical specifications
| Diameter | 25mm |
| LED supply voltage | 24V DC |
| LED color | White |
| Function | Momentary (automatic return) |
| Connection terminals | 6 pins — 1NO 1NC |
| Protection rating | IP67 / IK09 |
| LED lifespan | over 50,000 hours |
| Mechanical lifespan | 500,000 cycles |
| Dielectric lifespan | 200,000 cycles |
| Operating travel | 2.0mm |
| Operating pressure | 500gf |
| Contact resistance | max. 50 mOhm |
| Operating temperature | -20°C / +85°C |
| Tightening torque | 5 - 14 Nm |
| Body material | Stainless steel |
| Contacts | Silver alloy |
| SKU | Q-6D062 |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, without additional explanations. Delivery is carried out quickly by courier, with shipping confirmation and tracking included.
