Digital Time Programmer with Relay
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

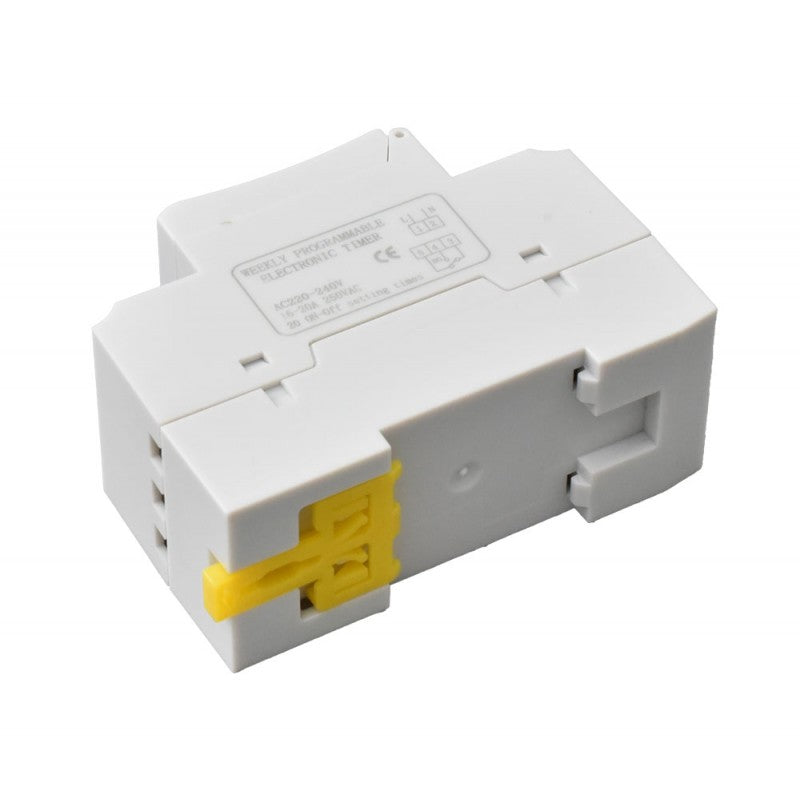

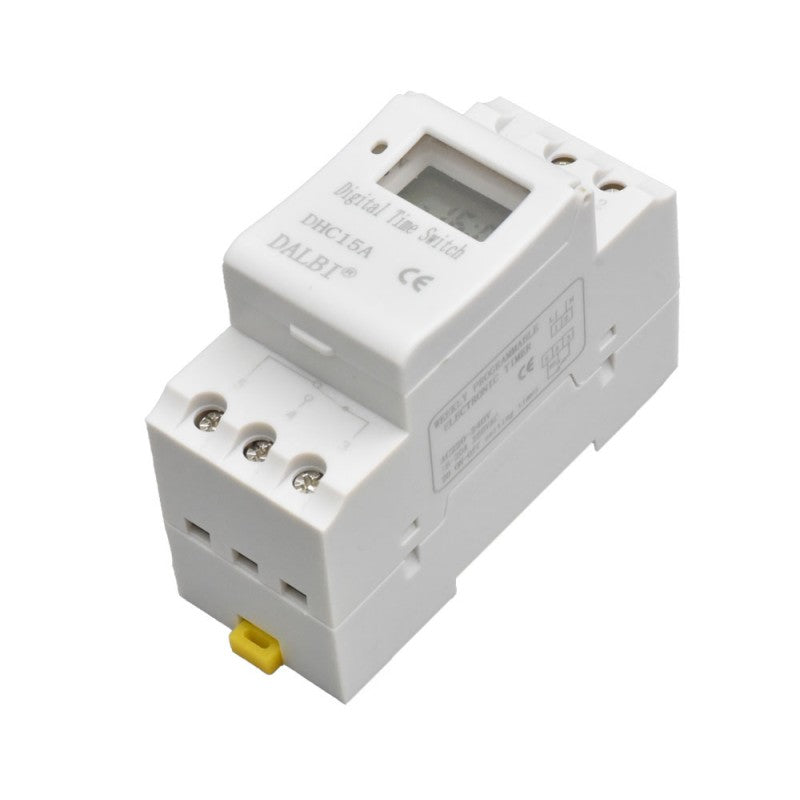

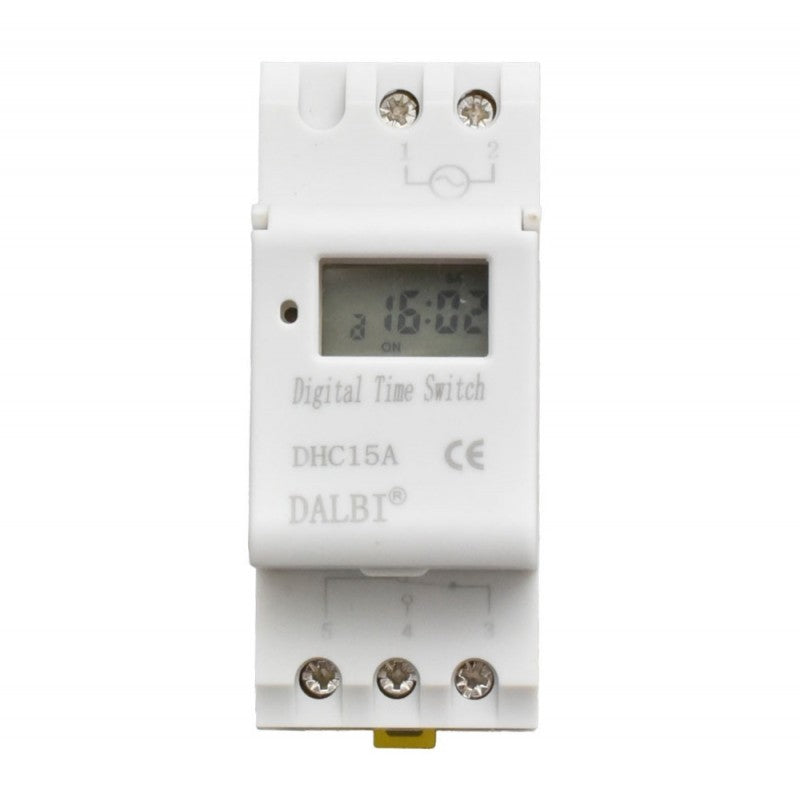

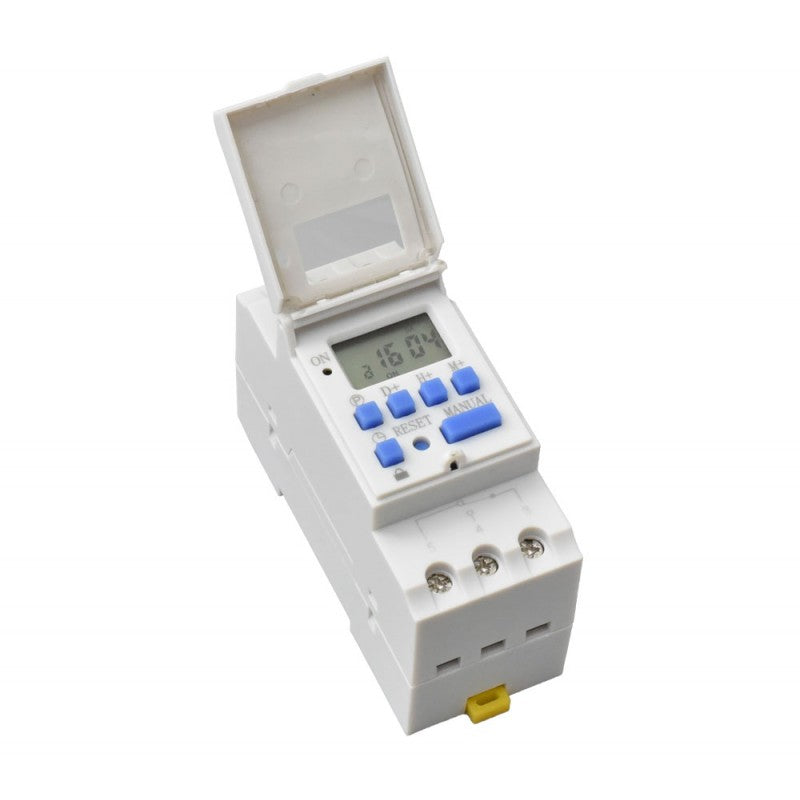

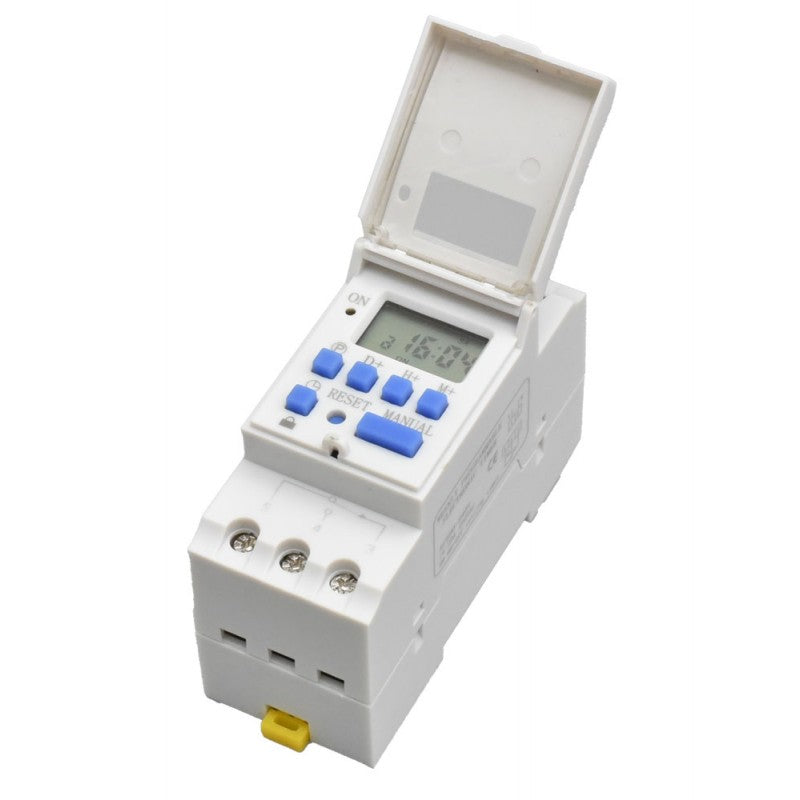

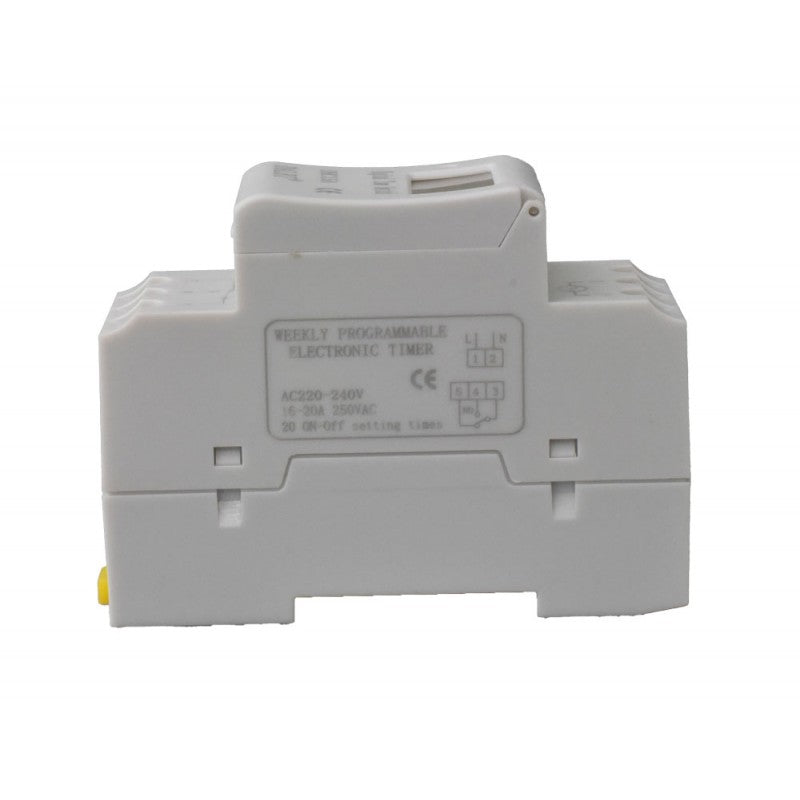

Digital time relay programmer for smart automation
This DHC15A digital time relay programmer allows you to fully automate lighting, heating, ventilation, or irrigation systems in your home or business. You configure the on/off schedules once, and the device executes them automatically, daily, without your intervention. Ideal for reducing energy consumption and increasing comfort in any residential or commercial space.
What you get with this product
- Substantial electricity savings by automatically turning equipment on and off exactly when you need it
- Simple setup via LCD screen and intuitive buttons — set up to 20 on/off programs per day for maximum flexibility
- Energy security through an internal backup battery that retains all settings even during power outages
- Quick installation on standard DIN rail in the electrical panel — no structural modifications or complex wiring required
- High precision with an error of only 0.2 seconds per day, ensuring perfect synchronization of your programs
- Complete versatility for various applications: lighting, water pumps, heating, ventilation, industrial installations
How it works and how to install it
The programmer is mounted directly on the DIN rail in the electrical panel, connecting to the circuit you want to control. Using the LCD screen and dedicated buttons, you configure the desired on and off times for each day. The internal relay automatically switches the electrical load according to the set schedule. The device can operate in automatic, manual, or semi-automatic mode, offering you complete control. The 40mAh internal battery keeps all settings in memory even in the event of a power outage, so you don't have to reconfigure anything.
Frequently asked questions
Can I set different programs for each day of the week?
Yes, the programmer allows configuring up to 20 on/off cycles per day, and the settings can be adapted for different days according to your needs.
What happens to my settings if the power goes out?
The 40mAh internal battery keeps all programs and the current time in memory, so the device resumes normal operation as soon as power returns, without losing any configuration.
What maximum power can I connect to this programmer?
The integrated relay supports loads of up to 16-20A at 220-240V AC, which is sufficient for most medium-power household and commercial equipment.
Technical specifications
| Model | DHC15A |
| Supply Voltage | AC 220-240V |
| Maximum Current | 16-20A |
| Frequency | 50/60Hz |
| Number of Programs | 20 on/off cycles per day |
| Accuracy Error | 0.2 seconds per day |
| Display | LCD |
| Backup Battery | 40mAh |
| Mounting | Standard DIN Rail |
| Certification | CE |
Warranty and Support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. You have the right to return the product within 30 days of receipt. Delivery is carried out quickly by national courier, with confirmation upon placing the order.
