Double UTP Outlet 2 x 8P8C/CAT5
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

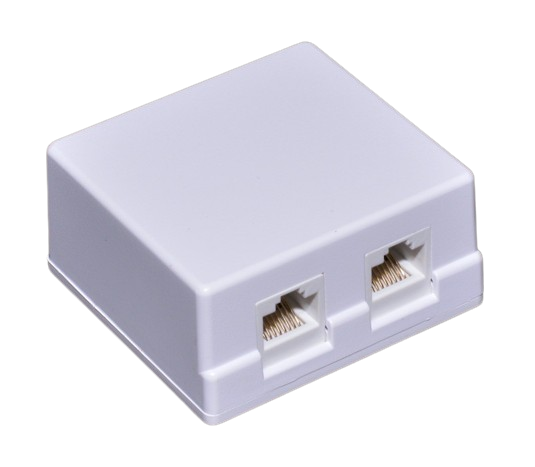

UTP 8P8C Dual Socket for Cat5 Data Networks
The UTP 2 x 8P8C dual network socket is a practical solution for internet and data access points in residential, office, or industrial spaces. Its white surface-mounted casing installs directly on the wall without a recessed box, providing two ready-to-use RJ45 ports. UTP or FTP cables are connected via punch-down terminals, without the need for special tools.
What you get with this product
- Two network ports in one socket — connect two devices simultaneously to the local network without an additional switch
- Quick surface mounting — fixes to any surface with screws or double-sided adhesive tape, without breaking the wall
- Secure connection via punch-down terminals — UTP or FTP cable is firmly secured without soldering
- Compatible with Cat5, Cat5e, and Cat6 cables — works in networks up to 1 Gbps without signal loss at the connectors
- Closed casing with cover — protects connections from dust and accidental contact, suitable for industrial environments and offices
- Compact white design — integrates discreetly on walls of any color, in factories, businesses, or homes
How it works and how to install it

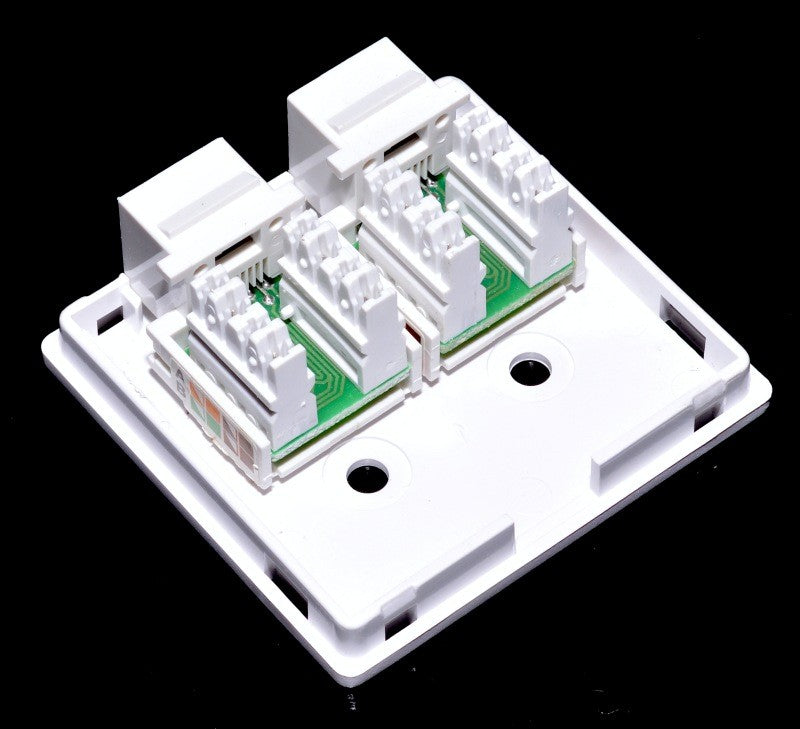

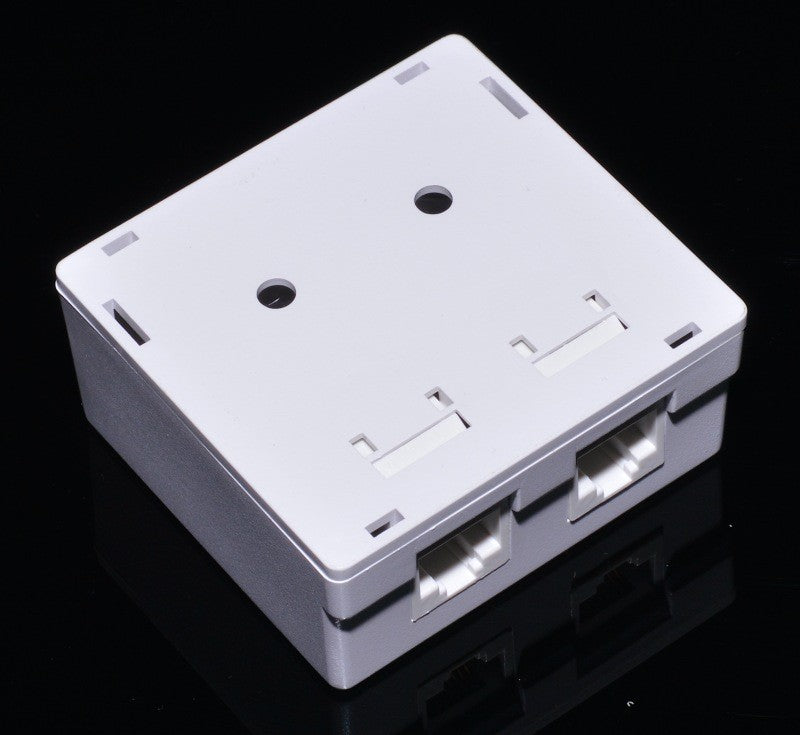

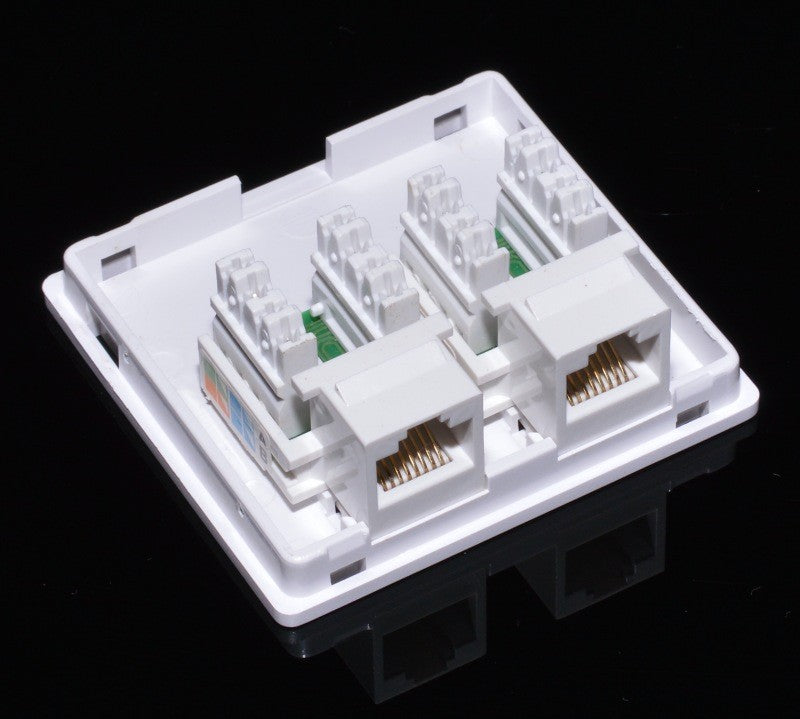

The UTP 8P8C dual socket opens by removing the top cover, which is secured by a clip system. The network cable wires are inserted individually into the punch-down terminals according to the color code marked on the internal PCB, following the T568A or T568B standard, then the cover is closed. The socket is fixed to the wall with two screws through the holes in the base or with double-sided adhesive tape, without the need for a recessed electrical box.
