SMD LED Panel 64 X 64 X 36 Pcs 12V / Power 10W
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun

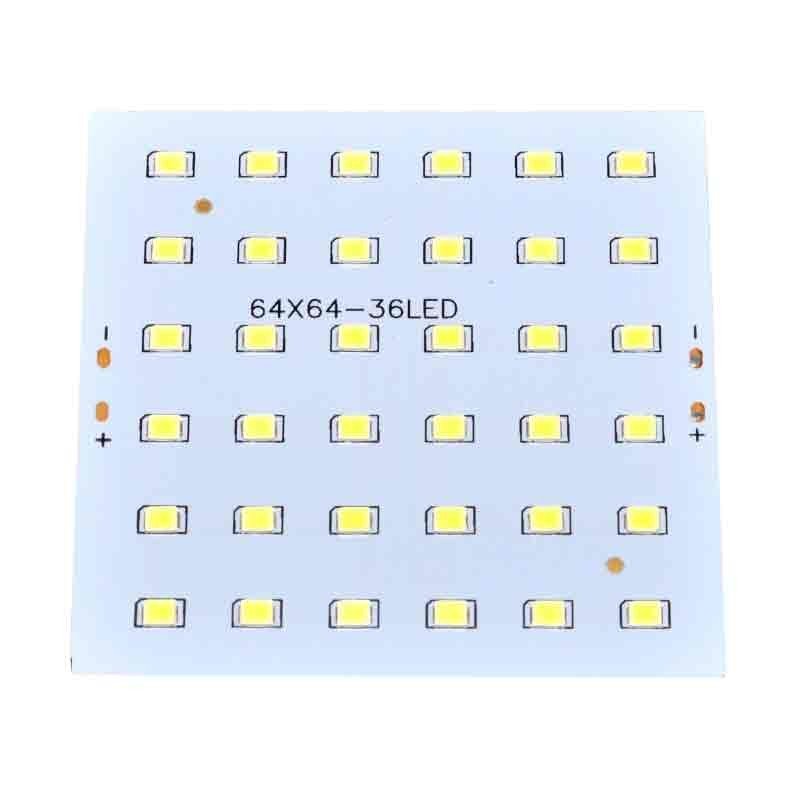

SMD 2835 LED Board for 12V Lighting, 10W
The SMD 2835 LED board, with 36 diodes arranged on a 64x64 mm surface, offers a compact and efficient light source for DIY projects, repairs, and custom lighting applications. Powered by 12V and with a power output of 10W, this LED board is suitable for replacing faulty modules or building custom light fixtures. The cool white light at 6500K ensures clear visibility, ideal for workshops, lighting panels, or technical applications.
What you get with this product
- Direct compatibility with 12V DC sources — easily integrates into existing systems without voltage conversions
- 36 uniformly distributed SMD 2835 LEDs — homogeneous light output, without dark spots or uneven brightness areas
- Compact 64x64 mm format — fits in narrow spaces and directly replaces modules of the same size
- Only 10W consumption for a consistent light output — good energy efficiency relative to the board size
- Integrated aluminum base — passive thermal dissipation without the need for an additional heatsink in standard applications
- 6500K cool white light — suitable for functional lighting in workspaces, display cases, or technical panels
How it works and how to install it
The board connects directly to a 12V DC power source via the two soldering points marked with plus and minus on the PCB. It does not require a dedicated external driver, but it is recommended to use a stabilized 12V power supply to protect the diodes. Mechanical fastening can be done with screws or thermal adhesive applied to the back of the board, ensuring contact with the cooling surface.
Frequently Asked Questions
Does this LED board work without a driver, directly at 12V?
Yes, the board is designed for direct 12V DC power supply. A stabilized power source is recommended to avoid voltage fluctuations that can affect the lifespan of the diodes.
Do I need an additional heatsink for this 10W board?
For continuous use and at maximum power, it is recommended to attach the board to a metal surface or apply a thermal pad for efficient heat dissipation and a longer lifespan.
Can it directly replace a faulty board of the same dimensions?
Yes, if the original board has dimensions of 64x64 mm and operates at 12V, the replacement is direct. Check the polarity before connecting.
Technical Specifications
| LED Type | SMD 2835 |
| Number of LEDs | 36 pieces |
| Supply Voltage | 12V DC |
| Power | 10W |
| Color Temperature | 6500K (Cool White) |
| Individual LED Size | 2.8 x 3.5 mm |
| Board Dimensions | 64 x 64 x 1.3 mm |
| SKU | Q-20C008 |
| Brand | OEM |
| Package Contents | 1 x SMD 36 pcs LED Board |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. You can return the product within 30 days of receipt if it does not meet expectations. Delivery is carried out quickly by courier throughout Romania.
