SMD LED Chip 110V - 220V / Power 30W
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
30W COB LED Chip with Integrated 110V-220V Driver
The 30W SMD LED module with an integrated driver directly on the circuit is the ideal solution for replacing or constructing outdoor and indoor LED floodlights. Compatible with both 110V and 220V networks, this COB module eliminates the need for a separate external driver. Its cool white 6500K emission provides clear light, suitable for technical, architectural, or security lighting.
What you get with this product
- Direct connection to 110V or 220V mains without an external driver — the control circuit is integrated on the board, simplifying installation and reducing installation costs

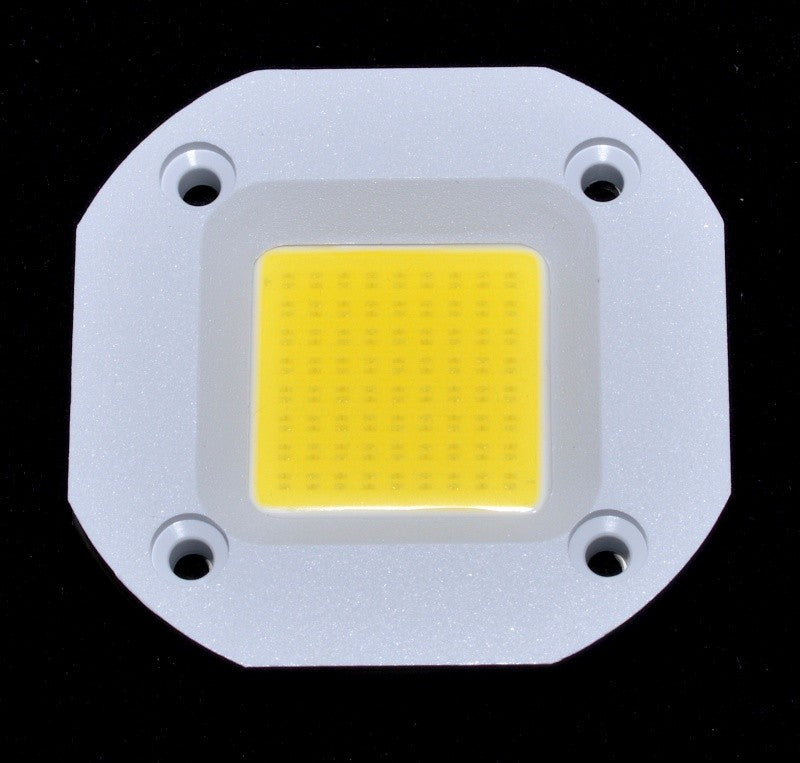

- Uniform and powerful 30W light — the 22x22mm COB surface produces a homogeneous luminous flux, without dark spots or unwanted shadows
- Wide emission angle of 120 degrees — covers large areas without the need for additional optics
- Lifespan of 30,000 hours — you rarely replace the light source, which reduces long-term maintenance costs
- Compatible with a wide range of applications — outdoor floodlights, landscape lighting, billboards, architectural lighting, and stage performances
- Compact dimensions and simple mounting — the 4 mounting holes allow quick attachment to a heat sink or existing housing
How it works and how to install it

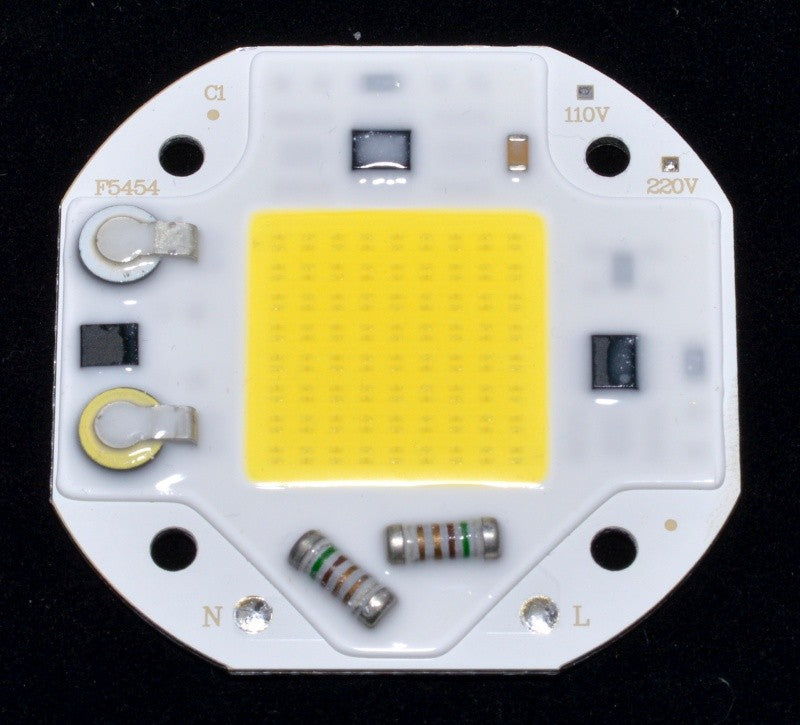

The 30W COB LED module has an integrated control circuit visible on the back of the board, marked with connection points N and L, which connect directly to the neutral and phase wires of the 110V or 220V electrical network, respectively. No external LED driver is required. Installation is done by mechanically attaching the board to a heat sink appropriate for the 30W power, using the 4 corner holes, after which the two power wires are connected to the terminals marked on the board.
Frequently Asked Questions
Do I need a separate LED driver for this module?
No, the driver is integrated directly on the chip board. It connects directly to the 220V mains via the N and L terminals marked on the back.
What type of floodlight or housing can this 30W module be mounted on?
It can be mounted on any LED floodlight housing or heat sink with a mounting surface compatible with the 54x54mm dimensions, including standard 20W-30W floodlights that use a COB chip.
Is thermal paste required for mounting?
Yes, it is recommended to apply a thin layer of thermal paste between the chip and the heat sink to ensure efficient heat dissipation and extend the component's lifespan.
Technical Specifications
| SKU | Q-20C006 |
| Type | COB LED Chip with Integrated Driver |
| Power | 30W |
| Supply Voltage | 110V / 220V AC |
| Color Temperature | 6500K (Cool White) |
| Beam Angle | 120 degrees |
| Lifespan | 30,000 hours |
| LED Chip Size | 22 x 22 mm |
| Total Board Size | 54 x 54 x 4 mm |
| External Driver Required | No |
| Brand | OEM |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. The return policy is valid for 30 days from the date of receipt of the package. Delivery is carried out quickly by courier throughout Romania.
