VC61A Digital Multimeter
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Professional Digital Multimeter for Precise Electrical Measurements
The VC61A digital multimeter is the complete tool for electricians, electronics technicians, and DIY enthusiasts who need precise and fast measurements. With a 1999-count digital display and multiple measurement functions, it solves any electrical troubleshooting or circuit testing problem. Delivered with complete accessories for immediate use.
What you get with this product
- Precise measurements for AC/DC voltage up to 1000V, current up to 20A, and resistance up to 200MΩ in a single compact device
- Automatic overload protection with visual warning and safe operation according to CE certification

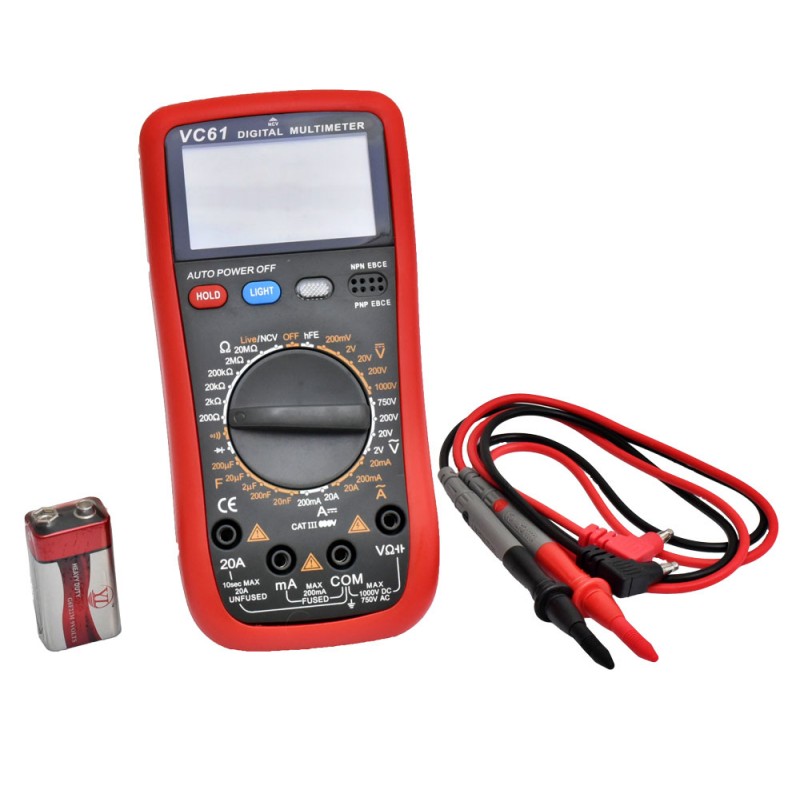

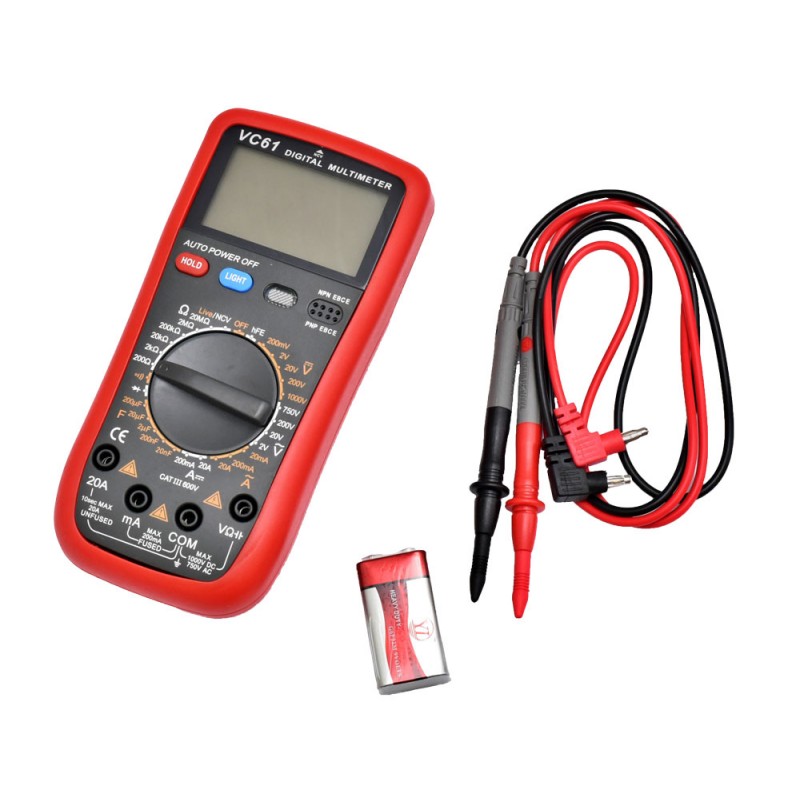

- Complete kit included with professional test leads and a 9V battery, ready to use right out of the box

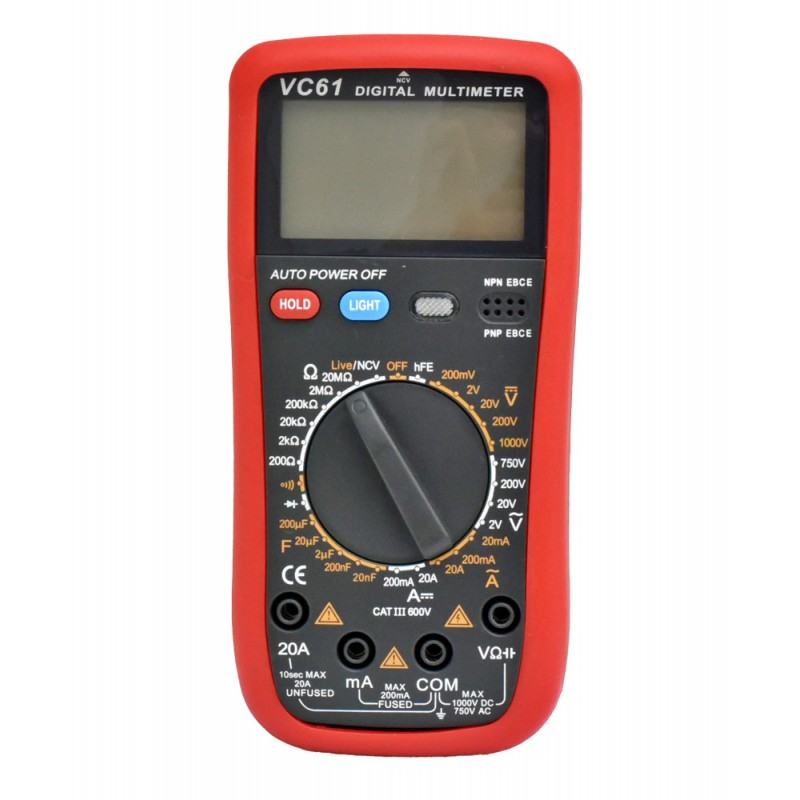

- Clear digital display with automatic polarity indication and over-range display, without risk of misreading
- Diode testing, capacitance measurement 2nF-200μF, and frequency 2-20kHz for complete circuit diagnostics
- Ergonomic casing with shock protection and a HOLD button for recording measured values
How it works and how to install

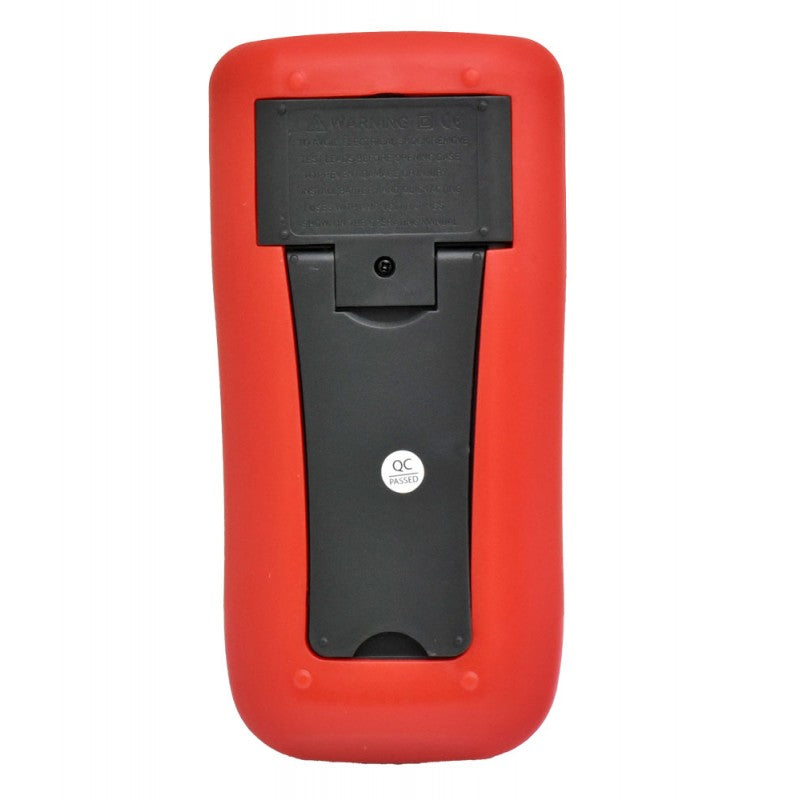

The VC61A multimeter works by selecting the desired parameter with the central rotary knob and connecting the test leads to the measurement points. To use, insert the included 9V battery into the compartment on the back, select the desired function on the dial, connect the black and red leads to the COM and VΩ+ terminals, and then to the circuit to be tested. The 1999-count LCD display automatically updates values 2.5 times per second. The Auto Power Off function saves battery life, and the HOLD button freezes the last read value for easy notation.
Frequently Asked Questions
Can it measure 220V outlet voltage?
Yes, the multimeter measures AC voltage up to 700V and DC up to 1000V, including standard 220V outlets safely, with overload protection.
What battery does it use and how long does it last?
It uses a 9V battery included in the package. Battery life is hundreds of hours due to the Auto Power Off function which automatically shuts down the device after inactivity.
Can it test batteries and capacitors?
Yes, it measures DC voltage for batteries and capacitance from 2nF to 200μF for capacitors, ideal for complete electronic circuit troubleshooting.
Technical specifications
| Model | VC61A Digital Multimeter |
| Display | LCD, maximum 1999 counts |
| DC Voltage | 200mV / 2V / 20V / 200V / 1000V |
| AC Voltage | 2V / 20V / 200V / 700V |
| DC Current | 2mA / 20mA / 200mA / 2A / 20A |
| AC Current | 2mA / 20mA / 200mA / 2A / 20A |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ |
| Capacitance | 2nF / 20nF / 200nF / 2μF / 20μF / 200μF |
| Frequency | 2kHz - 20kHz |
| Measurement rate | 2.5 readings/second |
| Operating temperature | 0°C - +50°C |
| Power supply | 9V Battery (included) |
| Additional functions | Diode test, Auto Power Off, HOLD, overload protection |
| Certification | CE, CAT III 600V |
| Package contents | VC61A Multimeter |
