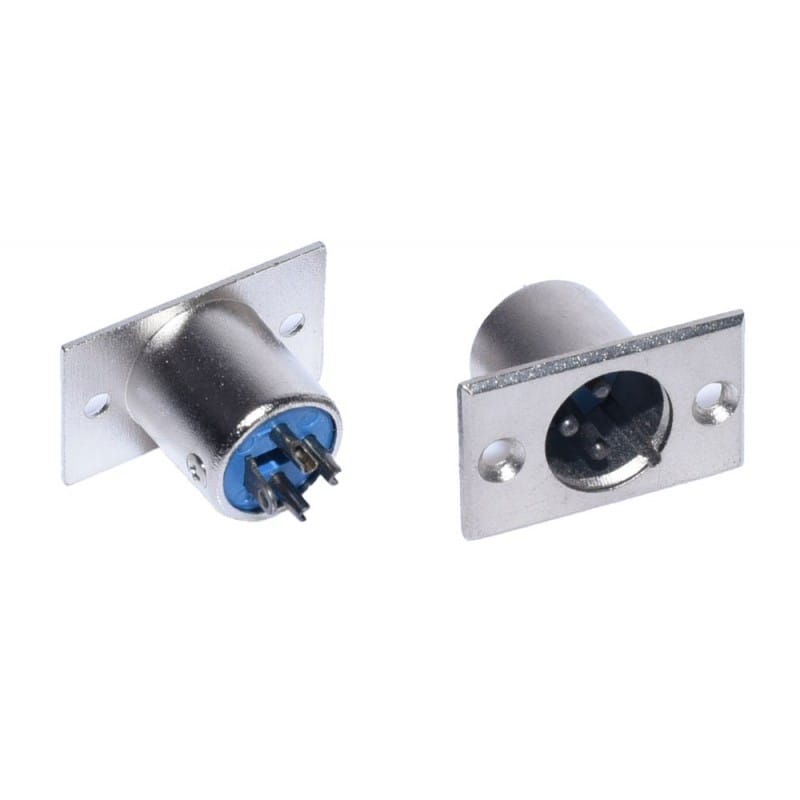

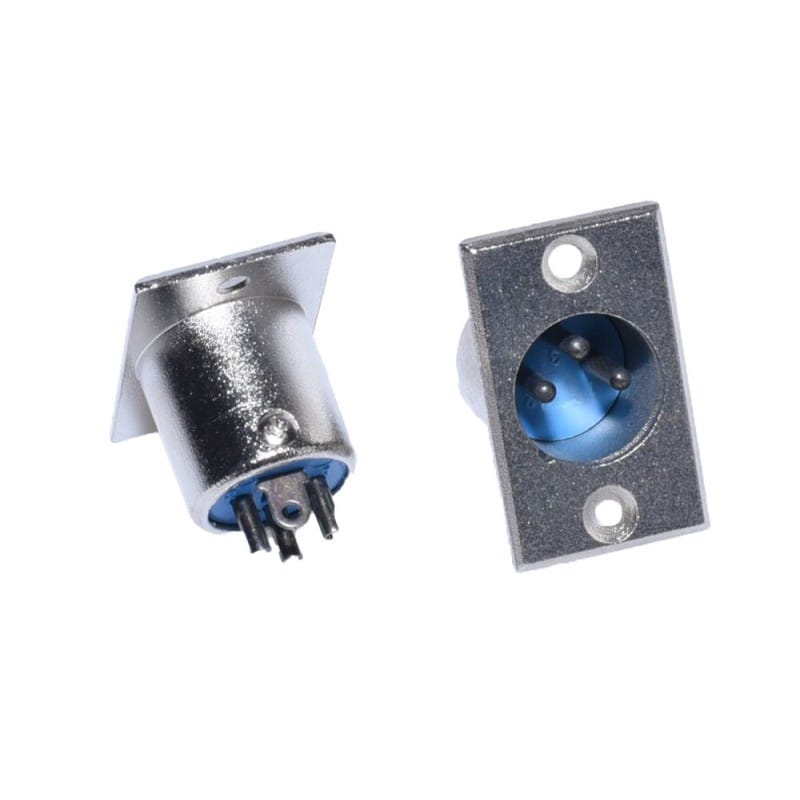

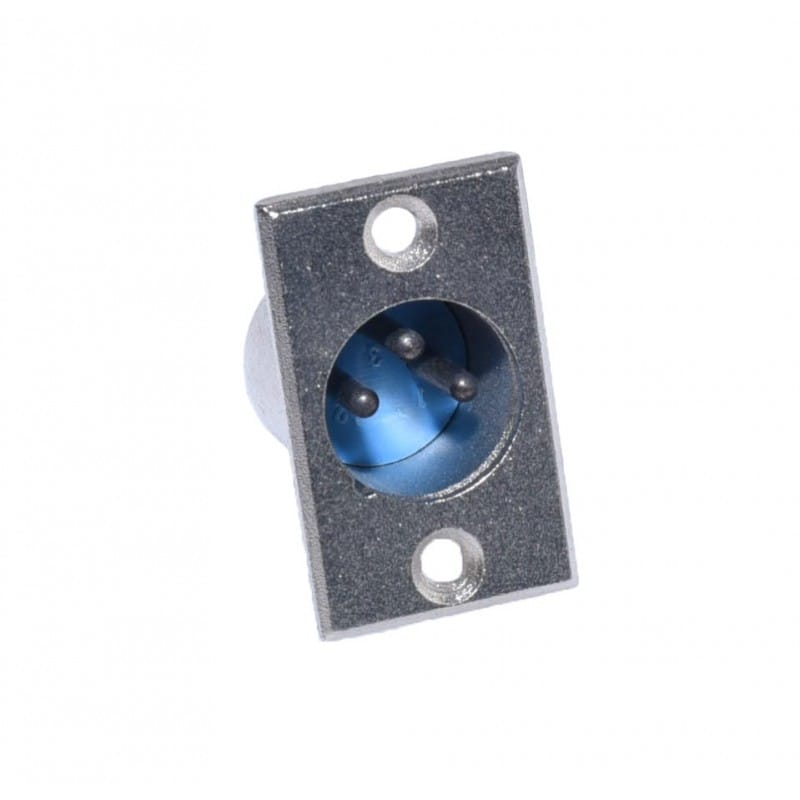

Panel Mount Male XLR Connector
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Panel-mount Male XLR Connector for Fixed Installation
The panel-mount male XLR connector is the standard solution for permanently installing balanced audio connections on professional equipment, mixing consoles, speakers, and audio stations. The metal body ensures proper mechanical durability and electrical shielding, while the two-screw mounting guarantees stable attachment to any panel or casing.
What you get with this product
- Stable balanced audio connection — the 3 contact pins plus ground clip eliminate interference and background noise from the audio line
- Rigid panel mounting — the two-screw attachment prevents accidental connector movement during intensive use
- Full metal body — withstands repeated mechanical stress, typical for permanently mounted audio equipment
- Compatible with any standard female XLR cable — integrates directly into the signal chain without additional adapters
- Compact dimensions — 35 x 21 x 26 mm, takes up minimal panel space and fits into standard XLR jack cutouts
- Simple solder-mount installation — the 4 terminals (3 contact + 1 ground) are directly accessible, no special tools required
How it works and how to install it

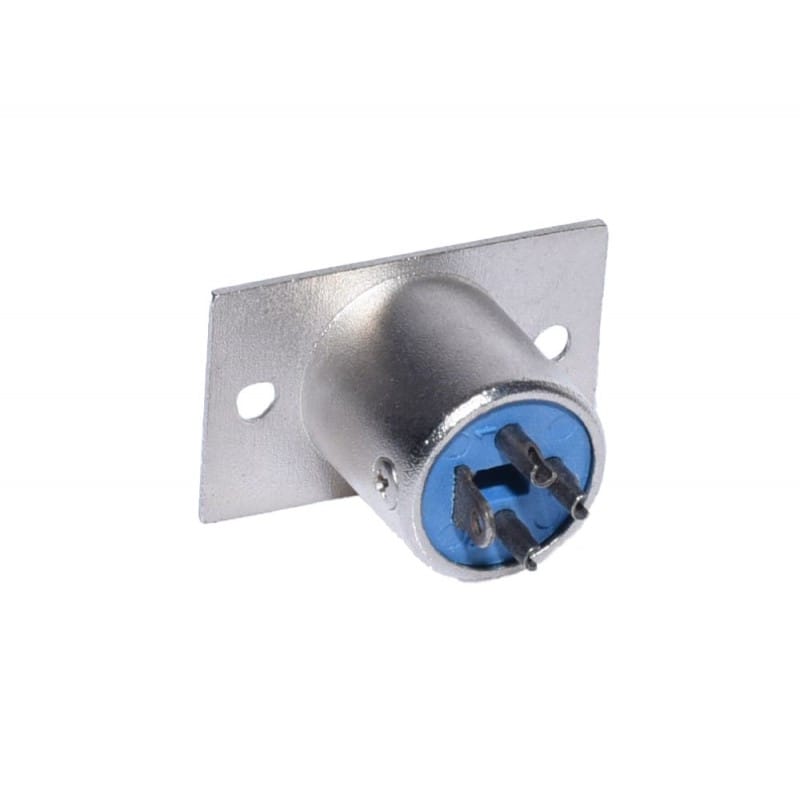

The panel-mount male XLR connector is attached to the equipment panel with two screws, using the holes provided in the rectangular metal flange. The signal and ground wires are soldered to the 4 terminals on the back of the connector, following the standard XLR diagram: pin 1 ground, pin 2 positive signal, pin 3 negative signal. The operation does not require specialized tools and can be performed by any audio technician or electronics engineer with basic soldering experience.
Frequently Asked Questions
Is it compatible with any female XLR cable on the market?
Yes, the connector complies with the 3-pin XLR standard and connects with any standard female XLR cable used in professional audio.
Can I mount this connector on a stage box or a mixing console?
Yes, it is designed specifically for fixed mounting on panels, stage boxes, audio consoles, and any casing with a standard XLR cutout.
Are the wires soldered or screwed?
The wires are attached by soldering to the 4 accessible terminals on the back of the connector, which is the standard method for panel-mount XLR connectors.
Technical Specifications
| Connector Type | Panel-mount male XLR |
| Number of Pins | 3 contact pins + 1 ground clip |
| Body Material | Metal |
| Mounting Type | Panel-mount with 2 screws |
| Dimensions | 35 x 21 x 26 mm |
| Wire Connection Type | Solder (terminals) |
| Insert Color | Blue |
| Applications | Audio stations, speakers, mixing consoles, microphones, electronic organ |
| SKU | Q-12B031 |
| Brand | OEM |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days from the delivery date, without the need for justification. Delivery is fast via courier, with shipping confirmation and package tracking available.
