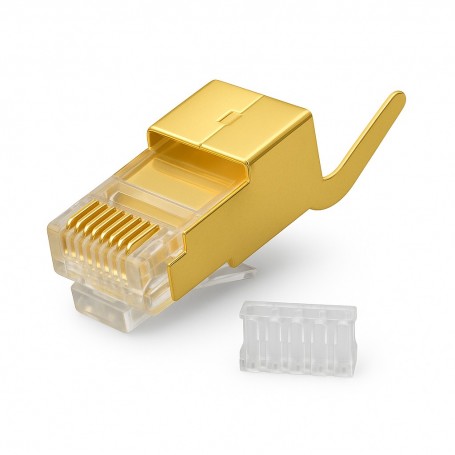

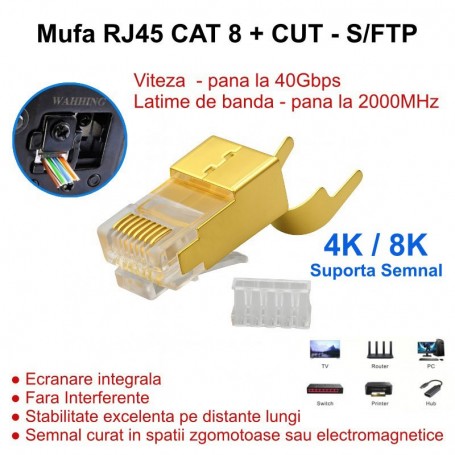

RJ45 S/FTP CAT 8 CUT Gold Connector with Metallic Shielding - 50Pcs/Set
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
CAT 8 CUT RJ45 Connectors with Full Shielding for 40Gbps Networks
Professional set of 50 S/FTP CAT 8 RJ45 connectors with CUT technology (automatic cutting), designed for installers and technicians working with high-speed networks. These fully metal-shielded connectors guarantee speeds up to 40 Gbps and frequencies of 2000 MHz, eliminating downtime by automatically cutting excess wires directly during crimping.
What you get with this product
- 3 times faster installation — the CUT system automatically cuts excess wires, eliminating the separate adjustment operation and reducing termination time by over 60%
- Zero margin of error — premium gold-plated contacts and the locking system guarantee certified CAT 8 connections on the first attempt, without costly rework
- Total anti-interference protection — dual S/FTP shielding (individual foil on pairs plus overall braided shield) completely eliminates crosstalk and ensures stability over long distances
- Verified compatibility up to 40Gbps — supports 25G/40G Ethernet up to 30m according to ANSI/TIA-568-C.2-1 and ISO/IEC 11801-1:2017 standards
- Economical set for large projects — 50 pieces in the package, ideal for complete cabling of a rack or floor without interruptions for resupply
- Extreme resistance to difficult conditions — works flawlessly between -40°C and +85°C, suitable for data centers, industrial installations, and demanding technical environments
How it works and how to install
CUT connectors integrate cutting blades inside the capsule that activate automatically upon crimping. After stripping the CAT 8 S/FTP cable and arranging the pairs according to the T568A or T568B standard, insert the cable into the connector until it stops, visually check the correct positioning, then crimp with a special CUT crimping tool. During crimping, the blades cut the excess wires, the contacts penetrate the conductors, and the metal shielding automatically connects to the cable shield — all in one operation.
The process requires a special crimping tool for CUT connectors and certified CAT 8 S/FTP cable (diameter 7.0-8.5mm). After crimping, testing with a Level 3 network analyzer (DSX or similar) is mandatory to certify CAT 8 parameters. Each correctly terminated connection guarantees 25G/40G Ethernet speeds and frequencies up to 2 GHz throughout the life of the installation.
Frequently asked questions
Can I use these connectors with a regular crimping tool for standard RJ45?
No, CUT connectors absolutely require a special crimping tool designed for automatic cutting technology. Standard pass-through connector tools do not correctly activate the cutting blades and do not guarantee CAT 8 electrical parameters.
Do they work with any network cable or must it be CAT 8?
These connectors are exclusively optimized for CAT 8 S/FTP cable with a diameter of 7.0-8.5mm. Using them with CAT 6 or CAT 7 compromises both shielding and mechanical parameters, resulting in unreliable connections and low performance.
How difficult is it to achieve a certified connection on the first try?
With proper preparation and an adequate tool, the success rate exceeds 95%. The key is precise cable stripping (without damaging the shield), arranging the pairs without unraveling the original geometry, and full insertion into the connector until it visibly stops.
Technical specifications
| Cable Category | CAT 8 Class I/II (40GBASE-T) |
| Compliance Standard | ANSI/TIA-568-C.2-1, ISO/IEC 11801-1:2017 |
| Shielding Type | S/FTP (individual foil on pairs + overall braided shield) |
| Maximum Frequency | 2000 MHz (2 GHz) |
