JACK 6.3 Stereo Plug Male, Blue Ring
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

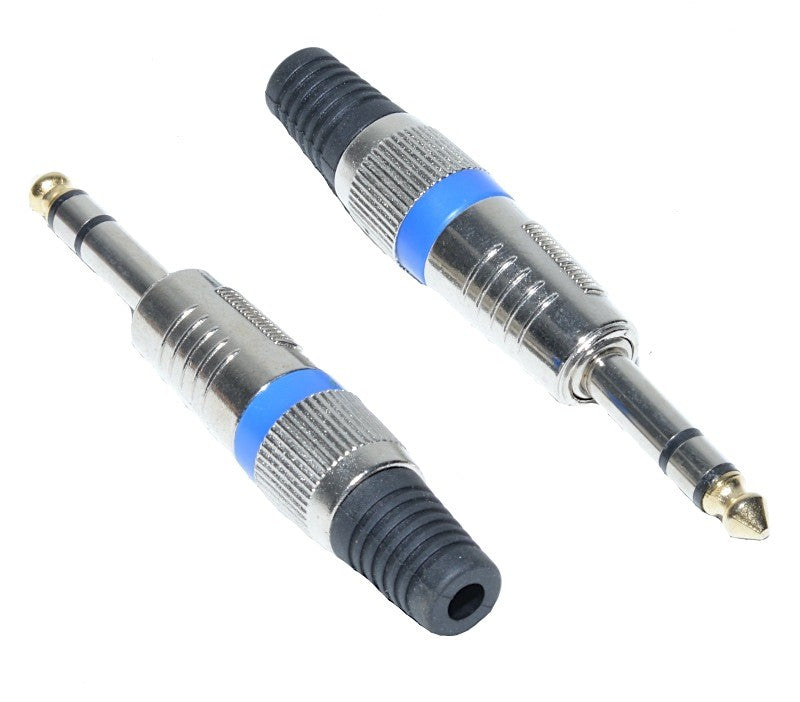

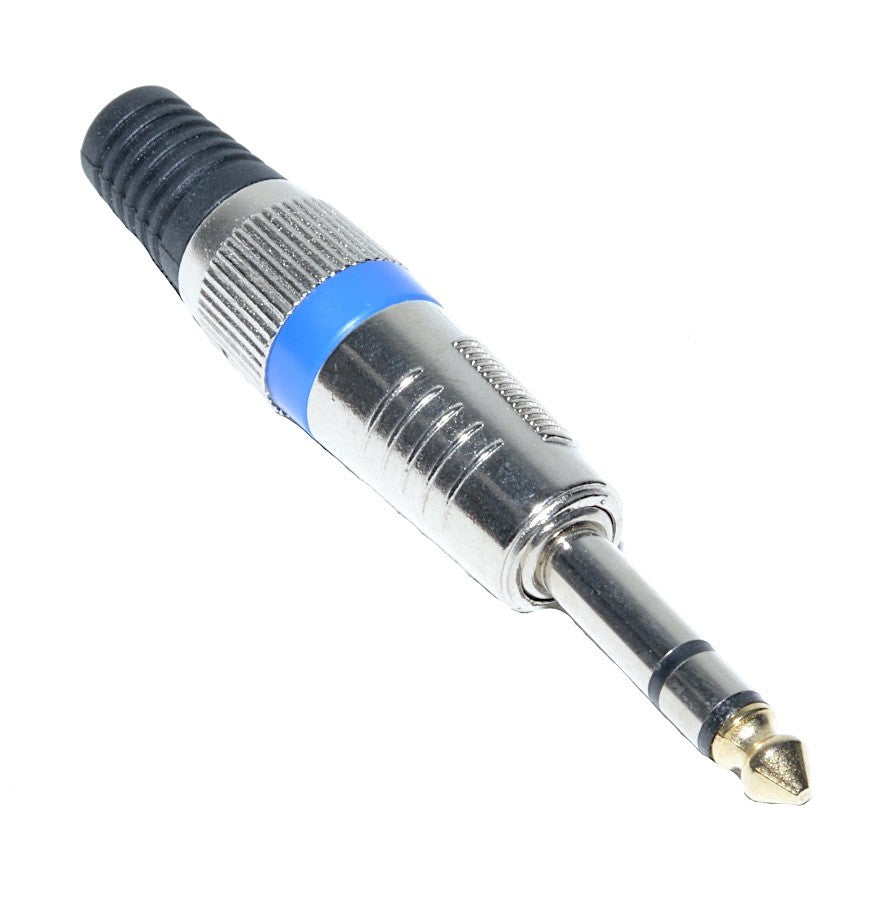

6.3 mm Stereo Jack Plug for Professional Audio Connections
The 6.3 stereo jack plug is the standard connector used in professional and semi-professional audio installations, suitable for guitar, mixer, organ, microphone, or speaker. The nickel-plated metal housing and blue identification ring make it easy to recognize in installations with multiple cables. Its detachable construction allows for direct soldering of conductors to the internal terminals, providing a stable and durable connection over time.
What you get with this product
- Complete stereo connection on a single plug — Tip (left), Ring (right), and Sleeve (ground) signal on 6.3 mm, the standard format for professional audio equipment
- Quick identification in complex installations — the distinctive blue ring allows for immediate visual differentiation from other plugs in the same rack or pedalboard
- Robust metal construction resistant to repeated mechanical stress — the nickel-plated housing protects against oxidation and damage from frequent insertions
- Compatible with a wide range of cables — the threaded rubber boot accepts cables of varying diameters, ensuring protection against bending and tension
- Accessible soldering assembly for any user — exposed internal terminals allow conductors to be connected with a soldering iron without special tools
- Usable in any standard audio application — mixer, amplifier, electric guitar, keyboard, microphone, passive speaker, or studio equipment
How it works and how to install it

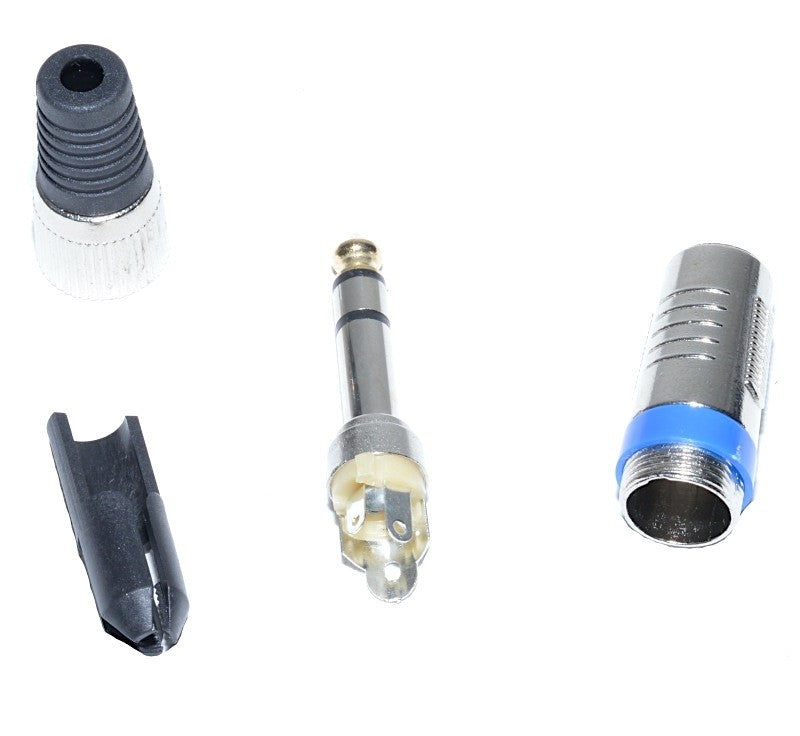

The plug disassembles into four components — the rubber boot, the threaded body, the cable clamp, and the head with terminals — allowing the cable to be passed through before soldering. The audio cable conductors are soldered to the corresponding terminals: Tip for the left channel, Ring for the right channel, and Sleeve for ground, after which the assembly is tightened manually. No special tools are required, and the operation takes an average of 5-10 minutes for anyone with basic soldering experience.
Frequently Asked Questions
Is this 6.3 Jack plug mono or stereo?
It is stereo (TRS — Tip, Ring, Sleeve), with three contacts, so it transmits a signal on two channels simultaneously. It is not directly compatible with mono inputs without adaptation.
What is the maximum cable diameter that the boot accepts?
The threaded rubber boot accepts cables with a diameter of up to approximately 7 mm, covering most studio or stage audio cables.
Can I use this plug for a guitar or pedalboard?
Yes, it is compatible with any equipment that uses a 6.3 mm stereo Jack input, including guitars with stereo pickups, pedalboards, and amplifiers with stereo input.
Technical Specifications
| Connector Type | 6.3 mm Male Jack |
| Configuration | Stereo (TRS — Tip, Ring, Sleeve) |
| Pin Diameter | 6.3 mm |
| Housing Material | Nickel-plated metal |
| Cable Boot | Black rubber with thread |
| Visual Identification | Blue ring |
| Mounting Type | Soldering (cable) |
| Package Contents | 1 x 6.3 Stereo Jack Plug blue ring |
| SKU | Q-12E029 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days of receipt, without obligation to provide a reason. Fast courier delivery throughout Romania.
