DC Power Jack 2.1mm Female Plastic / Panel Mountable
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

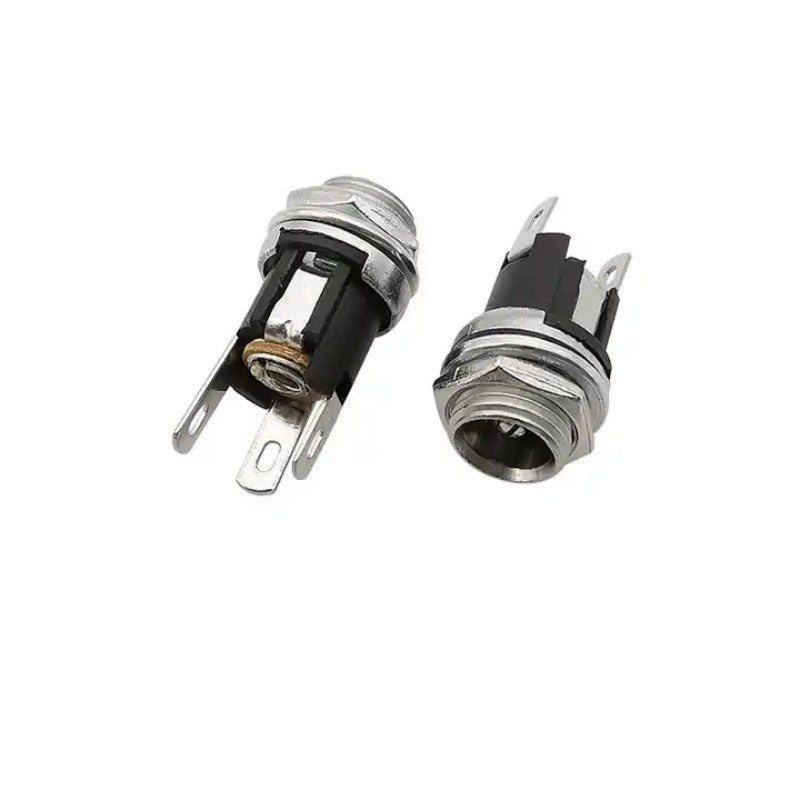

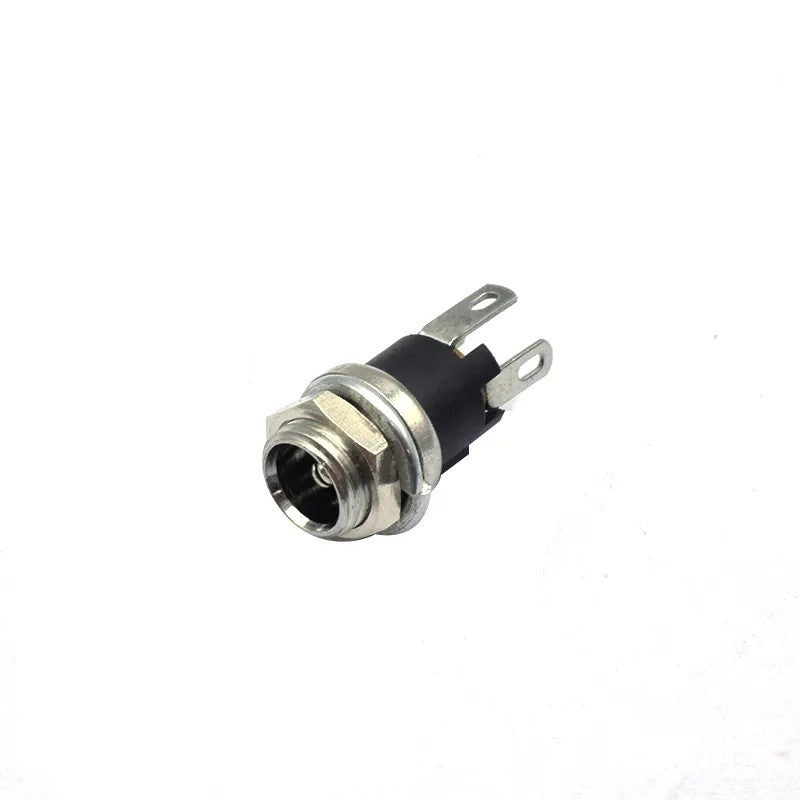

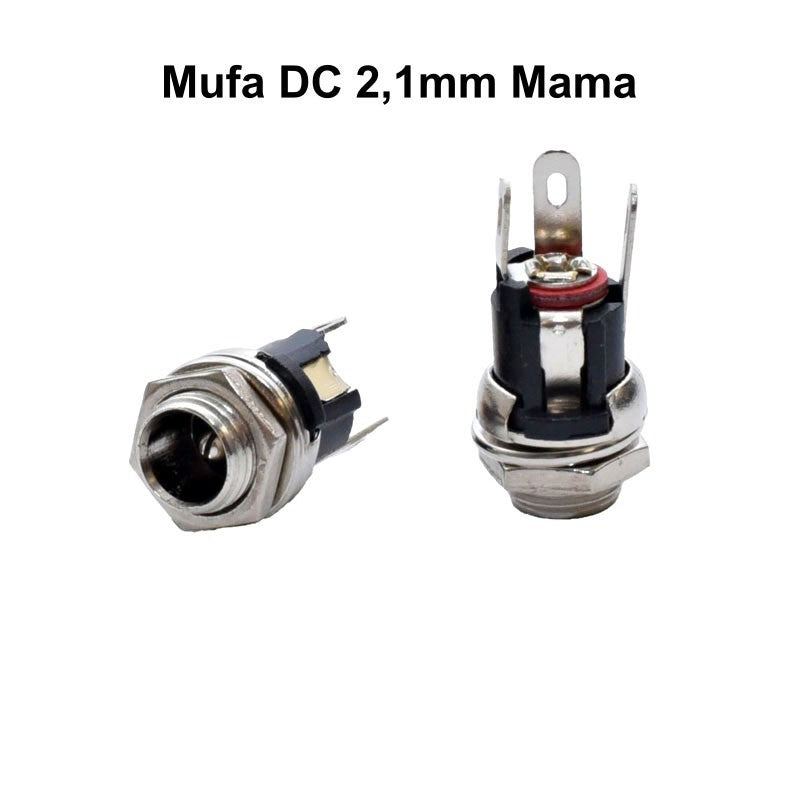

2.1mm DC female jack, panel mount, for reliable power supply
The 2.1mm DC female power jack is the practical solution for permanently fixing the power connector in a panel, enclosure or electronic board. Compatible with standard adapters and power supplies with a 2.1mm barrel jack, this part is frequently used in LED lighting projects, CCTV surveillance systems, automation and DIY electronics. The metal construction with a fastening nut ensures a stable grip and a secure electrical contact in the long term.
What you get with this product
- Stable and uninterrupted connection — the metal body and tightening nut eliminate accidental movements of the connector over time
- Quick mounting on panel or enclosure — standard 12mm hole and included kit (nut and spring washer) allow mounting in minutes
- Wide compatibility with standard sources — accepts barrel jacks with 5.5mm outer diameter and 2.1mm center pin, the most common DC format

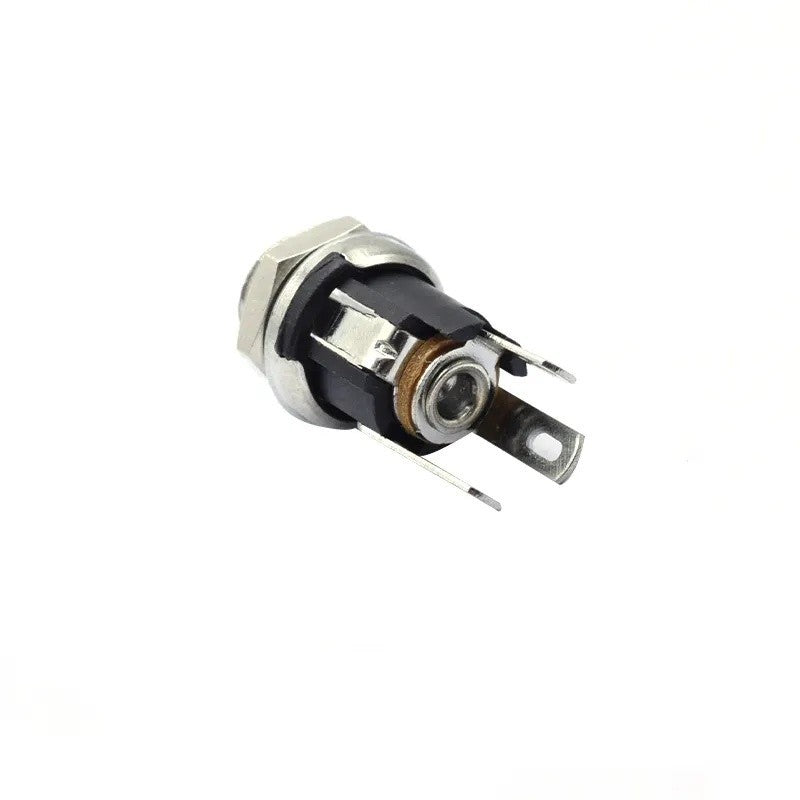

- Solder terminals for direct connection to PCB or via cable — maximum flexibility in integration into any electrical scheme
- Compact dimensions for tight spaces — suitable even for small enclosures, junction boxes or thin panels

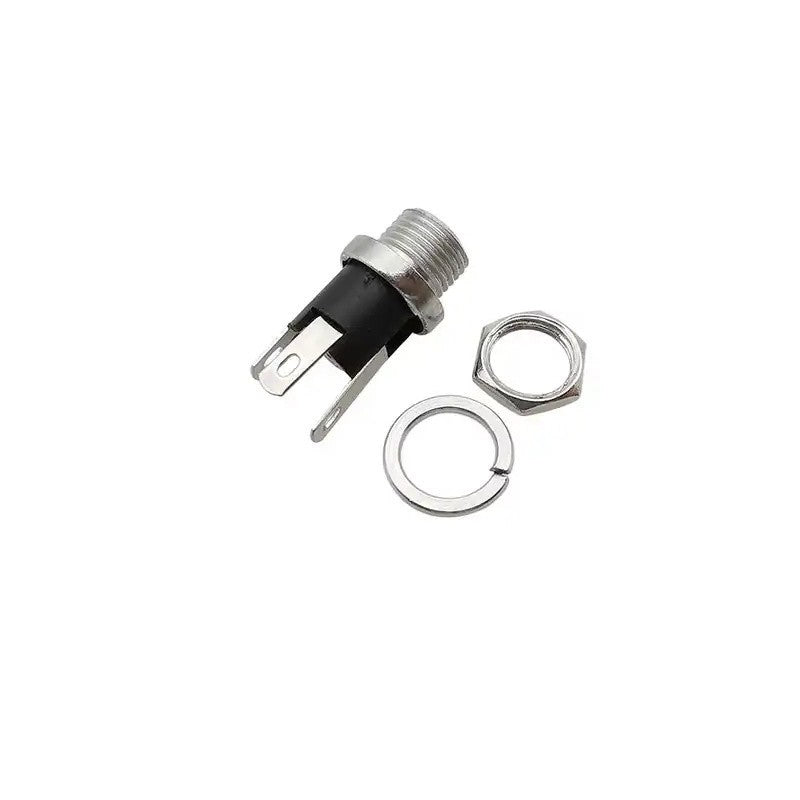

- Complete kit in package — jack, hex nut and locking washer included, ready to mount without additional parts
How it works and how to install it
The 2.1mm DC female jack is mounted by drilling a 12mm hole in the desired panel or enclosure, then inserting the jack body, applying the spring washer, and tightening the hex nut on the opposite side — the operation takes less than 5 minutes and requires no special tools. The flat terminals on the back of the jack are connected to the positive and negative wires of the installation by soldering with a soldering iron or by clamps, depending on the application. Once mounted, the jack accepts any DC 5.5/2.1mm male connector, ensuring continuous power to the circuit.
Frequently Asked Questions
What size hole do I need to drill in the panel to mount this jack?
A hole of approximately 12mm in diameter is required to pass the jack thread and apply the fastening nut on the opposite side.
Is it compatible with standard 12V adapters used for surveillance cameras?
Yes, the jack accepts any DC male connector with 5.5mm outer diameter and 2.1mm center pin, the standard format used for 12V adapters for CCTV and LED lighting.
How are the wires connected to this jack — does it have screw terminals or does it need to be soldered?
The jack has flat PCB-type (through-hole) terminals that are connected by soldering with a soldering iron, providing a solid and vibration-resistant connection.

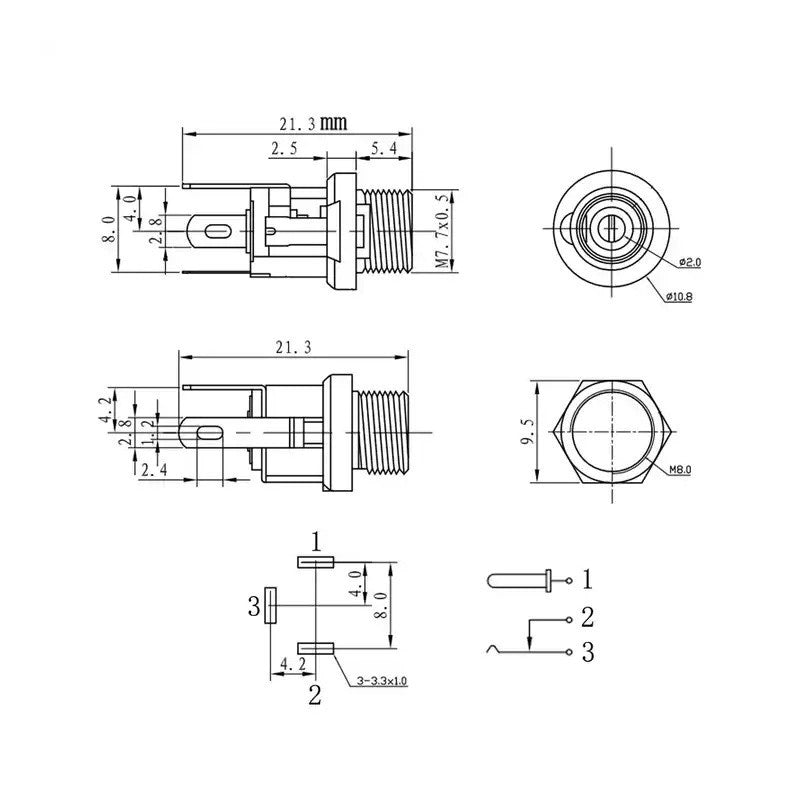

Technical Specifications
| SKU | Q-12C042 |
| Connector type | DC female jack, panel mount |
| Center pin diameter | 2.1mm |
| Jack outer diameter | 5.5mm |
| Mounting hole diameter | 12mm |
| Terminal type | Flat solder terminals (PCB) |
| Body material | Nickel-plated metal with plastic insert |
| Included accessories | Hex nut, spring lock washer |
| Typical applications | LED lighting, CCTV, DIY electronics, automation |
| Brand | ClassLights |
Warranty and Support
The product benefits from a 2-year warranty according to Romanian law. We accept returns within 30 days from the delivery date, without the need for justification. Delivery is fast by courier within Romania.
