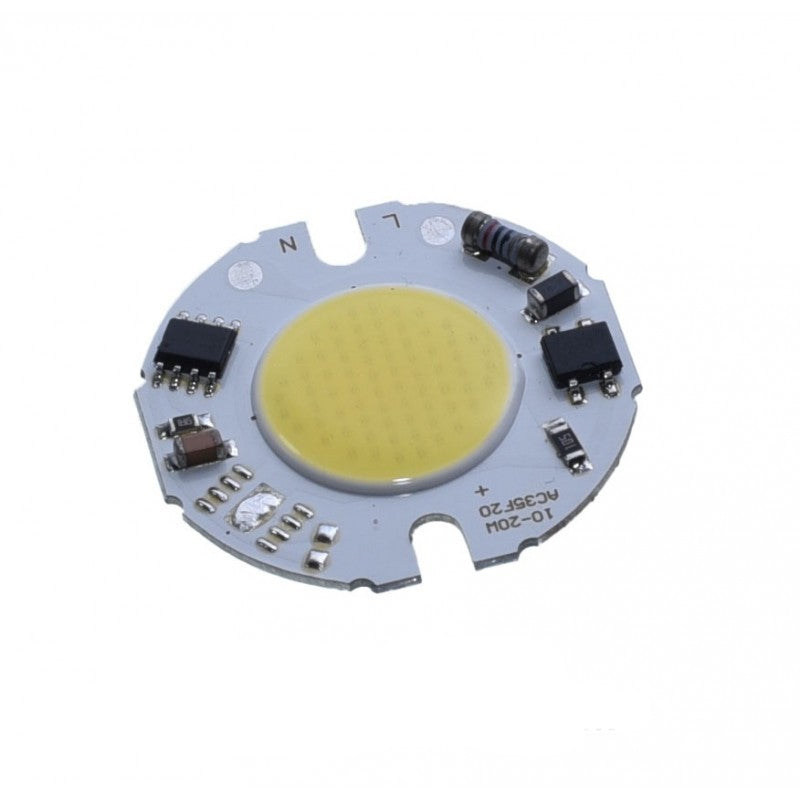

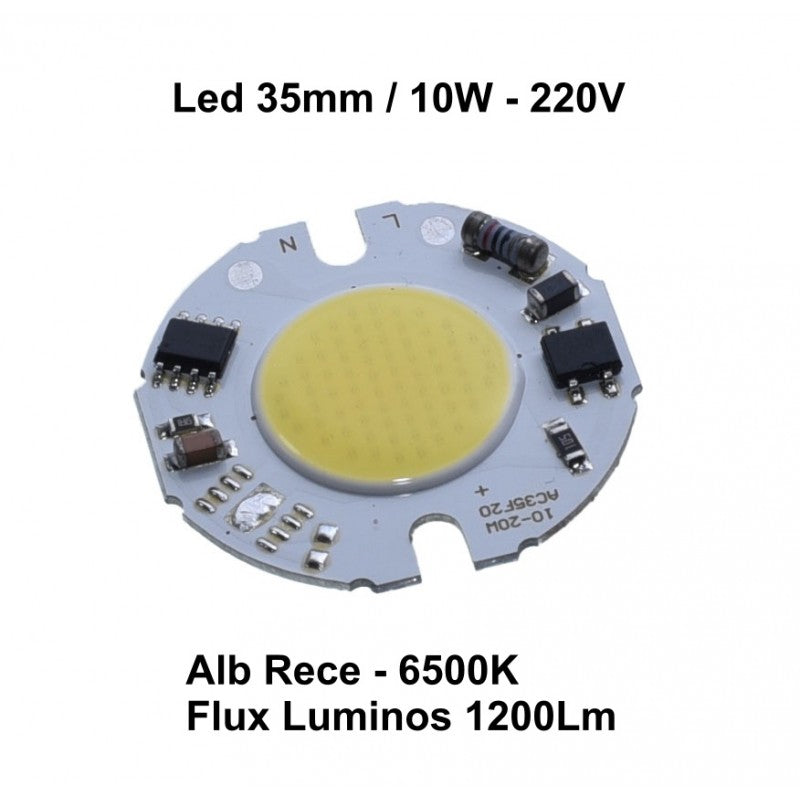

COB LED Module 35MM, Power 10W - 220V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
10W 220V COB LED Chip for Lighting Projects
The 35mm 10W COB LED module is powered directly by 220V AC, eliminating the need for an external driver. With a luminous flux of 1200 lumens and a cool white color temperature of 6500K, it is suitable for replacing or building light fixtures, floodlights, illuminated signs, and industrial or household applications. The integrated aluminum support ensures efficient heat dissipation and simple mounting.
What you get with this product
- Direct 220V AC power supply — no additional driver needed, reducing costs and installation complexity
- Luminous flux of 1100-1200 lm at only 10W — powerful illumination with low energy consumption
- 19mm COB chip with gel protection — uniform light, no intensity spots, with integrated mechanical protection
- Aluminum support heatsink with mounting slots — uniform cooling and stable fixation in the light fixture
- Compatible with a wide range of applications — from floodlights and household lamps to illuminated signs, machinery, and DIY projects
- Compact dimensions, 35mm diameter — integrates into narrow spaces without major structural modifications
How it works and how to install
The 35mm COB LED module is equipped with two power contacts marked L and N, which connect directly to the 220V AC mains. No separate power supply or LED driver is required. Due to its circular shape and the mounting slots of the aluminum heatsink, the chip is easily fixed to the light fixture or to an additional heatsink, if the application requires. Given the 220V operating voltage, installation must be carried out exclusively by qualified personnel, under appropriate electrical safety conditions.
Frequently Asked Questions
Does this COB LED need a driver or separate power supply?
No. The module is powered directly by 220V AC through the two L and N contacts on the board, without any additional components.
What color temperature does it produce and where is it best suited?
It produces cool white light at 6000-6500K, recommended for technical, industrial lighting, illuminated signs, or spaces where high visibility is needed.
Does it need an additional external heatsink?
The module comes with an integrated aluminum heatsink support, with a thickness of 0.91mm. For applications with continuous operation or in enclosed spaces, it is recommended to mount it on an additional heatsink to prolong its lifespan.
Technical Specifications
| Model | LED COB 35mm / 10W - 220V |
| SKU | Q-20C043 |
| Supply voltage | 220V AC |
| Power | 10W |
| Luminous flux | 1100 - 1200 lm |
| Color temperature | 6000 - 6500K (cool white) |

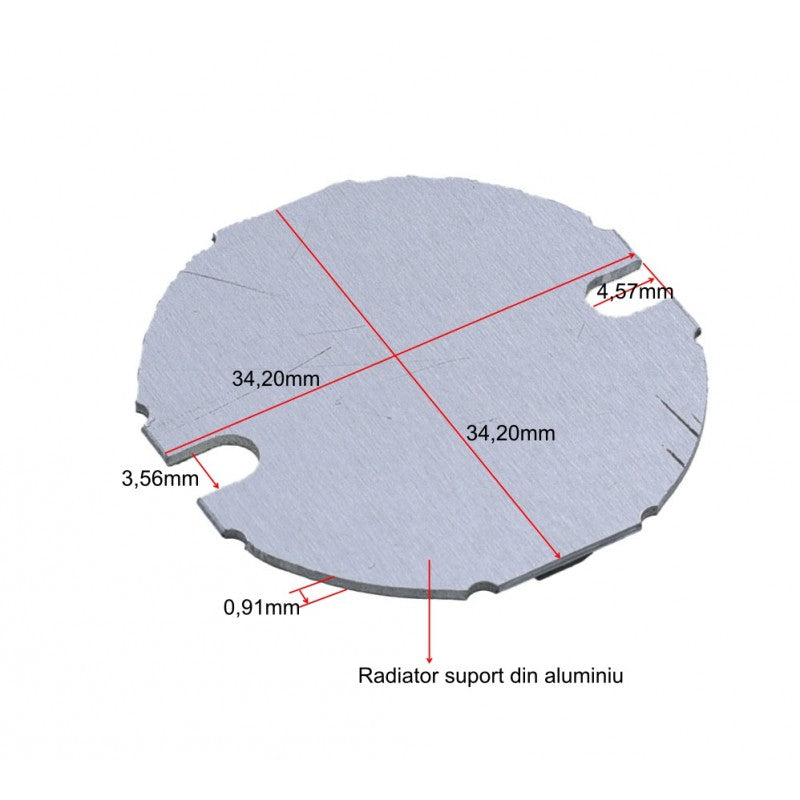

| Total module diameter | 34.20 mm |
| LED chip diameter | 19 mm |
| Total thickness | 2.46 mm |
| Heatsink thickness | 0.91 mm |
| Mounting hole | 4.57 mm |
| Heatsink material | Aluminum alloy |
| LED chip protection | Gel |
| Lifespan | up to 10,000 hours |
| Package contents | 1 x 35mm 10W 220V COB LED Module |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with Romanian legislation. You can return the product within 30 days of receipt if it does not meet expectations. Delivery is fast by courier, with shipping confirmation and tracking capability.
