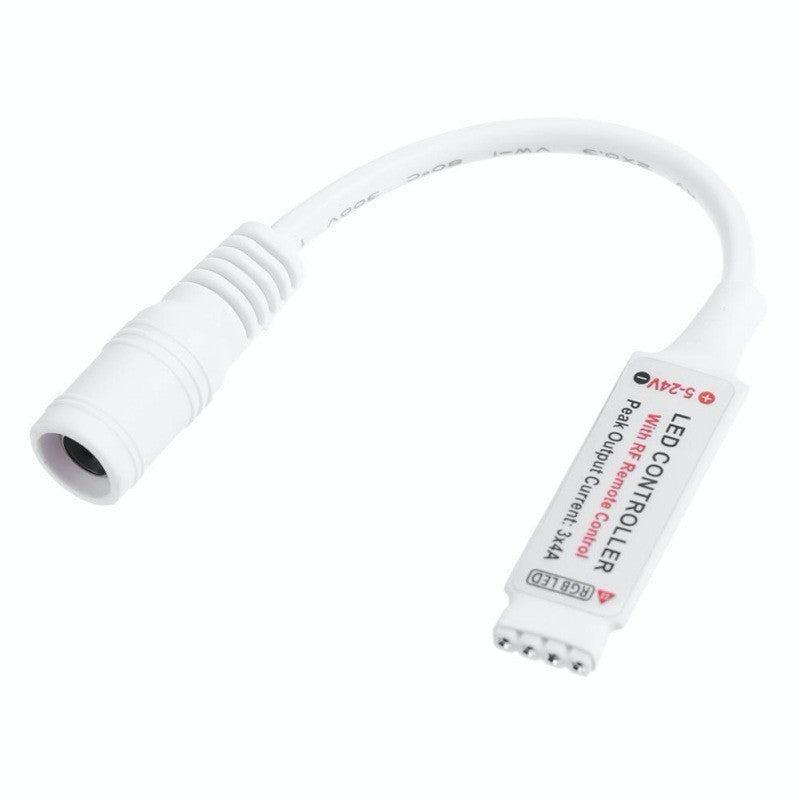

Mini RF Wireless Controller 10-Key, RGB 4-Wire Strip
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Wireless RF Mini Controller for RGB LED Strip
The 10-key wireless RF mini controller allows you to adjust the color, intensity, and effects of your 4-wire RGB LED strip directly from a distance, without additional cables. Suitable for discreet installations in tight spaces — living rooms, furniture, bars, false ceilings — where a standard-sized controller would not fit. The 433.92 MHz radio transmission ensures a range of up to 15 meters, without interference caused by minor obstacles.
What you get with this product
- Complete remote control up to 15 meters — change the color or effects without getting off the couch or touching the LED strip
- 20 static colors and 22 dynamic modes available — adapt the room's atmosphere in seconds, without reprogramming
- Extremely small dimensions (42 x 12 x 5 mm) — fits in spaces where no other controller would be visible or functional
- Compatible with 5V, 12V, and 24V voltages — works with most power supplies for RGB LED strips on the market
- 256 effect combinations and integrated demo mode — test all options with a single press, useful for initial setup
- Standard 4-pin connector for RGB strip — direct connection, no adapters or additional modifications
How it works and how to install it

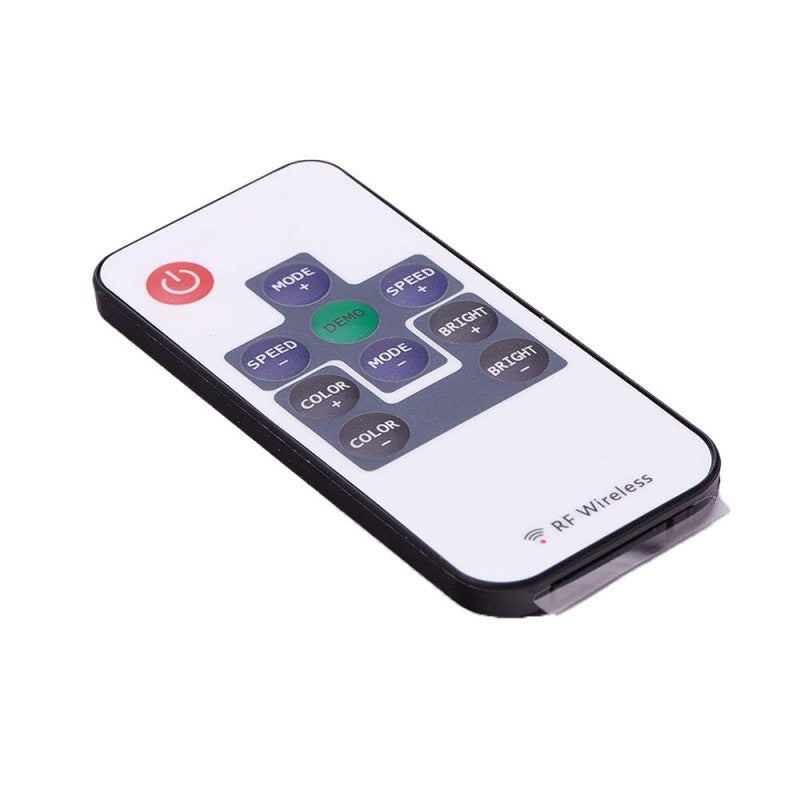

The controller connects between the power supply and the RGB LED strip via the female DC jack connector at the input and the 4-wire pins at the output — it does not require advanced electrical knowledge; the connections are standardized and intuitive. The RF remote control operates on a radio frequency of 433.92 MHz, meaning the signal passes through furniture or thin walls, unlike infrared remotes which require direct line of sight. The CR2025 battery is included in the remote control, so you can test the product immediately upon receipt.
Frequently asked questions
Does it work with any RGB LED strip or only with certain models?
It works with any 4-wire RGB LED strip (R, G, B, +12V) powered at 5V, 12V, or 24V. It is not compatible with RGBW or addressable WS2812 type strips.
Does the remote control need to be pointed at the controller, like a TV remote?
No — RF (radio frequency) technology does not require a direct line of sight. You can control the strip even if the remote and controller are separated by furniture or a thin wall.
What is the maximum current the controller supports and for what strip length is it suitable?
The maximum output current is 12A total (3A per channel), which corresponds to approximately 5 meters of standard density RGB strip at 12V. For longer lengths, using a signal amplifier is recommended.
Technical specifications
| SKU | Q-18A149 |
| Product type | Wireless RF mini controller for 4-wire RGB strip |
| Supply voltage | 5V / 12V / 24V DC |
| Maximum output current | 12A (3A per channel, peak 3x4A) |
| Maximum output power | 30W at 5V / 72W at 12V / 144W at 24V |
| Static power | 1W |
| RF transmission frequency | 433.92 MHz |
| Control distance | up to 15 meters |
| Number of remote control keys | 10 |
| Static color modes | 20 |
| Dynamic modes | 22 |
| Effect combinations | 256 |
| Brightness levels | 5 |
| Effect speeds | 10 |
| Operating temperature | -20°C / +60°C |
| Controller dimensions | 42 x 12 x 5 mm |
| Remote control dimensions | 86 x 40 x 5 mm |
| Remote control battery | CR2025 |

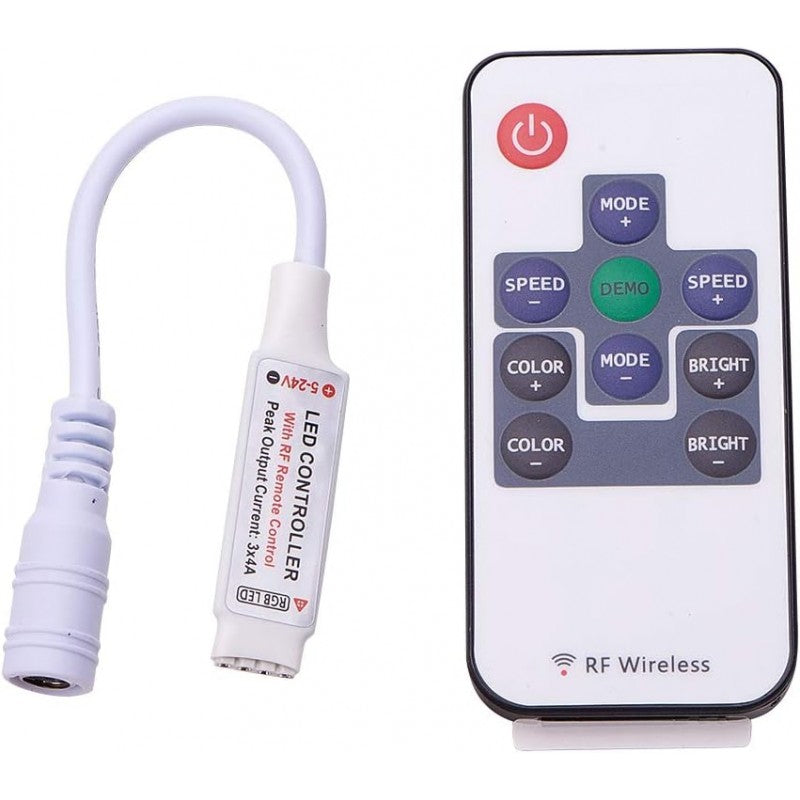

| Package contents | 1x RF mini controller, 1x wireless remote control |
| Brand | OEM |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, without the need for justification. Delivery is carried out quickly by courier, with shipping confirmation and package tracking available.
