Mini-Controller RGB LED Strip, Wired
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

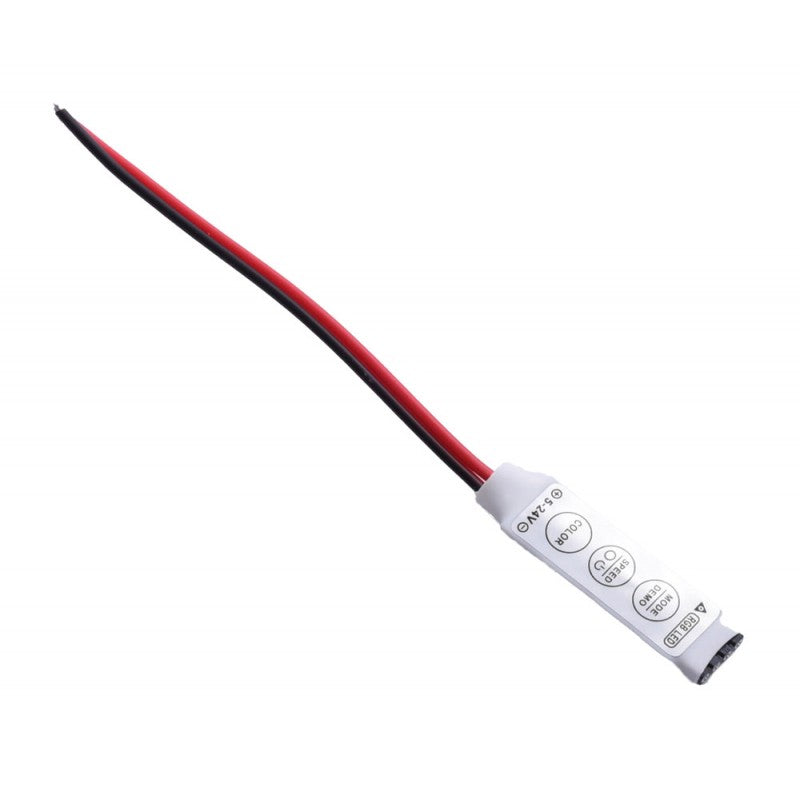

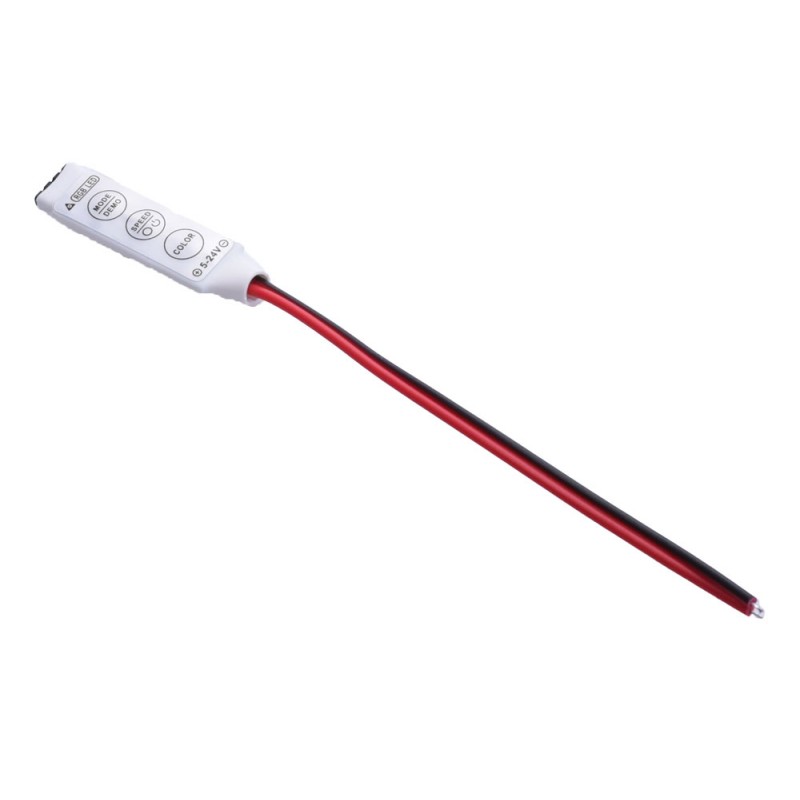

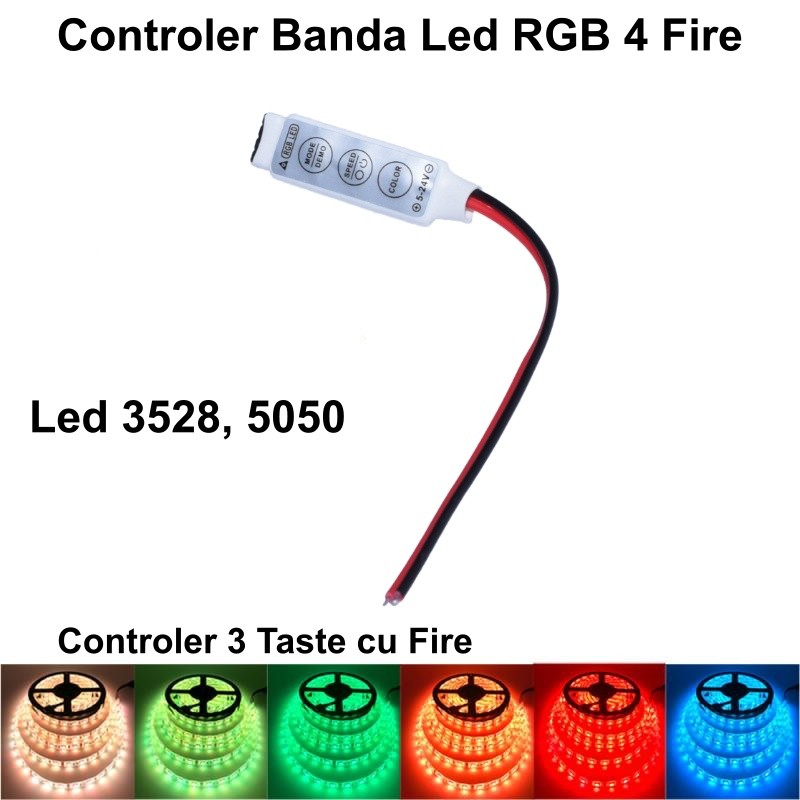

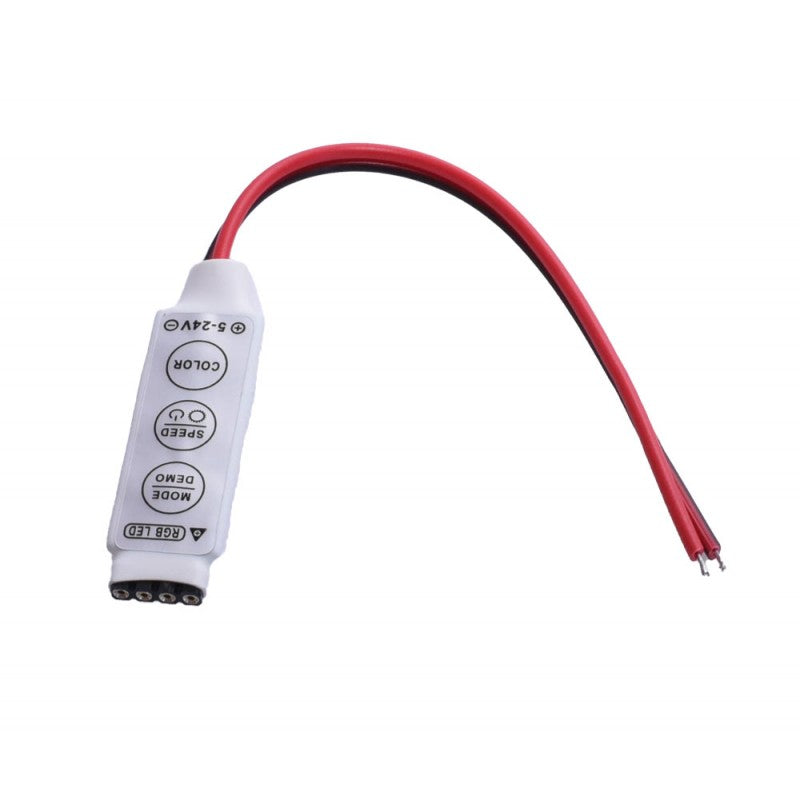

Wired Mini RGB Controller for LED Strips
The mini-controller for RGB LED strips is a compact solution for managing the color, lighting mode, and speed of effects on any RGB LED strip with 3528 or 5050 chips. Connection is made directly via wires, with 4 contacts, no additional accessories needed. Suitable for ambient lighting projects at home, in offices, restaurants, clubs, or billboards.
What you get with this product
- Complete control of the RGB LED strip from a single point — change color, effect, and speed with the 3 dedicated buttons (COLOR, SPEED, MODE/DEMO)
- Compatible with 3528 and 5050 LED strips — works with the most common types of RGB strips on the market
- Wide input voltage 5V–24V DC — adapts to most existing power sources without additional conversions
- Very small dimensions and 15 cm cable — easily hides in profiles, cabinets, or narrow spaces without taking up room
- Brightness adjustment included — integrated dimmer function allows direct intensity adjustment from the controller
- Quick wired installation — connect the wires to the power source and the LED strip, no special tools or advanced electrical knowledge required
How it works and how to install
The mini-controller connects between the DC power source (5V–24V) and the RGB LED strip via the 4 included wires — two for input (power) and four for output (R, G, B, GND). Once connected, the 3 physical buttons on the housing allow selecting static colors, predefined dynamic modes (DEMO), and adjusting the effect speed. No programming or app is required — it works immediately after connection.
Frequently Asked Questions
Does this controller work with any RGB LED strip?
Yes, it is compatible with 4-pin (R, G, B, GND) 3528 and 5050 type RGB LED strips, which are powered by voltages between 5V and 24V DC.
Can I adjust the light intensity, not just the color?
Yes, the controller has an integrated dimmer function — you can adjust the brightness of the strip directly from the buttons on the housing.
What is the maximum length of LED strip I can control with this mini-controller?
The maximum length depends on the power of the power supply used; the controller itself supports voltages from 5V to 24V DC, and the maximum load must be correlated with the chosen power source.
Technical Specifications
| SKU | Q-18A104 |
| Product Type | Mini-controller for RGB LED strip |
| Strip Compatibility | LED RGB 3528, LED RGB 5050 |
| Number of Output Contacts | 4 (R, G, B, GND) |
| Number of Buttons | 3 (COLOR, SPEED, MODE/DEMO) |
| Supply Voltage | 5V – 24V DC |
| Connection | Wired |
| Cable Length | 15 cm |
| Dimmable | Yes |
| Housing Material | Plastic, metal |
| Package Contents | 1 x Wired Mini-Controller for RGB LED Strip |
| Brand | OEM |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, without requiring a reason. Delivery is fast by courier throughout Romania.
