Z15 Limit Switch, Straight Roller Plunger, 15A, 250V-480V AC
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

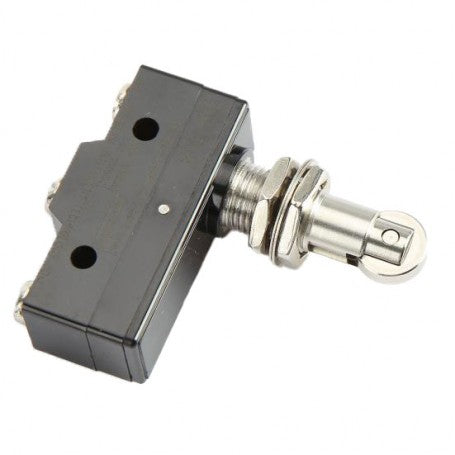

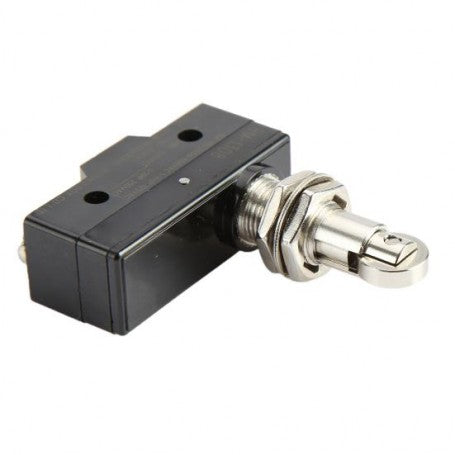

Z15 Limit Switch with Roller for Industrial Automation
The Z15 limit switch with plunger and straight roller automatically stops or starts equipment when the desired point is reached. Ideal for automatic gates, garage doors, machine tools, and industrial installations, it operates without operator intervention and increases the safety of automated processes. Switching capacity 15A at 250-480V AC.
What you get with this product
- Automatic stroke control — equipment stops exactly where it needs to, without constant supervision
- Compatible with industrial voltages — operates at 250V-480V AC, suitable for professional and residential installations
- Quick surface-mount installation — simple screw mounting, without complex modifications to the existing structure
- Durability in intensive use conditions — flame-retardant ABS plastic housing and metal components withstand repeated shocks
- Versatile applications — successfully used in sliding gates, sectional doors, lathes, milling machines, industrial blinds, and production lines
- Precise action via roller depression — accurately detects position and switches instantly upon contact with the moving object
How it works and how to install it
The limit switch is fixed with screws to the stationary frame of the equipment, and the plunger with the roller is positioned in the path of the moving element (door, gate, machine tool carriage). When the roller is pressed by the moving element, the electrical circuit switches automatically, stopping the motor or triggering another programmed action. Installation requires connecting the two wires to the control circuit, according to your equipment's electrical diagram. Adjusting the actuation height of the plunger allows adaptation to different configurations.
Frequently asked questions
Can I use the limit switch for a 220V electric gate?
Yes, it works perfectly at voltages between 250V and 480V AC, including standard residential 220-230V installations.
How much does the roller need to be pressed to activate the switch?
The actuation height is 9mm, sufficient for reliable detection without requiring high pressing force.
Does it withstand daily use on an automatic gate?
Yes, the flame-retardant ABS plastic housing and metal components are built for repeated actuation cycles in industrial conditions.
Technical specifications
| Model | Z15 |
| Contact type | Plunger with straight roller |
| Actuation type | Push-button |
| Supply voltage | 250V-480V AC |
| Maximum current | 15A |
| Overall dimensions | 49 x 17 x 24/64 mm |
| Plunger height | 35 mm |
| Plunger actuation height | 9 mm |
| Housing material | Flame-retardant ABS plastic |
| Contact components | Metal |
Warranty and support
The product benefits from a 24-month warranty according to Romanian legislation, a 30-day return policy, and fast delivery via a partner courier. We ensure stock availability for urgent orders from industry and construction.
