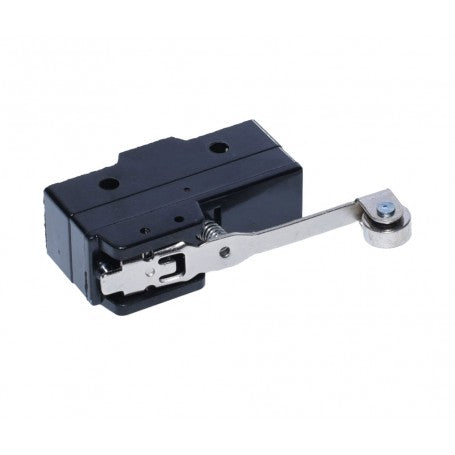

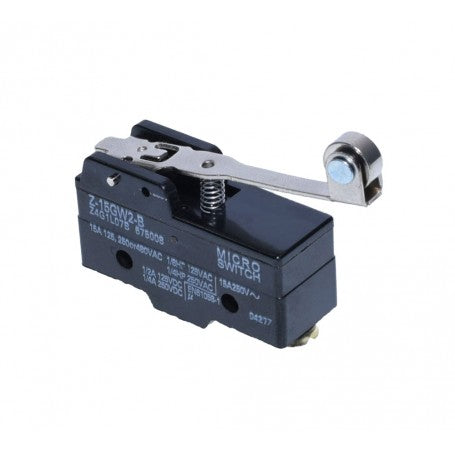

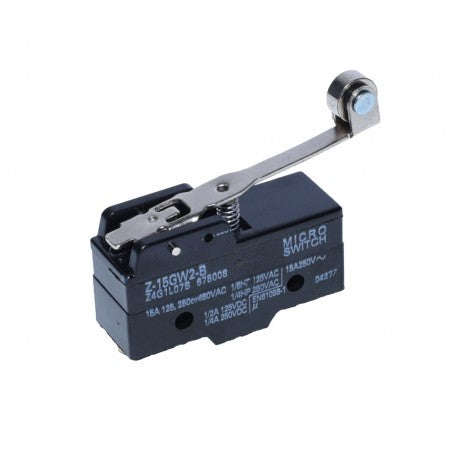

Z15 Limit Switch with 63mm Long Rod and 11mm Roller, 15A, 250V AC Voltage
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
Professional limit switch with long rod for automation systems
The Z15GW2-B limit switch with a 63mm rod and 11mm roller offers precise control for garage doors, automatic gates, blinds, and industrial machinery. Constructed from fire-retardant ABS plastic and durable metal components, it supports loads of up to 15A at 250V AC. It is the ideal solution for automation systems requiring reliable final position detection.
What you get with this product
- Automatic stop control at the final position — eliminates the risk of mechanism damage due to overload
- Quick installation on any type of automation system — compact dimensions and screw mounting, without complex modifications
- Resistance to repetitive mechanical stress — fire-retardant ABS plastic body and metal components for reduced wear
- Universal compatibility with standard voltage — operates directly at 250V AC, without the need for an adapter
- Short actuation travel of 8mm — triggers precisely even in limited spaces or assemblies with tight tolerances
- Increased safety through fire-retardant material — reduces fire risk in industrial environments or high-temperature applications
How it works and how to install it

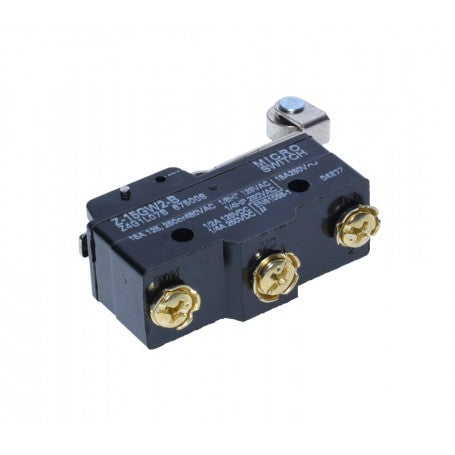

The limit switch is mounted on a fixed structure, and the 11mm roller comes into contact with the moving element of the automation system. When the rod is pressed by a minimum of 8mm, the internal contact instantly triggers and stops the motor or activates the programmed function. Electrical connection is made via the 3 screw terminals, according to your electrical circuit diagram. Fixing is done through two mounting holes, and final position adjustment is made by adjusting the mounting distance. No special tools are required — just a screwdriver and standard wrenches.
Frequently asked questions
How much does the rod need to be pressed to trigger the limit switch?
The actuation travel is 8mm, meaning the rod must be moved by a minimum of 8 millimeters to activate the electrical contact.
Can it be used outdoors, on an automatic gate?
The limit switch does not have declared IP protection, so it is recommended to protect it from moisture and rain with an additional enclosure or by mounting it in a covered area.
Can it switch inductive loads such as electric motors?
Yes, it supports 15A at 250V AC, but for motors or inductive loads, it is recommended to use an intermediate relay to protect the contacts and increase durability.
Technical specifications
| Model | Z15GW2-B |
| Contact type | Long rod with roller |
| Rod length | 63 mm |
| Roller height | 11 mm |
| Actuation travel | 8 mm |
| Actuation type | Push (instant) |
| Supply voltage | 250V AC |
| Maximum current | 15A |
| Body material | Fire-retardant ABS plastic |
| Dimensions | 49 x 18 x 29/46 mm |
| Contact material | Metal |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation, a 30-day return policy, and fast delivery via national courier. Contact the CLASSLIGHTS team for additional technical details or assistance in choosing the right configuration for your application.
