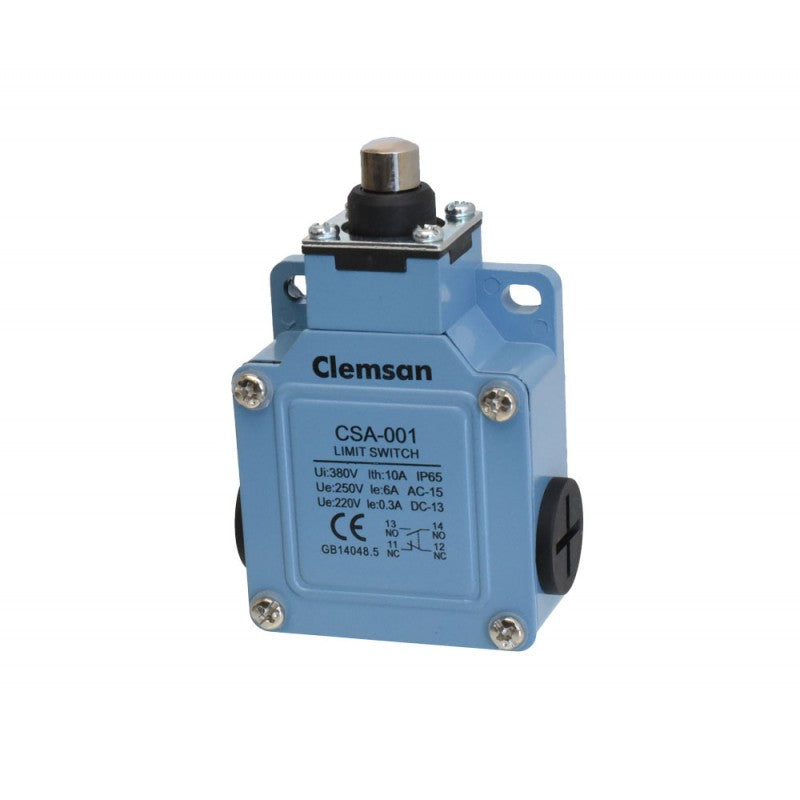

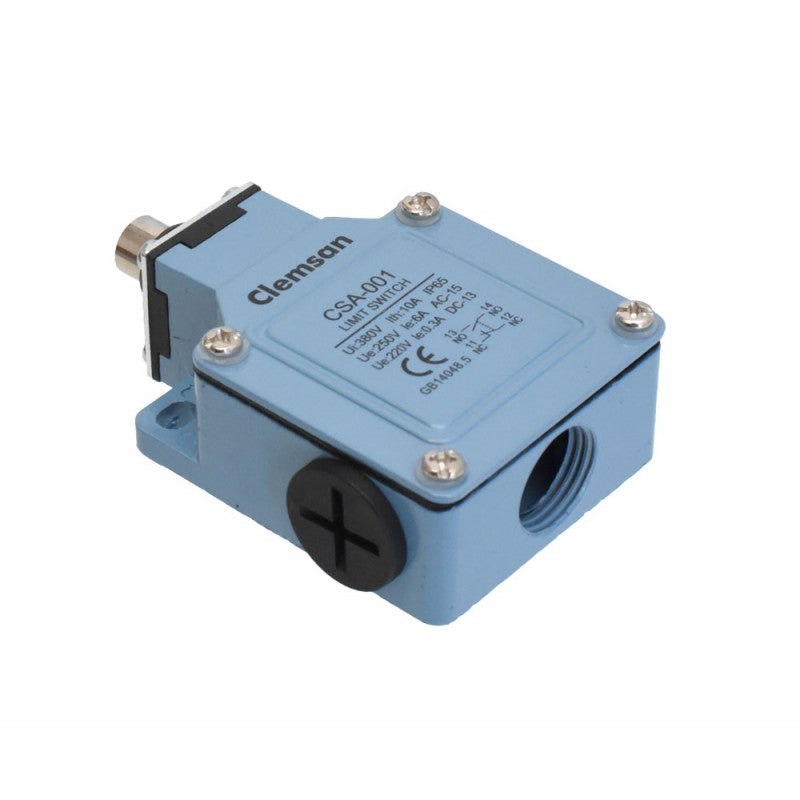

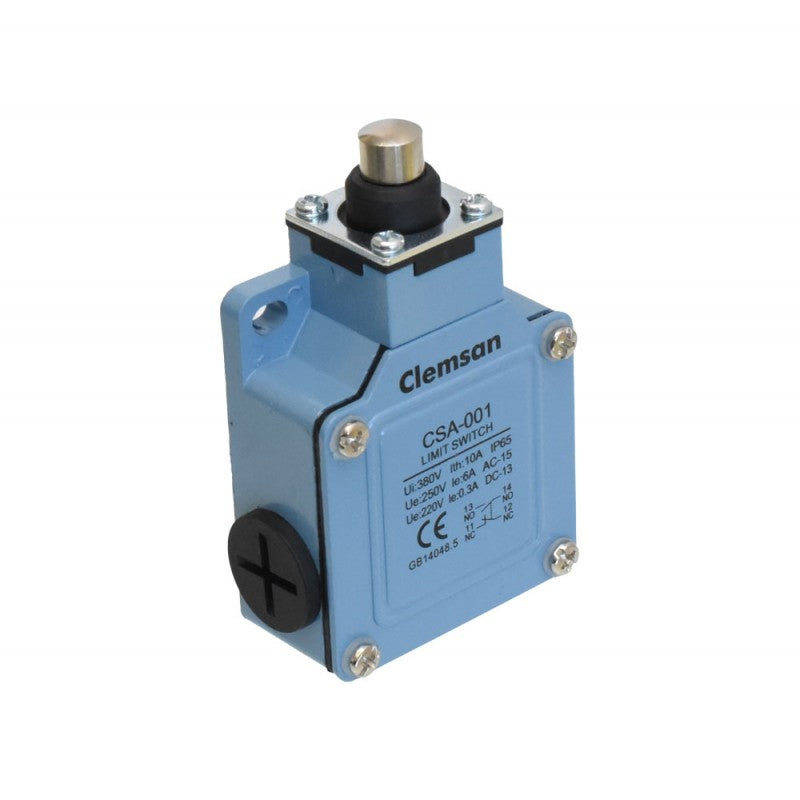

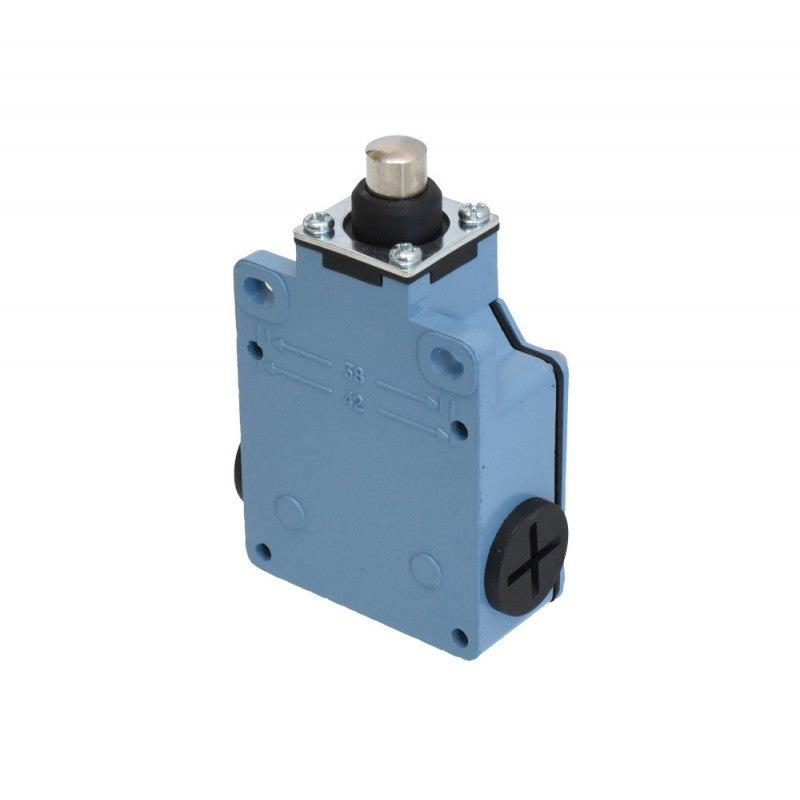

Limit Switch with Button CSA-001
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Industrial limit switch with button for safe automation
The CSA-001 limit switch is the professional solution for precise control of industrial machinery, automatic gates, and garage doors. Equipped with a metal button and a robust IP65 enclosure, it ensures the exact stopping of moving mechanisms in all environmental conditions. Ideal for installations requiring long-term reliability and wear resistance.
What you get with this product
- Complete IP65 protection against dust and water jets — works reliably outdoors or in wet industrial environments
- Exceptional lifespan of 10 million mechanical operations — long-term investment without frequent replacements
- Quick mounting via two mounting holes and included PG11 connector — professional installation in under 15 minutes
- Safe switching at 10A active load and 4A inductive load — compatible with most motors and automation systems
- Reliable operation between -5°C and +65°C — withstands extreme temperature variations without failure
- Compliance with European standards EN50041 and IEC 337-1 — certified safety for industrial and domestic applications
How it works and how to install it
The limit switch is activated by the moving part of the machinery or gate pressing the metal button. When the force reaches a minimum of 800g, the contact switches and stops the system. The PG11 connector allows quick connection of control cables. Mounting is done through the two fixing holes on the fixed frame, positioning the button so that it is reached at the end of the desired stroke. It does not require complex adjustments — the 1.2mm movement differential guarantees repeatable and precise triggering.
Frequently asked questions
Will the limit switch withstand rain and moisture if I mount it outdoors?
Yes, the IP65 protection rating ensures complete resistance to water and dust ingress, being specially designed for outdoor use and in wet industrial environments.
How often does it need to be replaced with intensive use?
The limit switch withstands a minimum of 10 million mechanical operations and 500,000 electrical operations with active load, which means years of trouble-free operation even under intensive use.
Can I use this limit switch for electric motors?
Yes, it supports inductive loads up to 4A, being compatible with most motors for gates, garage doors, and small to medium power industrial machinery.
Technical specifications
| Model | CSA-001 |
| Rated voltage | 250V AC |
| Rated current active load | 10A |
| Rated current inductive load | 4A |
| Actuation force | Max 800g |
| Release force | Min 400g |
| Movement differential | 1.2mm |
| Mechanical wear resistance | 10,000,000 operations |
| Electrical wear resistance | 500,000 operations |
| Protection rating | IP65 |
| Operating temperature | -5°C to +65°C |
| Operating speed | 5mm/s to 0.5m/s |
| Cable gland | PG11 |

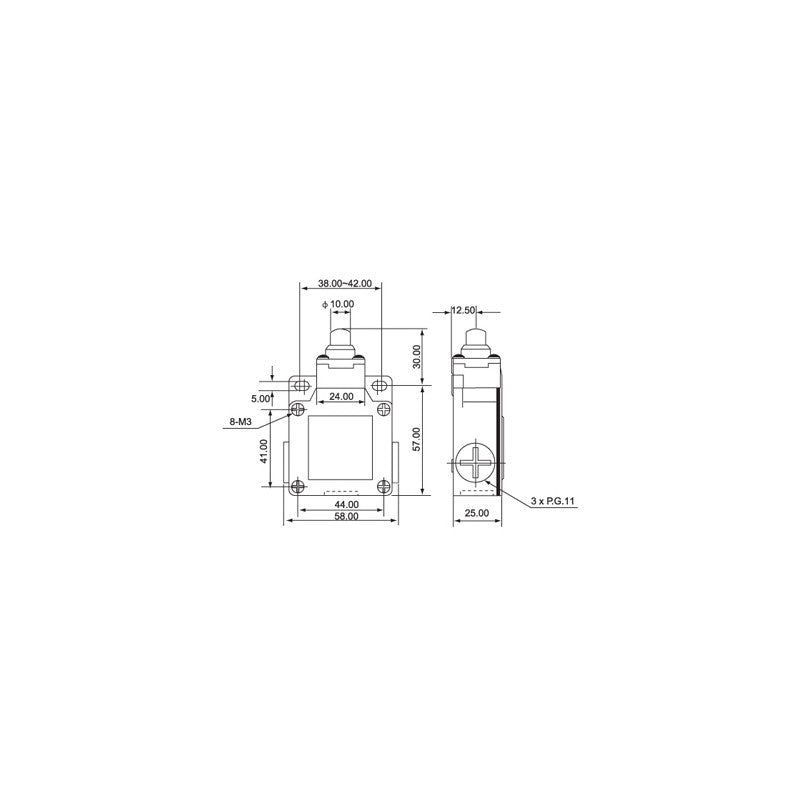

| Dimensions | 87 x 58 x 25 mm |
| Enclosure material | Industrial plastic |
| Compliance standards | EN50041, EN50047, IEC 337-1, VDE 0660 |
| EAN | 0781499724454 |
