Plastic and Spring Limit Switch CSA-071
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

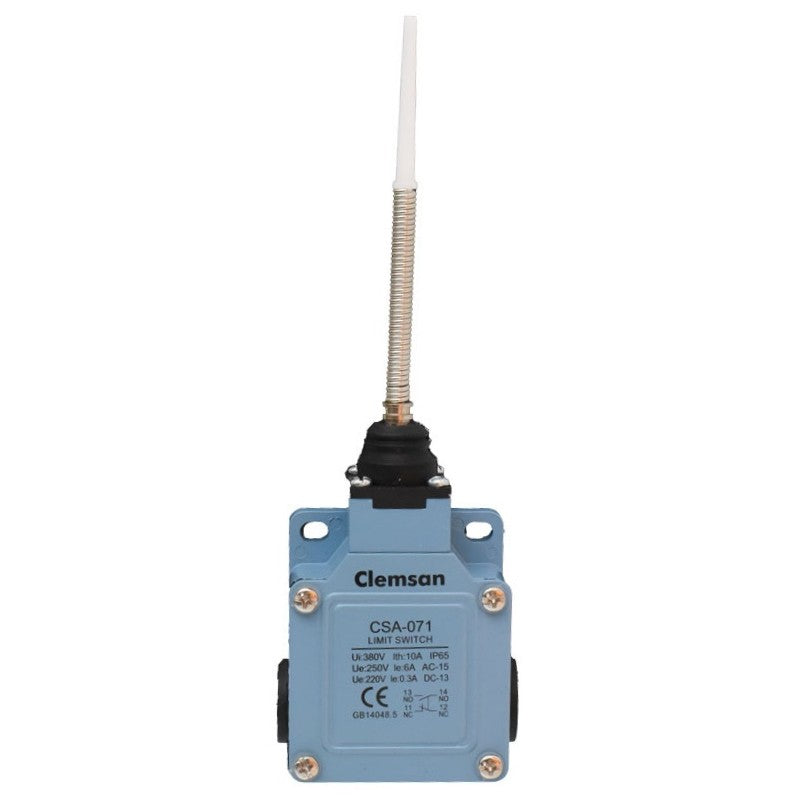

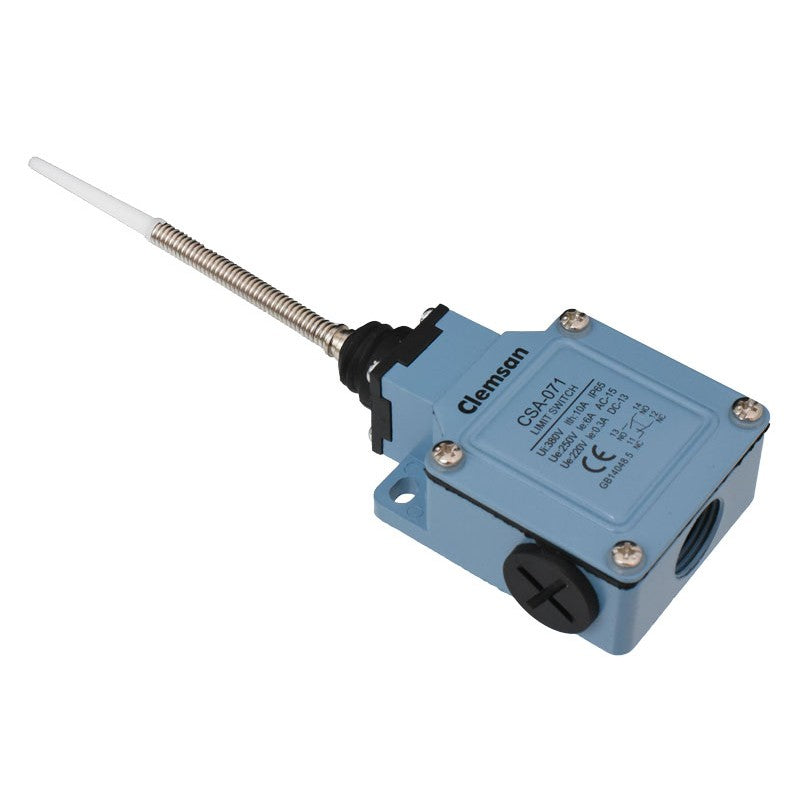

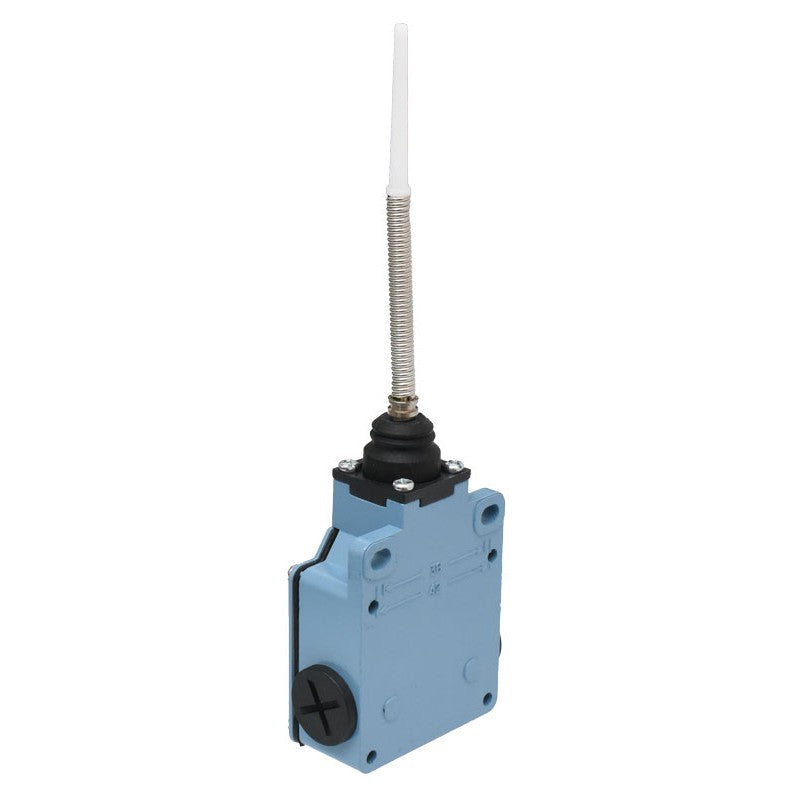

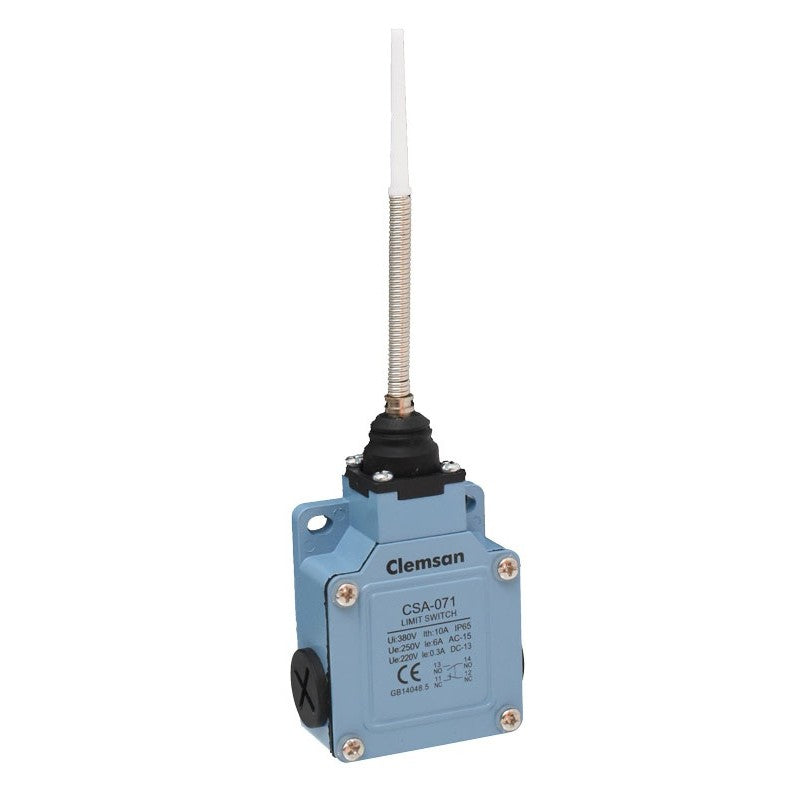

Industrial flexible spring limit switch CSA-071
This limit switch with a wire spring and plastic tip ensures precise control of industrial equipment and home automation. Designed for loads up to 10A and IP65 protection, it operates reliably in harsh environments, from automatic gates to industrial machinery. Installation is simple, using two fixing holes, without the need for complex modifications.
What you get with this product
- Quick installation using two fixing holes and a standard PG11 connection, no specialized tools required
- Guaranteed durability with 10 million mechanical operations and 500,000 electrical load operations
- IP65 protection against dust and water jets, ideal for industrial or outdoor environments
- Flexible multidirectional spring that allows activation from any angle, without rigid positioning
- Stable operation between -5°C and +65°C, suitable for garages, production halls, or outdoor installations
- Safe switching at voltages up to 250V AC with a rated current of 10A for active loads
How it works and how to install it
The limit switch is activated by pressing the flexible spring from any direction, triggering the electrical contact with a maximum force of 800g. Installation is done by fixing the metal body with screws into the mounting holes, then connecting the cables through the PG11 adapter. The spring is adjusted according to the desired detection point, and the accepted operating speed is between 5mm/s and 0.5m/s.
Frequently Asked Questions
Can it be used for an automatic garage door?
Yes, the CSA-071 limit switch is suitable for garage doors, both residential and industrial, offering IP65 protection and operation at temperatures from -5°C to +65°C.
How resistant is it to intensive use?
It supports up to 10 million mechanical operations and 500,000 electrical load operations, being designed for industrial machinery with continuous operation.
What cable cross-section connects to the PG11 fitting?
The PG11 fitting accepts cables with an outer diameter between 5mm and 10mm, standard for industrial and automation applications.
Technical Specifications
| Model | CSA-071 |
| Rated Voltage | 250V AC |
| Rated Current | 10A active load, 4A inductive load |
| Housing Material | Plastic and metal |
| Protection Degree | IP65 |
| Actuation Force | Max 800g |
| Release Force | Min 400g |
| Operating Speed | 5mm/s to 0.5m/s |
| Mechanical Durability | 10,000,000 operations |
| Electrical Durability | 500,000 operations |
| Operating Temperature | -5°C to +65°C |
| Cable Connection | PG11 |

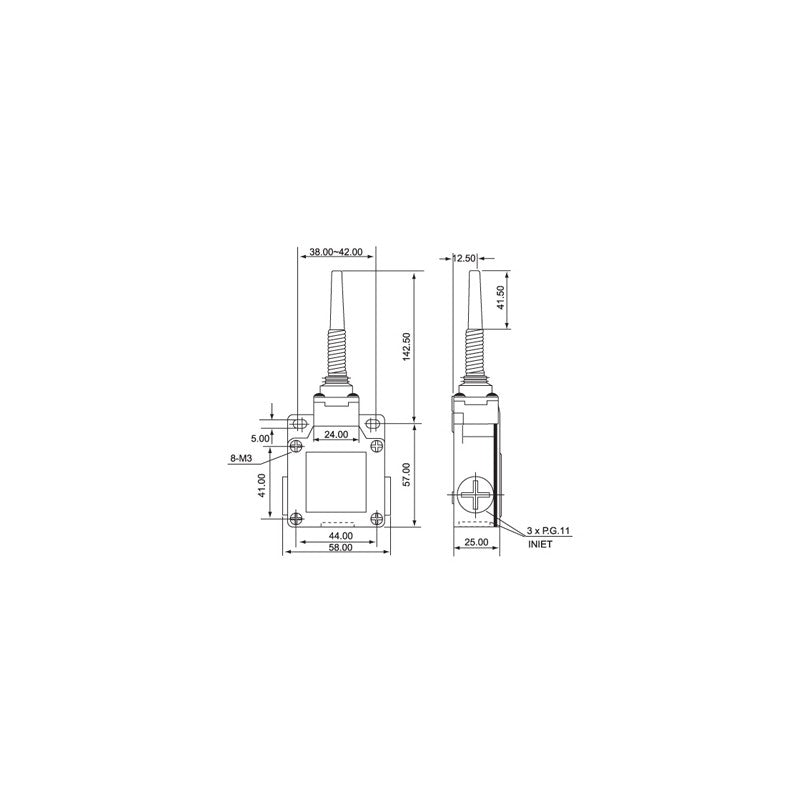

| Dimensions | 199.5 x 58 x 25 mm |
| Insulation Resistance | 100MΩ / 500V DC |
| Compliant Standards | EN50041, EN50047, IEC 337-1, VDE 0660 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. You have the right to return within 30 days of receipt. Delivery is fast via partner courier throughout Romania.
