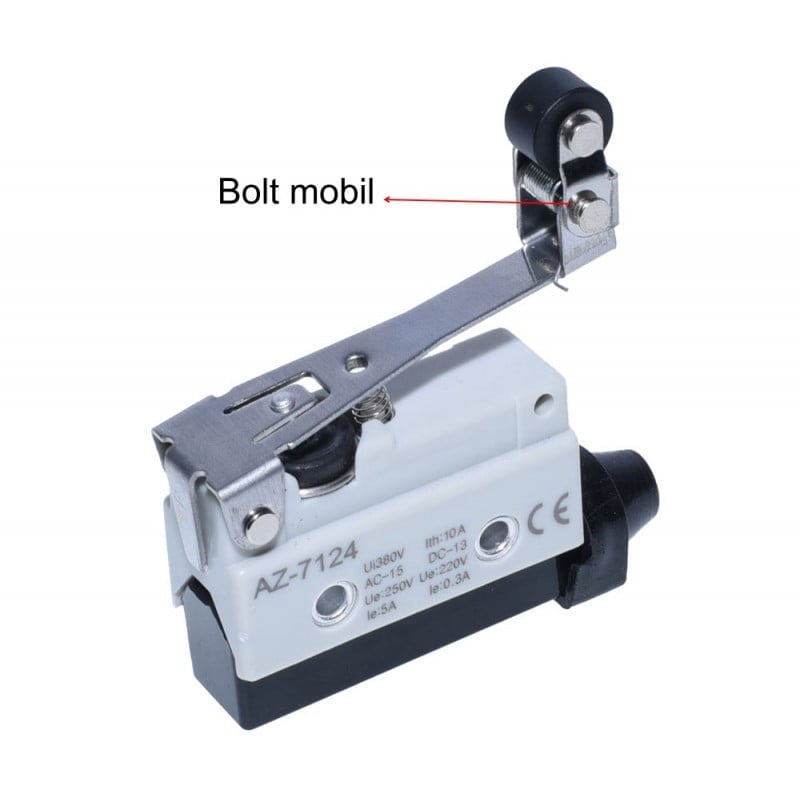

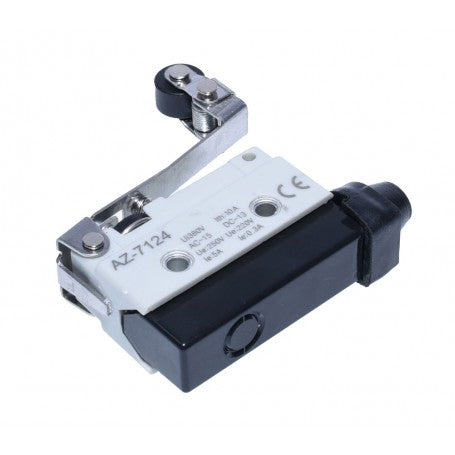

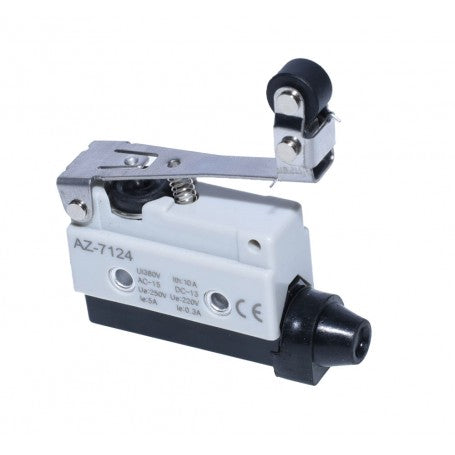

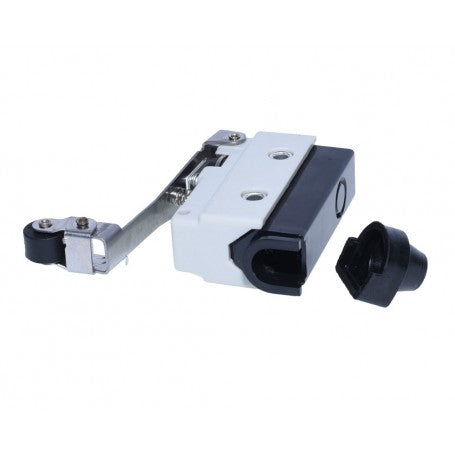

Limit Switch with Rod and Roller AZ 7124, 10A, Voltage 250V AC
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Limit switch with rod and roller for industrial automation
The AZ-7124 limit switch ensures precise control of automation systems and industrial equipment. Suitable for machine tools, garage doors, electric blinds, and production lines, it guarantees safety and reliability in operation. Robust construction with a flame-retardant plastic casing and durable metal mechanisms.
What you get with this product
- Precise control of end positions in automation - the movable roller detects mechanical contact and instantly stops the equipment
- Universal installation on any type of machine or mobile system - compact dimensions and multiple mounting points
- Resistance to intensive industrial use - flame-retardant ABS plastic housing and long-lasting metal components
- Compatible with standard mains voltage - operates at 250V AC without the need for transformers
- Adjustable lever with movable roller - flexible position detection from multiple angles and directions
- Increased safety through instantaneous action - immediately breaks the circuit on contact, preventing equipment damage
How it works and how to install it
The limit switch is mounted on the fixed surface of the equipment using the mounting holes in the housing. The lever with the movable roller is positioned on the trajectory of the movable element to be controlled. Upon contact, the roller rotates and mechanically actuates the switch, instantly interrupting the electrical circuit. Electrical connections are made according to the diagram marked on the housing, at the standard voltage of 250V AC. The product works without the need for additional adjustments after installation.
Frequently asked questions
Can I use this limit switch for an automatic garage door?
Yes, it is ideal for garage doors, detecting the fully open or closed position and automatically stopping the motor at the limit.
What does it mean that the roller is movable?
The roller can rotate freely on contact, allowing detection from any direction and reducing the mechanical wear of the switch.
Is it resistant to industrial conditions with dust and humidity?
The flame-retardant ABS plastic housing provides good protection for standard industrial environments, but it is not sealed for outdoor use or areas with extreme humidity.
Technical specifications
| Model | AZ-7124 |
| Supply voltage | 250V AC |
| Maximum current | 10A |
| Contact type | Lever with movable roller |
| Actuation mode | Instant by pressing |
| Lever length | 68 mm |
| Movable roller height | 26 mm |
| Overall dimensions | 53/68 x 32/67 x 20 mm |
| Housing material | Flame-retardant ABS plastic and metal |
| Product type | Standard |
| EAN | 0781499724393 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. The return policy allows returns within 30 days of purchase. Delivery is fast via national courier with SMS confirmation and online tracking.
