Professional COB LED 26mm, Power 3W
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

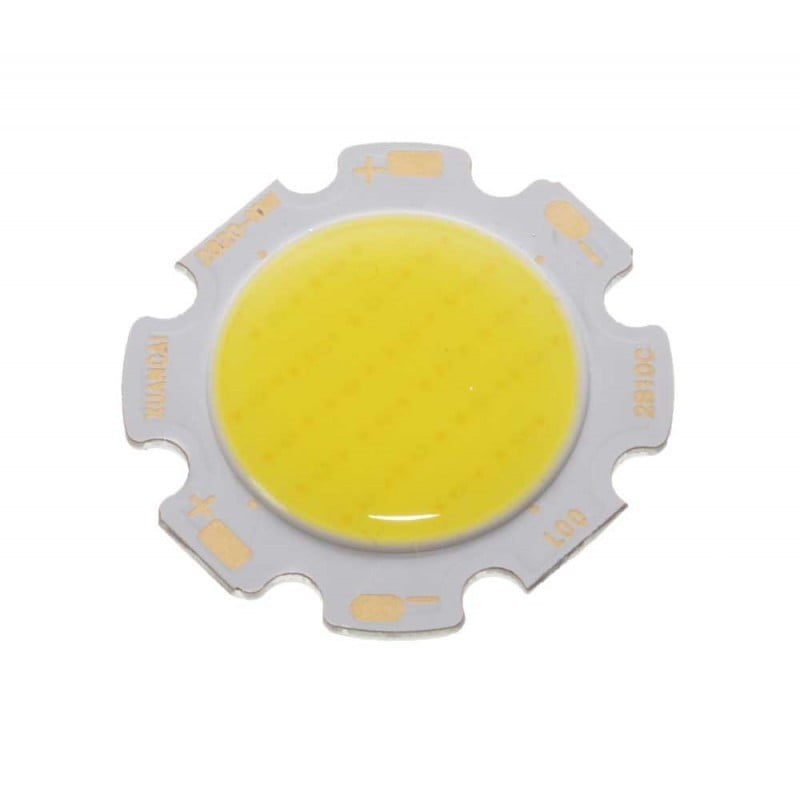

3W 26mm COB LED Chip for Lighting Projects
The professional 3W COB LED chip with a 26mm diameter offers a compact, uniform, and efficient light source, suitable for building or repairing lighting fixtures, illuminated signs, and custom lighting systems. COB technology integrates multiple light points into a single chip, eliminating the "spotting" effect and ensuring a homogeneous luminous flux of up to 390 lm with low energy consumption.
What you get with this product
- Uniform cool white light without spots or points — COB technology evenly distributes luminous flux across the entire 19mm chip surface
- High energy efficiency — up to 150 lm/W, meaning more light for the same consumption compared to classic LEDs
- Aluminum alloy heatsink included — uniform thermal dissipation through a circular design with slots, without rapid overheating
- Compatible with a wide range of projects — lighting fixtures, illuminated signs, display cases, and DIY prototypes
- Gel-protected chip — protective layer that reduces the risk of mechanical damage to the LED chip
- Simple connection with four contacts — two positive and two negative, clearly marked on the support to avoid polarity errors
How it works and how to install it
The 3W COB LED chip is powered by 9V DC with a current of 300mA via an appropriate LED driver — it should not be connected directly to the mains without a driver. Mounting is done on the included aluminum support, obligatorily using thermal paste between the chip and the heatsink, to ensure heat dissipation and optimal lifespan. Connections are made by soldering or clamps on the four polarity-marked pads, checking the power supply voltage beforehand.
Frequently Asked Questions
What driver do I need for this 3W COB LED?
You need an LED driver that supplies 9V DC at 300mA. A constant current driver of 300mA compatible with 3W power is the correct choice for stable operation and long lifespan.
Is the heatsink necessary, or can I mount the chip directly?
The heatsink is mandatory — high-power LEDs generate significant heat during operation. Without a heatsink and thermal paste, the chip overheats and deteriorates rapidly.
Can I use this COB LED outdoors or in wet areas?
No. The chip does not have moisture protection and is not recommended for direct mounting in wet environments or exposed to weather without an additional sealed enclosure.
Technical Specifications
| Supply Voltage | 9V DC |
| Current | 300 mA |
| Power | 3W |
| Color Temperature | 6000 - 6500K (cool white) |
| Luminous Flux | 350 - 390 lm |
| Luminous Efficiency | 140 - 150 lm/W |
| Color Rendering Index | Ra > 80 |
| Total Support Diameter | 26 mm |
| LED Chip Diameter | 19 mm |
| Thickness | 1 mm |
| Support Material | Aluminum alloy |
| Chip Protection | Gel |
| Power Contacts | 4 pads (2+ / 2-) |
| Package Contents | 1x 3W 26mm COB LED Chip |
| SKU | Q-20C036 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, with no justification required. Delivery is fast via courier, with shipping confirmation and package tracking available.
