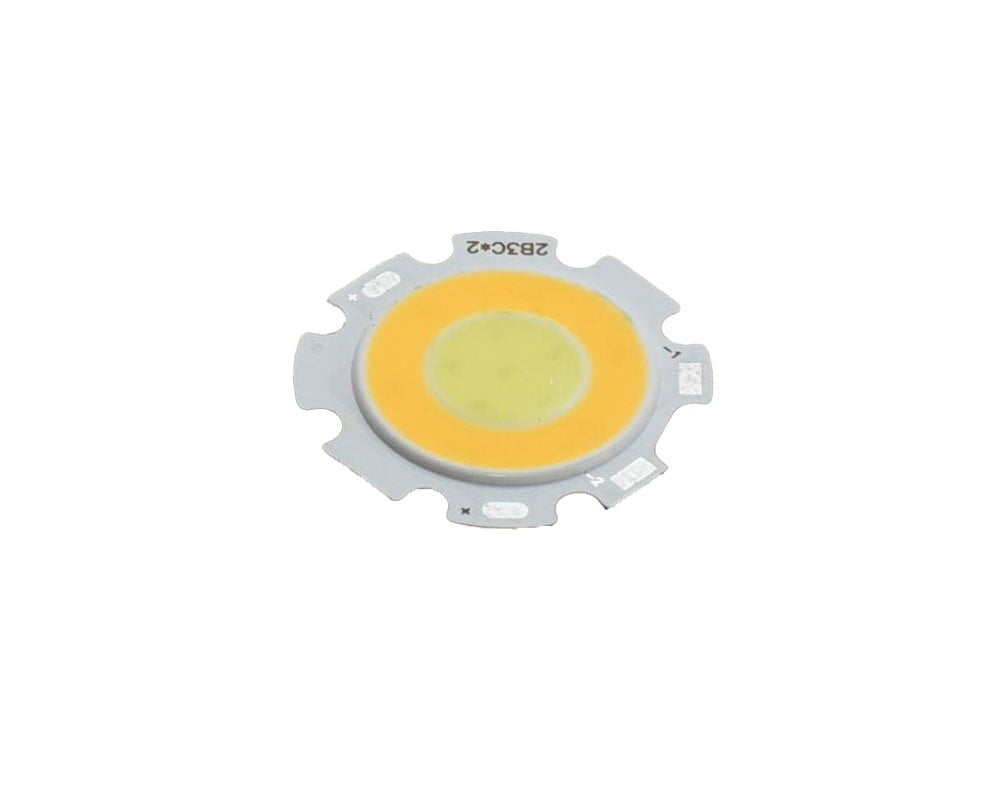

LED COB 28mm - 7W, Warm/Cool Light
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

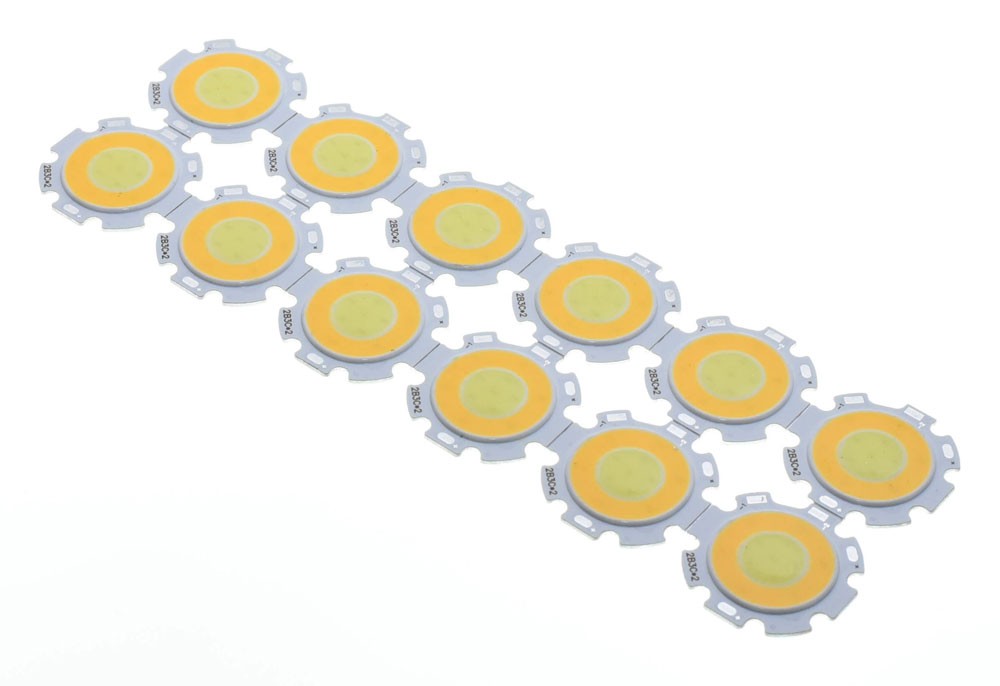

7W Dual-Color COB LED Chip for Lighting Projects
The 28mm 7W COB LED chip integrates two color temperatures on the same substrate — cool white (6000-6500K) and warm white — allowing them to be used independently or in combination. The injected COB technology ensures a homogeneous luminous flux of up to 770 lm, suitable for both DIY projects and professional lighting applications. The aluminum alloy substrate with radial fins dissipates heat uniformly, extending the component's lifespan.
What you get with this product
- Lighting flexibility — use cool white, warm white, or both simultaneously to achieve a neutral light without changing the component
- High luminous flux for its compact size — 700-770 lm from a 28mm chip, energy efficient at 100-110 lm/W
- Versatile mounting — the four power contacts (2+ and 2-) allow for simple integration into existing circuits or new projects
- Efficient thermal dissipation — the aluminum substrate with radial fins reduces the risk of overheating when thermal paste is applied
- Color Rendering Index (Ra) over 80 — illuminated colors appear natural and clear, useful in commercial or display applications
- Compatible with a wide range of applications — recessed spotlights, floodlights, light boxes, automotive lighting, boats, camping
How it works and how to install

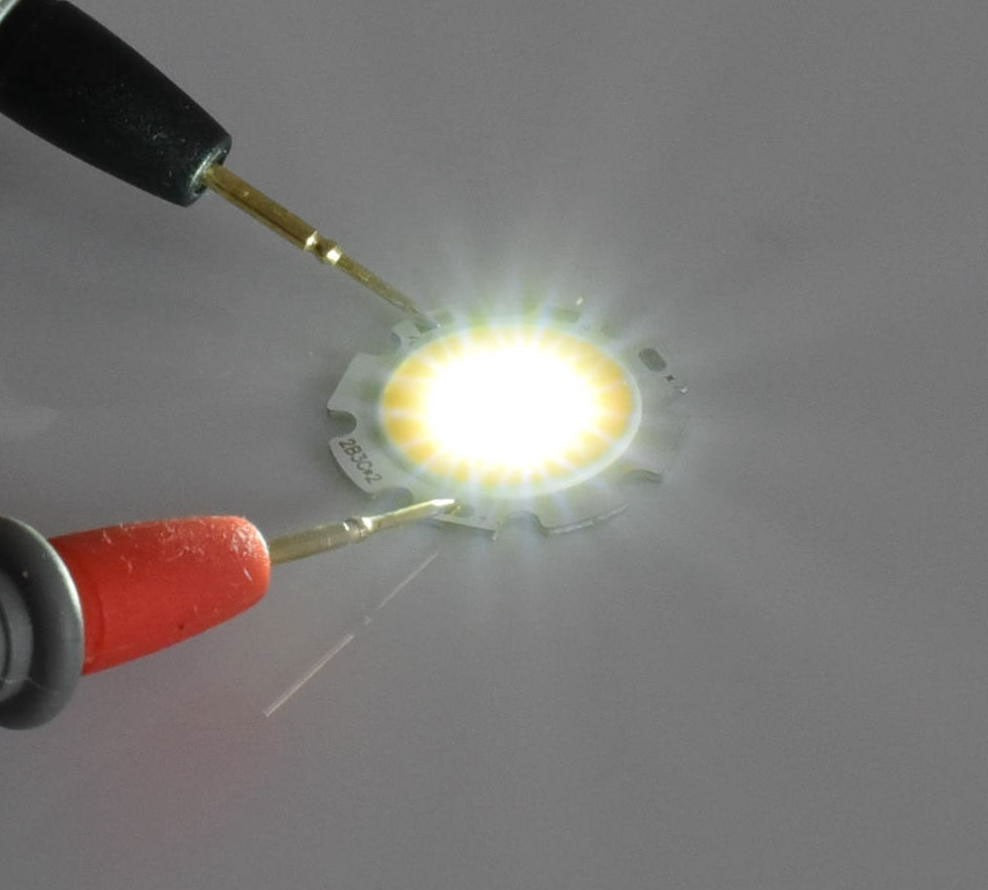

The 7W COB LED chip is powered by 21-22V DC with a current of 280-300mA via a compatible LED driver — it does not connect directly to the mains. Before mounting, apply a thin layer of thermal paste between the chip and the heatsink you are attaching to ensure proper heat transfer. Connect the positive and negative poles according to the markings on the substrate, observing the indicated polarity.
Frequently Asked Questions
Do I need a separate driver for this LED chip?
Yes, the chip requires an LED driver that supplies 21-22V DC at 280-300mA. It cannot be powered directly from 220V without a driver.
Can I use only one of the color temperatures, not both?

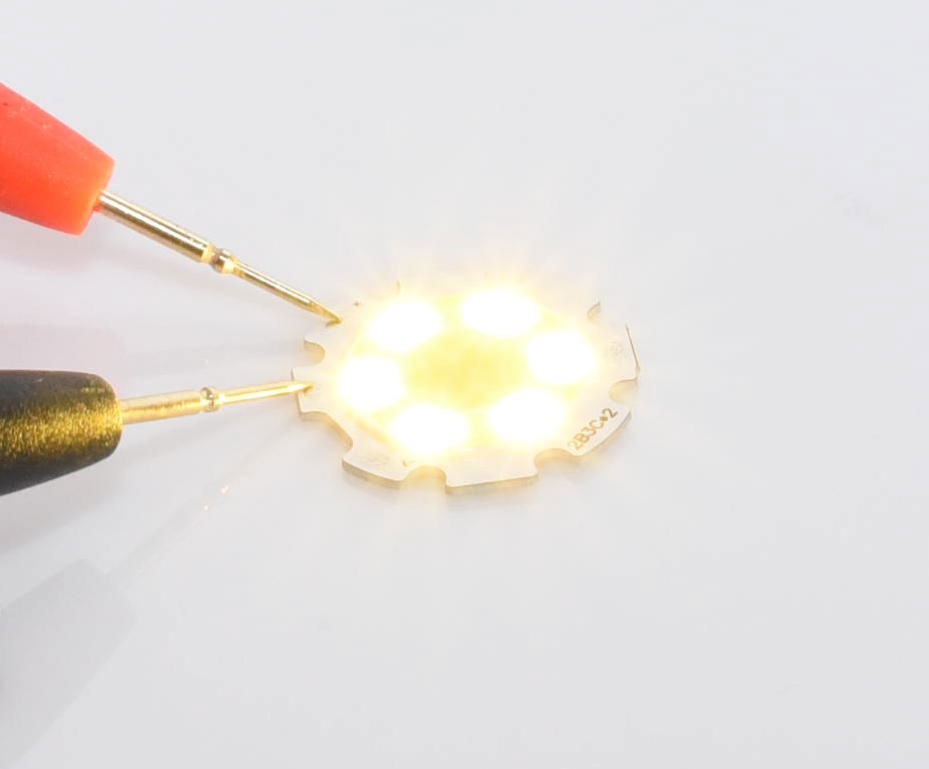

Yes, the two circuits are independent. You only connect the pair of contacts corresponding to the desired temperature — cool white or warm white — or both for neutral light.
Is thermal paste mandatory for installation?
It is mandatory. The 7W chip generates significant heat; without thermal paste and an adequate heatsink, its lifespan decreases dramatically and the risk of failure increases.
Technical Specifications
| Model | LED-H28-2B7C2 |
| Type | COB LED Chip 2 in 1 (Cool White + Warm White) |
| Power | 7W |
| Supply voltage | 21 - 22V DC |
| Current | 280 - 300mA |
| Color temperature | 6000 - 6500K (Cool White) / Warm White |
| Luminous flux | 700 - 770 lm |
| Luminous efficacy | 100 - 110 lm/W |
| Color Rendering Index (Ra) | > 80 |
| Chip size | 28 mm (diameter) |
| Thickness | 1.8 mm |

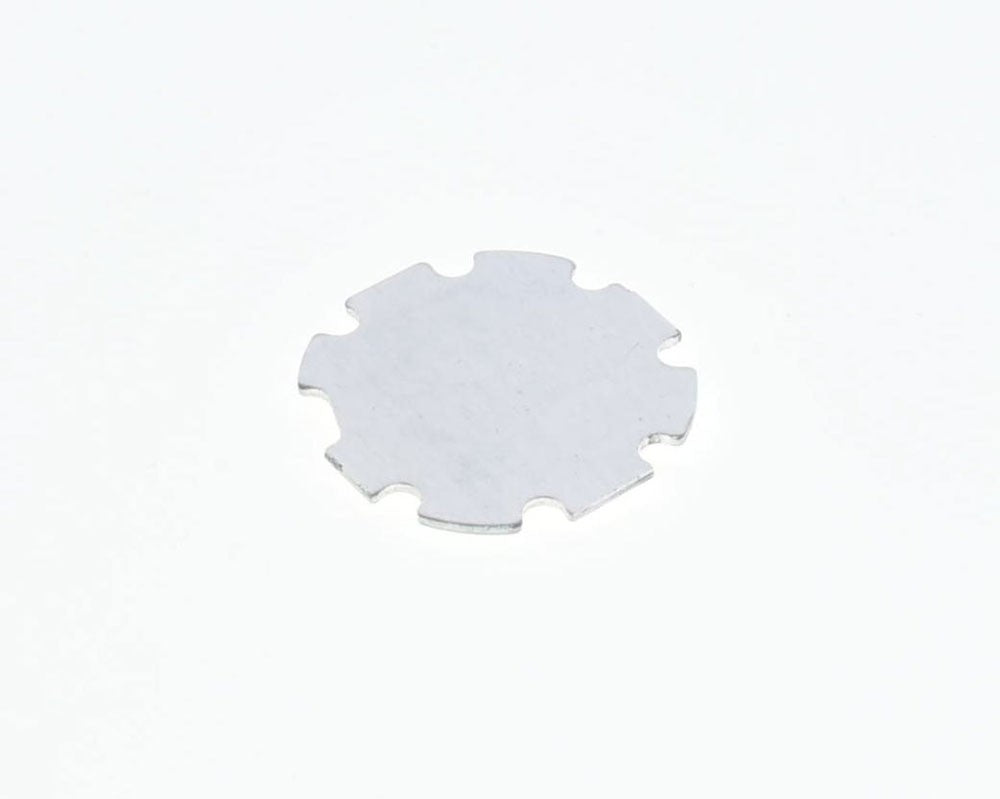

| Substrate | Aluminum alloy with radial fins |
| Power contacts | 4 (2+ and 2-) |
| Lifespan | up to 20,000 hours |
| SKU | Q-20C057 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days from the date of receipt, no justification required. Delivery is made by express courier throughout Romania.
