COB 61 Crane Type Switch
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Secure Control for Electric Hoist with Waterproof Buttons
This industrial COB 61 switch is the professional solution for controlling electric hoists, automatic gates, and motors with an up-down system. Its IP65 waterproof casing and ergonomic buttons ensure reliable operation in wet environments, garages, or workshops. Complete kit with mounting accessories, ready for installation on any electrical system up to 500V.
What you get with this product
- Precise dual-direction control for hoist or electric gate — separate UP and DOWN buttons for safe operation
- Complete protection against humidity and dust — IP65 casing resists direct splashing, works in difficult conditions
- Quick installation without complex modifications — kit includes rubberized cable protection sleeve and fixing screws, installation in under 20 minutes
- Industrial durability for intensive use — contacts rated for 250V 5A AC, supports repeated switching cycles
- Maximum application versatility — compatible with electric motors for hoists, automatic gates, industrial roller blinds, or ventilation systems
- Clear visibility in any light — industrial orange casing and marked inscriptions on buttons for quick command identification
How it works and how to install it
The switch contains two push-button contacts, each activating a direction of movement — UP for raising and DOWN for lowering. You connect the four poles to the electric motor according to the diagram included in the package, fix the base with the provided screws, and pass the cable through the protective sleeve. The buttons actuate the internal contacts only as long as you hold them down, and upon release, the circuit automatically breaks, providing total control over the movement.
Frequently Asked Questions
Will the switch withstand rain if I mount it outdoors?
Yes, the IP65 protection ensures resistance to water jets and direct splashing, being designed for use in wet or uncovered environments.
Can I connect a 220V motor directly to this switch?
Yes, the switch supports 250V AC and 5A current, compatible with most medium-power single-phase motors for hoists or gates.
What happens if I hold the button down for a longer time?
The contact remains closed as long as you hold the button down, allowing continuous motor operation until the command is released.
Technical Specifications
| Model | COB 61 Push Button Switch |
| Rated Voltage | AC 250V / 500V |
| Rated Current | 5A at 250V AC / 2A at 500V AC |
| Number of Buttons | 2 (UP and DOWN) |
| Contact Type | Momentary push-button |
| Protection Degree | IP65 waterproof |
| Housing Material | Shock-resistant ABS |
| Dimensions | 127 x 60 x 45 mm |
| Weight | 206 g |

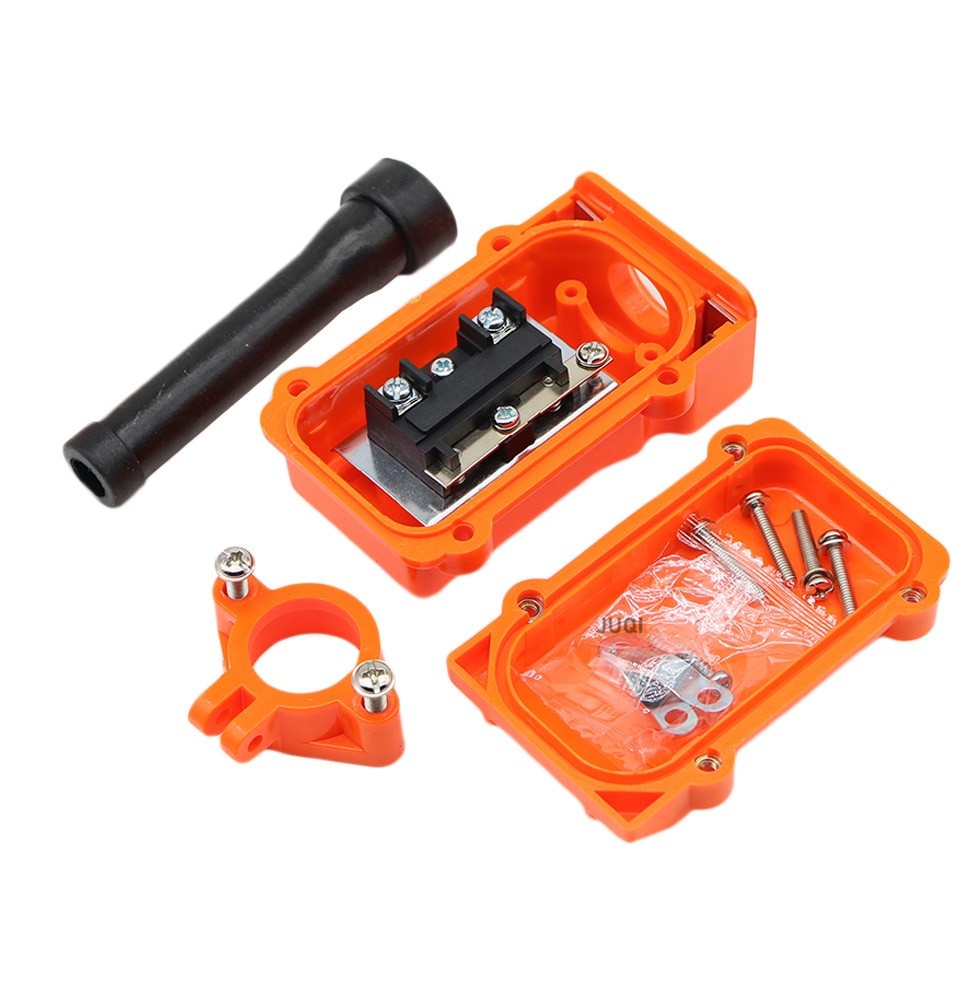

| Included Accessories | Rubberized cable protection sleeve, fixing screws, mounting clamp |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. Right of return within 30 days of purchase, without justification. Fast delivery by national courier with telephone confirmation.
