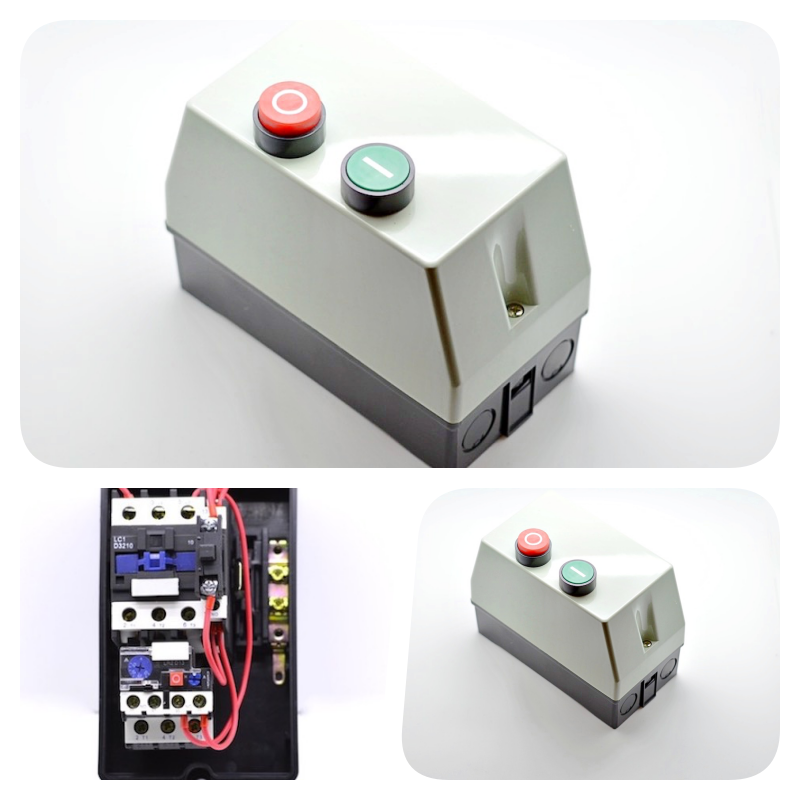

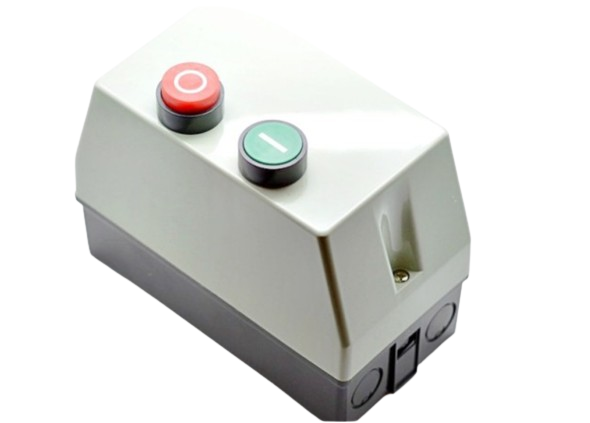

Motor Switch with Contactor, LC1/D3210, Protection Relay, 25A
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
Industrial Motor Starter with Thermal Protection 25A
Controls and protects electric motors up to 25A with a safe start/stop system via LC1/D3210 contactor. Ideal for workshops, industrial machinery, and automation systems requiring reliable control and overload protection. Robust ABS casing and metallic components ensure durability in demanding work environments.
What you get with this product
- Complete motor protection through integrated thermal relay — prevents burnout from overload or short circuit
- Quick start and stop via dedicated buttons — red for stop, green for start, clear visibility in all conditions
- Direct installation on DIN rail or wall — screw mounting, compatible with standard electrical panels
- Vibration and shock resistant construction — ABS casing with metallic components for intensive industrial use
- Extended compatibility with LE1D systems — easily integrate into existing installations without major modifications
- Rated current 25A AC-3 — sufficient for three-phase motors up to 11 kW at 400V
How it works and how to install
The starter connects between the power source and the motor, with the control circuit operating at 230V AC. Pressing the green button activates the contactor and starts the motor, while the red button immediately cuts off power. The thermal relay continuously monitors the current and automatically interrupts the circuit if it detects an overload. Mounting is done by screw fixing on a DIN rail or directly on the wall, with ISO20 cable entries at the top and bottom for simple connection. Requires connection by an authorized electrician in accordance with safety regulations.
Frequently Asked Questions
Can it be used for single-phase motors or only three-phase?
The product is designed for three-phase motors, but can also be adapted for single-phase by appropriate wiring; consult an electrician for the connection diagram.
What happens if the motor stalls or draws too much current?
The thermal relay automatically detects the current increase and cuts off power before the motor or installation is damaged, then needs to be reset manually.
Can I install this starter myself or do I need an electrician?
Installation requires knowledge of industrial electricity and compliance with safety standards; it is recommended to call an authorized electrician for correct and safe connection.
Technical Specifications
| Rated operational current | 25 A AC-3 |
| Conventional thermal current | 25 A |
| Control circuit voltage | 230 V AC 50/60 Hz |
| Contactor type | LC1/D3210 |
| Compatibility code | LE1D |
| Housing material | ABS, Metal |
| Mounting type | Screw, DIN rail |
| Cable entries | 2x ISO20 top, 2x ISO20 bottom |
| Package contents | 1x motor starter with contactor |
Warranty and Support
The product comes with a 24-month warranty in accordance with Romanian legislation, covering manufacturing defects. 30-day return policy from receipt. Fast delivery via courier with tracking throughout the country.
